Pemko #18061MS Meeting Stile, .75" Aluminum Casing with .625" Brush Seal

These meeting stiles are comprised of a dense row of type 6 nylon bristles that will create a seal between doors to block out smoke, fire and air infiltration. It is designed to be surface applied to a pair of double active doors. Available in various aluminum anodized finishes and is custom cut to size.

PRICED PER FOOT.

Note, if being purchased for both doors, select quantity '2' or as needed.

See tabs below for additional information
    • SKU
      PK18061CNB_MS
    • Market price:$10.20
      • save 10%
    • Starting price: Price: $9.18 per foot

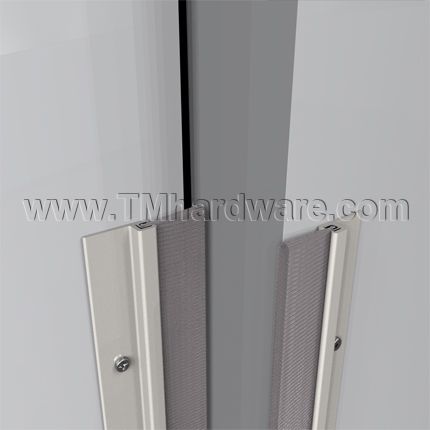

    This high quality meeting stile is designed to be surface applied to the face of double active doors. It is effective in sealing a gap of up to 1.18" between the two doors. The meeting stile is comprised of a dense row of type 6 nylon filaments that will create a barrier against fire, smoke and air infiltration. The casing is crafted from high quality anodized aluminum, which ensures that it blends unobtrusively into the face of the door.

    Installation screws provided. Screws are colored to coordinate with casing.

    Reminder, if being purchased for two doors, select quantity '2', or as needed.

    Note, Gray insert is provided for Clear Anodized product. Black in supplied for all other finishes. However, black or gray can be supplied for all finishes upon request, contact us or call us to place request.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    For meeting stile designed to seal smaller gaps, see our Fire and Smoke Nylon Brush 3/8".

    This product can be applied as a Fire and Smoke Nylon Brush Door Bottom Sweep.

      • SKU
        PK18061CNB_MS
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      18061_MS
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Nylon Brush
      • Door Type
        Double Active Doors
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        5/8"
      • Total Height
        1-3/8"
      • Width
        1/4"
      • Size (Feet)
        Custom Cut to Size
    • Installation
      • Installation Screws
        Installation screws provided
    • Finishes
      • Finish
        Clear Aluminum Anodized (US28), Dark Bronze Aluminum (US10B), Gold Aluminum (US4), Satin Nickel Aluminum (US15), Flat Black (US19)
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, BHMA Certified, UL Classified
      • ANSI Designation
        R3A734
      • Warranty
        5 Year Limited Warranty

    Click to Print

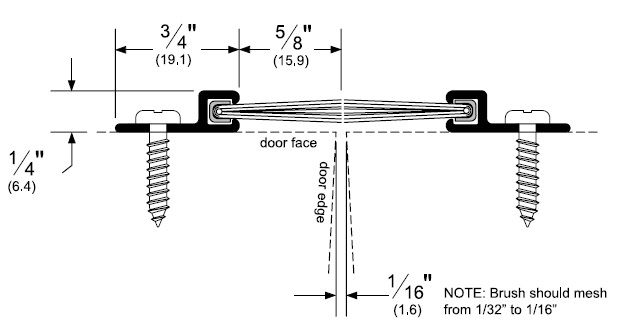

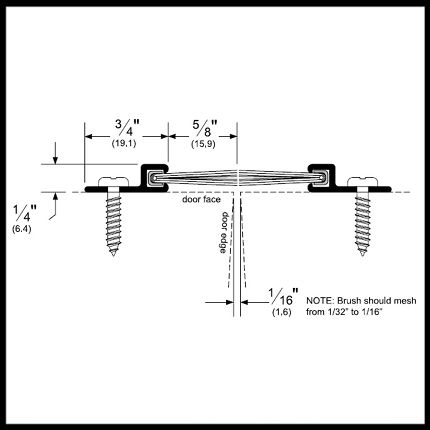

    P18061MS Product Specs:


    Finishes Comply with the Following ANSI / BHMA Codes:
    • Clear Anodized Aluminum - US28 / 628
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688
    • Satin Nickel Anodized Aluminum - US15 / 619
