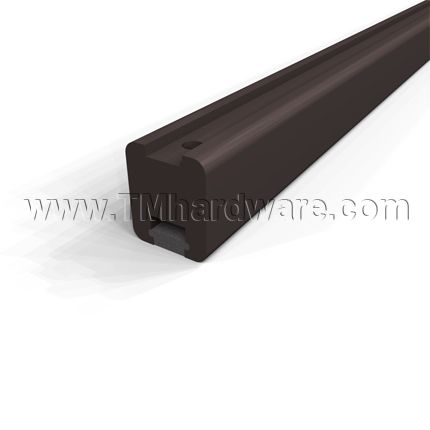

Zero #38 Meeting Stile, Aluminum with Solid Neoprene Insert, Mortised

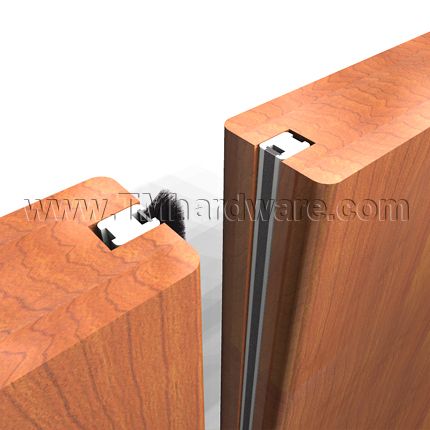

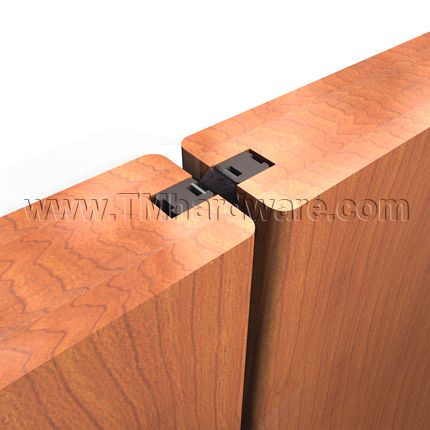

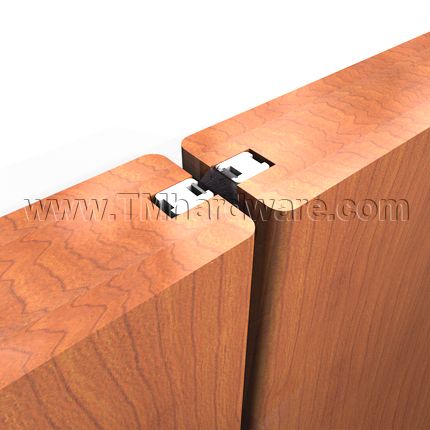

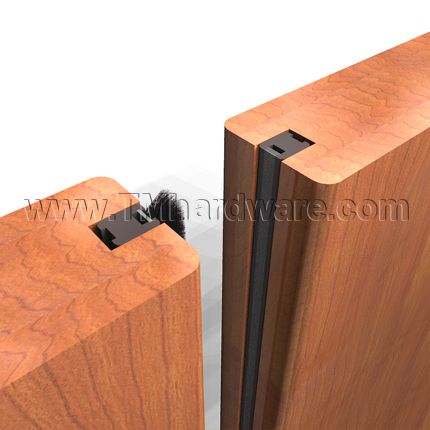

This Zero #38 mortised aluminum and neoprene meeting stile for double active doors is designed to be used in conjunction with a corresponding pile brush or neoprene astragal (see applications tab). This insert can be installed to extend beyond the door edge to aid in gap closure and lend symmetry to the doorway. Available in various anodized aluminum finishes and is custom cut to size.

SOLD BY THE FOOT

See tabs below for additional information

Finish
Length

Quantity

Add to compare

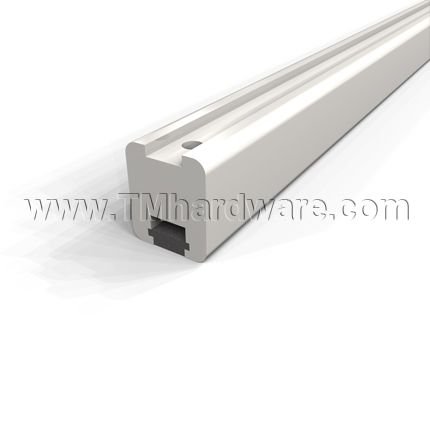

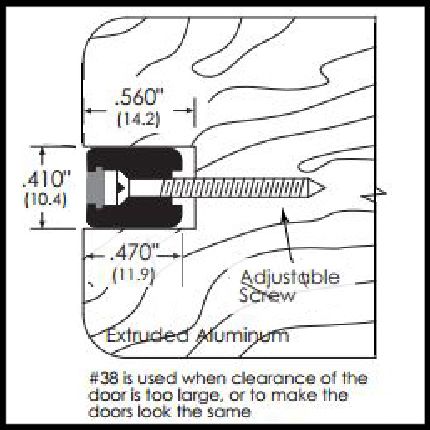

This meeting stile has a strong .460” X .380” extruded aluminum base which supports a high quality, solid neoprene insert. It is designed to be used in conjunction with a corresponding pile brush or neoprene astragal (see applications tab). The adjustable screw permits it to be installed to extend beyond the door edge to aid in gap closure when clearance of the doors is too large. This prevents sound from leaking in or out of a room, it provides a weather seal, ensures privacy, and minimizes the passage of light between the doors. It also lends symmetry to the doorway by making the doors look the same.

Its mortised application, allows the door to maintain a clean, unobtrusive appearance, making it an optimal choice for high-end designer doors and luxury hotels and condos. Recommended installation space is .560” depth and .380” width.

Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. This product has been anodized to 204 (dipped four times).

Installation screws provided. Screws are colored to blend unobtrusively into casing.

Corresponding Meeting Stiles:

Meeting Stile, Aluminum With .3" Pile Brush and Fin Seal, Mortised

Meeting Stile, Aluminum with Lip-Shaped Seal, Mortised

Meeting Stile, Aluminum with Extruded Bulb Finger, Mortised

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship. Click here to view our full Warranty Policy.

Check out our other Mortised Meeting Stiles.

- SKU
  ZR38AA
QuickShip
No
Manufacturer
Zero International
MPN
38
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Neoprene
- Door Type
  Double Active Doors
- Mounting
  Fully Mortised
Dimensions
- Total Height
  .410"
- Width
  .560"
Finishes
- Finish

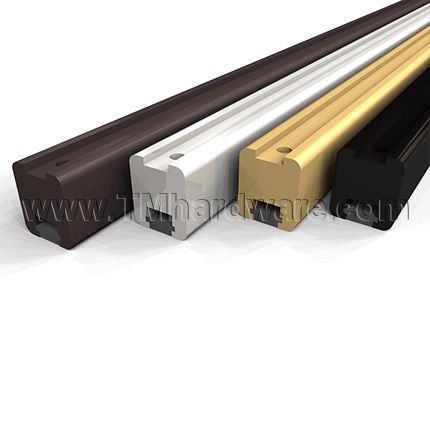

  Black Anodized Aluminum (315), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
Compliance Details
- Warranty
  1 Year Limited Warranty

Click to Print.

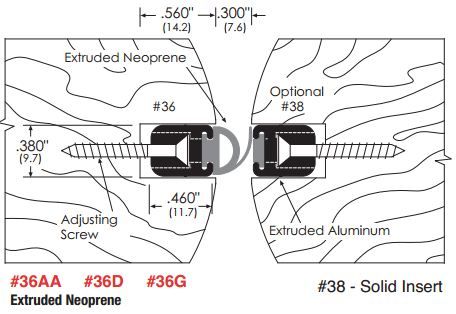

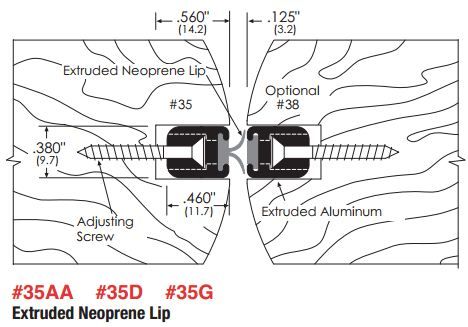

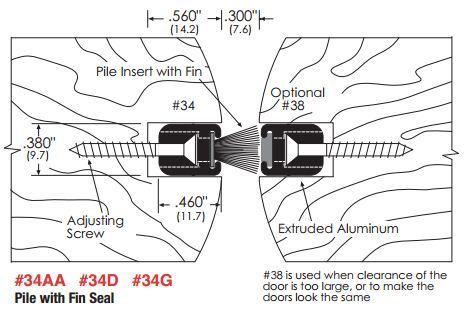

Applications for Product Z38
