Pemko #369S Meeting Stile, Rubber Seal, Surface or Mortised, .406" W

Stop unwanted drafts, dirt, insects, light, and sound from infiltrating past your doors with this easy-to-install meeting stile. A strong aluminum housing, equipped with a durable rubber seal of your choice, can seal the gap between a pair of doors to decrease energy waste and help you save money on utility bills. Choose from silicone or Eco-V (vinyl) rubber seals, and metal housing is available in various aluminum finishes. Fire, smoke, and air infiltration rated and custom cut to size.

PRICED BY THE FOOT

How to Order: If required for both doors select 'quantity 2' or as needed.

See tabs below for additional information
    • SKU
      PK369AV
    • Market price:$11.28
      • save 15%
    • Starting price: Price: $9.59 per foot

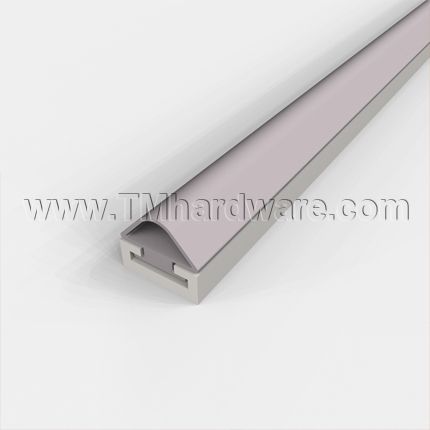

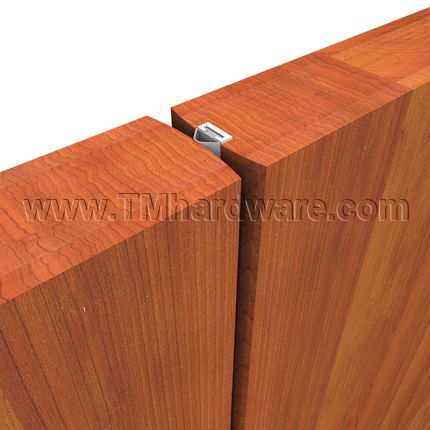

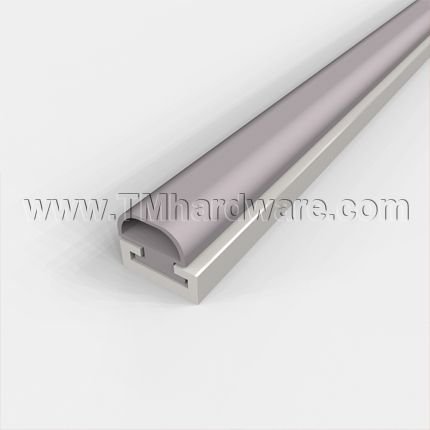

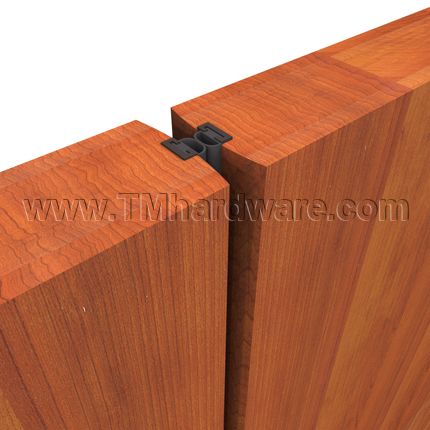

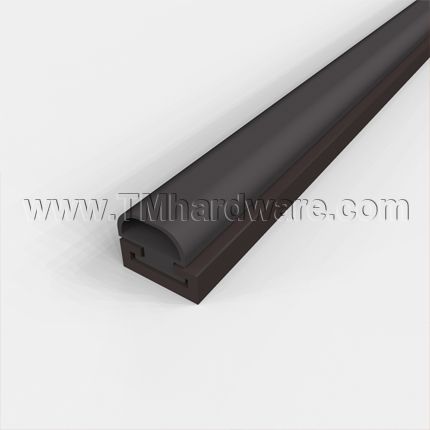

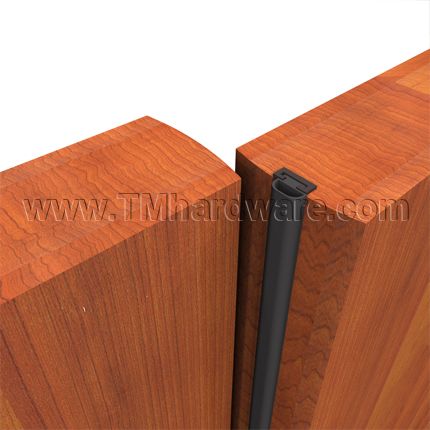

    This aluminum and rubber bulb seal meeting stile can be surface mounted or mortised to one or both of the faces of a pair of double doors. Closing the gap between doors reduces energy waste and halts the passage of drafts, dirt, insects, light, and sound past your doors.

    Ratings: Meeting Stiles with a fire rating may be mounted on pairs of doors that has a gap which meets the requirements of NFPA 80, 2-5.4.

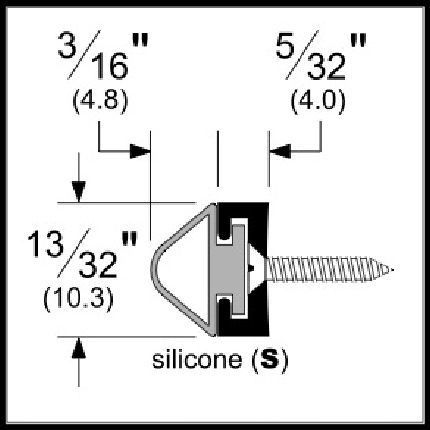

    Dimensions: Meeting Stile has a width of .406”. The aluminum housing with a silicone or PemkoPrene Seal has a depth of .344", and with the vinyl seal the depth is .3125" (see product specs for all measurements). For a mortised application, a .156” mortise can be carved in the door for the aluminum housing.

    Seal Options: This model is available with Silicone or Eco-V (Vinyl) inserts. Silicone has inherent resistance to harsh environments, is generally nonreactive, stable, and resistant to extreme environments and temperatures. Eco-V™ is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See 'Insert Material' tab for more details.

    Note: These meeting stile seals do not work well on beveled-edge pairs of doors.

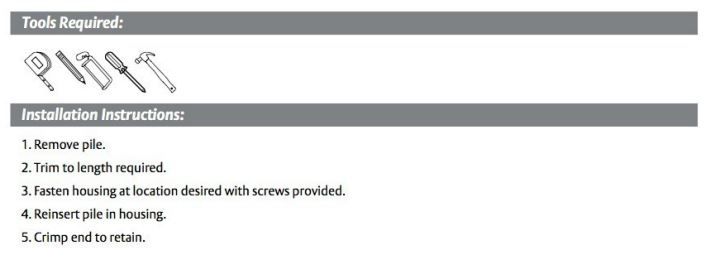

    Installation Guide and screws provided. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click to view our Full Warranty Policy.

    For another mortised meeting stile, please see our Mortised Track Meeting Stile with EPDM Seal.

      • SKU
        PK369AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      369_S, 369_V, 369_PK
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Silicone, Eco-V (Vinyl)
      • Door Type
        Double Active Doors
      • Mounting
        Surface Mounted, Fully Mortised
      • Temperature Range
        -4°F to +122°F (Vinyl)
        -100° to +250°C (Silicone)
    • Dimensions
      • Total Height
        5/16"
      • Width
        13/32"
    • Finishes
      • Finish

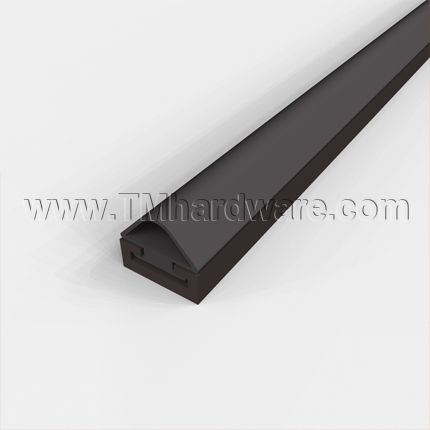

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified
      • Warranty
        5 Year Limited Warranty

    Click to Print

                        Silicone Seal                                                               Vinyl Seal

    Click to View Ratings Explained

    * GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.

    Finishes Comply with the Following ANSI / BHMA Codes:

    • Clear Anodized Aluminum - US28 / 628
    • Bronze Mill Finish (Brass) - US4 / 720
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688

    This product can be purchased with the following rubber seals: Silicone or Vinyl Insert.

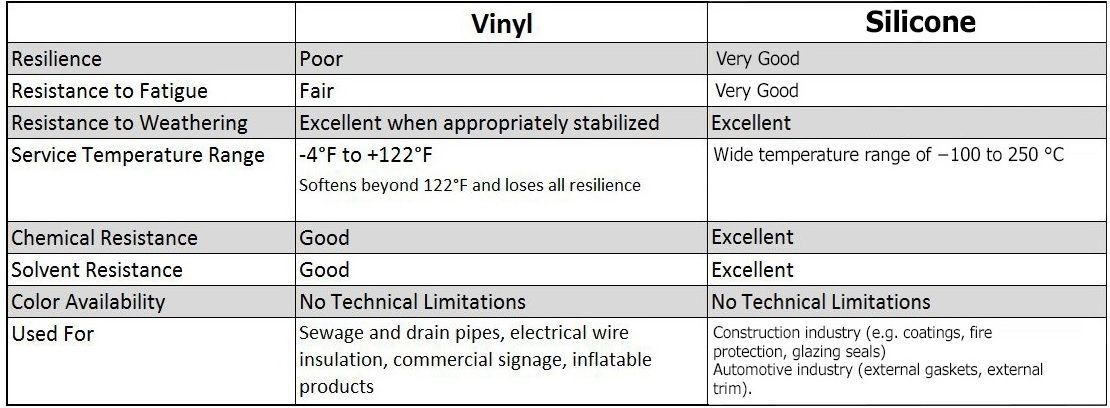

    rubber seals chart for Pemko 369

    Silicone Rubber: A family of high performance synthetic materials, part mineral and part organic. In the manufacturing process, extrusions may be either solid or foamed with an integral protective skin. This material is capable of being formulated into a wide variety of compounds in varying hardnesses with inherent resistance to harsh environments. Silicone rubber is generally nonreactive, stable, and resistant to extreme environments and temperatures. It does not become brittle and hard in the cold or very soft in the heat. This material has excellent resistance to sunlight, weather, ozone, oxidization, and water and to flame.

    Eco-V (Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.
