Pemko #352 Meeting Stile, Aluminum ‘T’ Casing with Neoprene Seal for Reverse Beveled Door
This items has been discontinued.
For a similar item, see our Pemko #355 Meeting Stile.
This surface mounted meeting stile for single active double doors seals the gap between a pair of doors from the infiltration of fire, smoke, sound, light, drafts and insects. This is accomplished through the compression of the seal, which is installed on one of the doors, against the face of the other door.

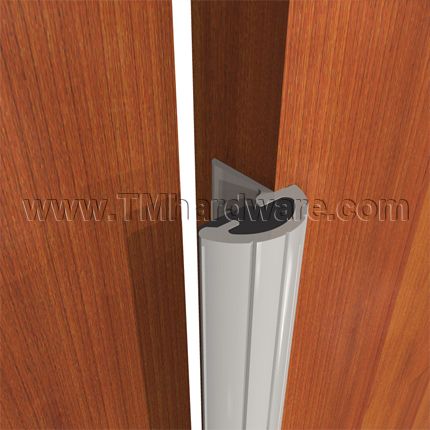

Installation: For use on reverse bevel doors. Meeting Stile is ‘T’ shaped, with the leg designed to be screwed into the door edge (between the two doors) with seal extending over the other door (see product specs). Apply to the active door’s edge for out-swinging doors. Apply to the inactive door’s edge for in-swinging doors. This creates a continuous seal that will not impede on proper operation of the doors.
Seal: This meeting stile has a sponge neoprene seal. This material has good chemical stability and maintains flexibility over a wide range of temperatures. It does not become brittle and hard in the cold or very soft in the heat. Neoprene shows good resistance to sunlight, ozone, oxidization, and water.
Compliance: The seal is fire rated. When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.

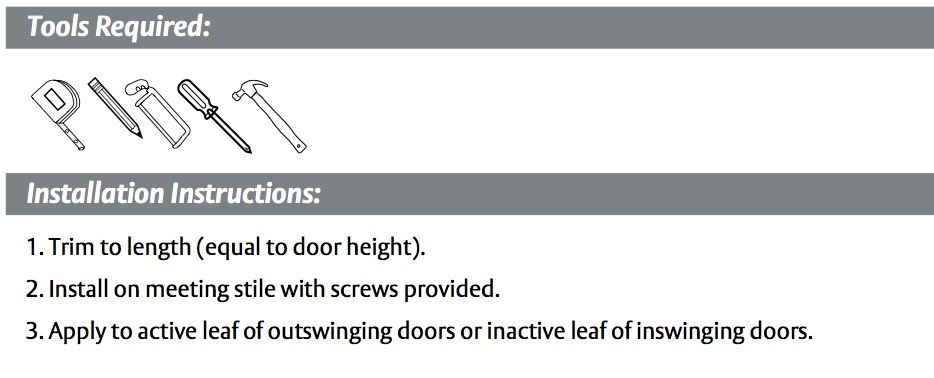

Installation Instructions and screws provided. Screws are colored to blend unobtrusively into casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
We carry other ‘T’ Shaped Meeting Stiles. See our Meeting Stile, Aluminum or Bronze 'T' Casing with Brush or Rubber Seal.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN352
- About This Product
-

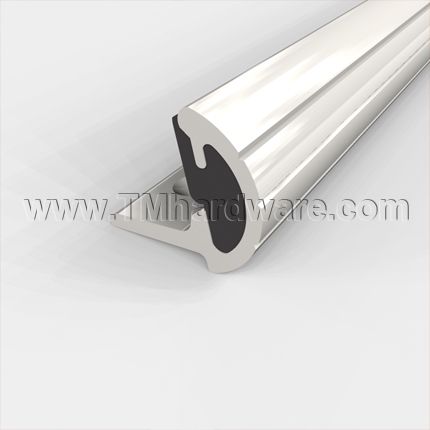

Retainer MaterialAluminum
-
Seal TypeNeoprene
-
Door TypeSingle active door in a double door set
-
MountingSurface Mounted
-

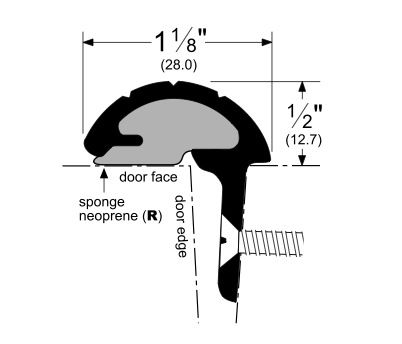

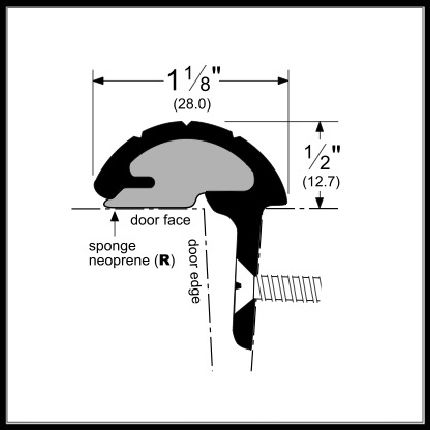

- Dimensions
-
Total Height1-1/8"
-
Width1/2"
-
- Finishes
-

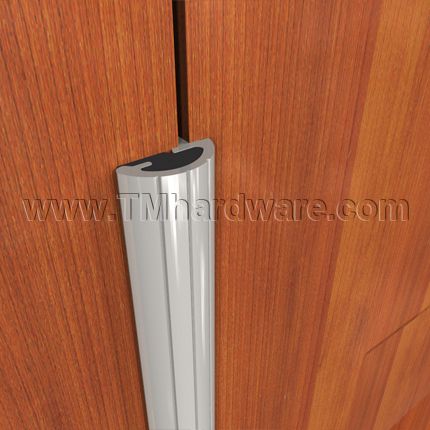

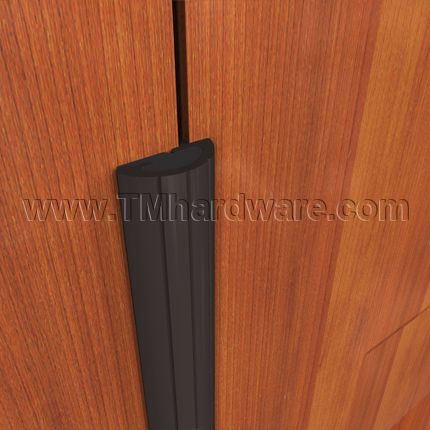

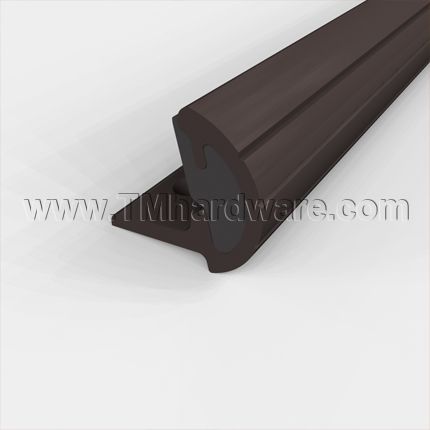

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsFire Rated, UL Classified
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
- Gold Anodized Aluminum - US4 / 688
