Pemko #257x259 Modular Ramp Edge and End Set, .5" Offset with 12" Length
Modular Ramps are designed to correct floor offsets and ease movement for those with limited mobility. This ramp set is comprised of high quality Ramp Edge and Ramp End, which combines to form a 12" ramp with top plate, that corrects offsets of .5". Ramp components can be purchased separately or as a full set, select from options below. Available in many finishes and is custom cut to size.
PRICED PER FOOT
Modular Ramps are designed to correct floor offsets and ease movement for those with limited mobility. The saddle is grooved to ensure a stronger grip and prevent slipping

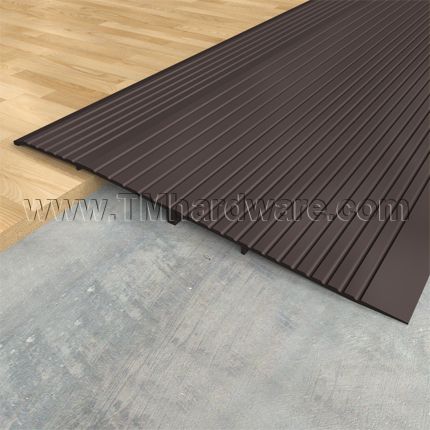

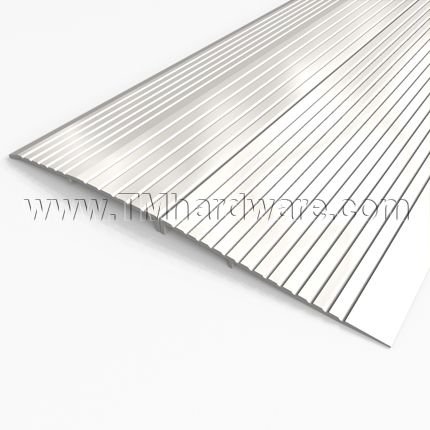

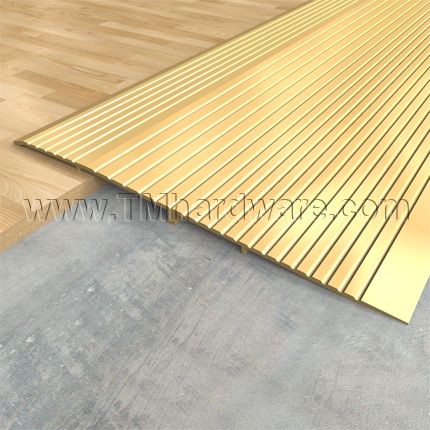

Ramp Components: This ramp set is comprised of high quality Ramp Edge and Ramp End, which combines to form a 12" ramp with top plate, that corrects offsets of .5". The top plate is raised .25" off the ground. The ramp components are not welded together, upon installation they should be applied abutted against each other and screwed into place.

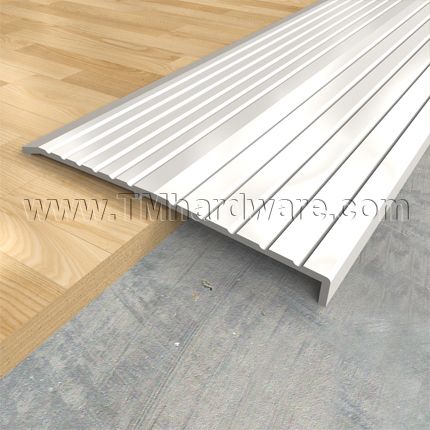

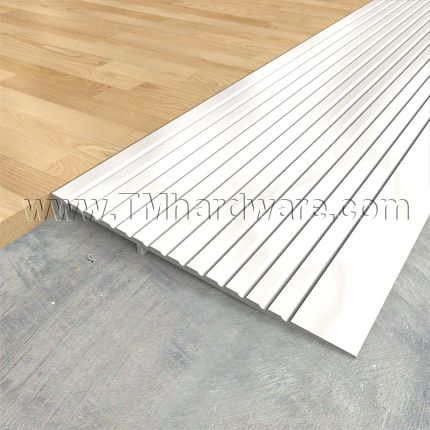

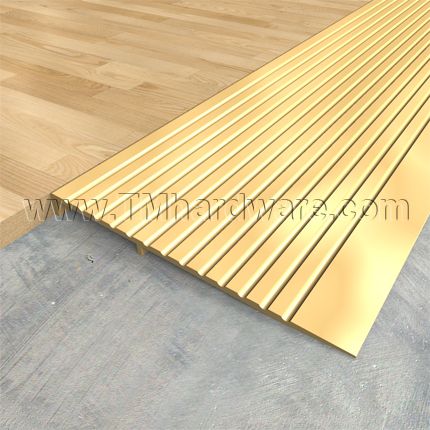

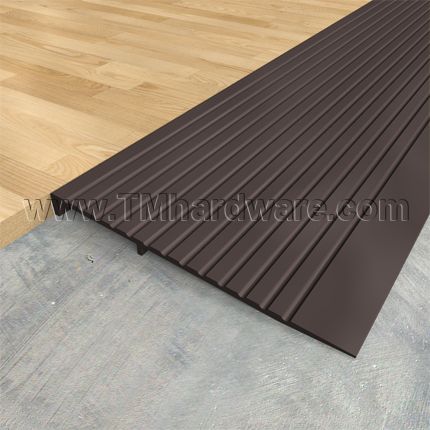

Ramp Edge and Ends can be purchased separately. When used separately, the Ramp Edge (#P257) is ideal for ledge protection or can be applied with an abutted 1:12 concrete slope. The Ramp End (#P259) can be used as an ADA Compliant ramp without a top plate, see Product Specs for visual presentation.
Compliance: The ramp is ADA Compliant / Wheelchair compatible in specific conditions, see Product Specs tab for more details.
Widths Available: Standard widths can be purchased through our website. Widths up to 185" can be purchased through our office. Please contact us or call us at 845-388-1300 for details and pricing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and defects.
Click here to view our Full Warranty Policy.
Click here to view all our Modular Ramps with Top Plates.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN257x259, 257, 259
-
ComponentFull Combined Ramp (#257x259), Ramp Edge (#257), Ramp End (#259)
- Dimensions
-
Offset Height.5" Height
-
Width6" Width
-
LengthCustom Cut to Size
-
Top Plate6" Top Plate
-
Long Top Plate Specifics6" Top Plate is designed for offsets of .5". It has a total height of .75"
-
- Ramp Design
-
MaterialAluminum
-
Ramp ComponentRamp Edge, Ramp End
-
Ramp TypeTop Plate Application
-
InstallationInstallation screws provided.
-
DrillingDrill holes are provided
-
- Finishes
-

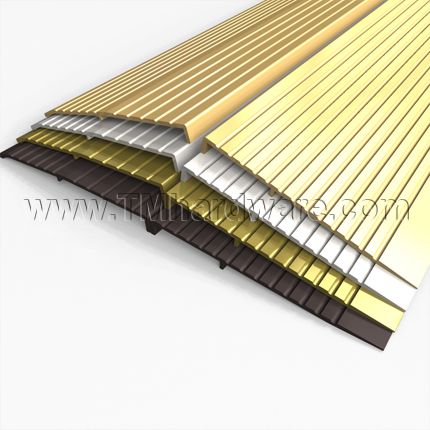

FinishMill Finish Aluminum (US27), Oil Rubbed Bronze, Equiv. (10BE), Black Suede Powder Coat, White Suede Powder Coat
-
- Compliance Details
-
Compliance DetailsADA Compliant, BHMA Certified
-
Warranty5 Year Limited Warranty
-

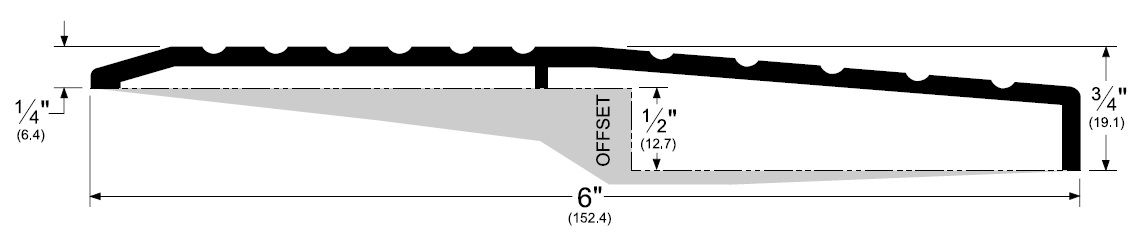

P257x259 Product Specs:

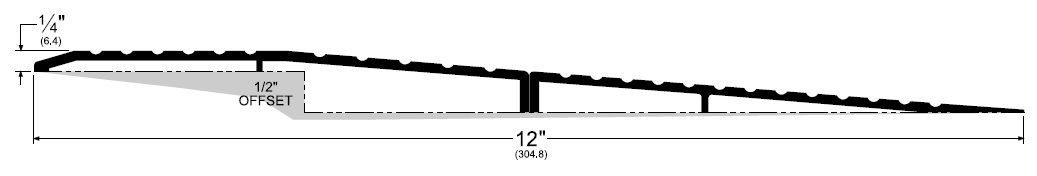

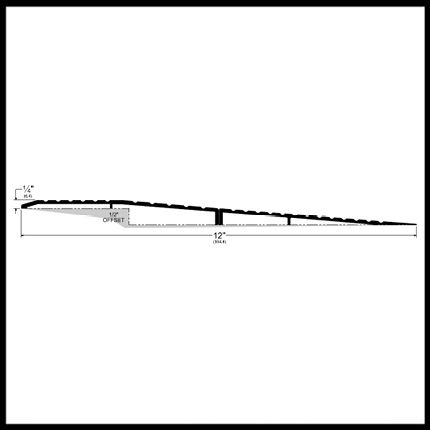

Full Combined Threshold (#P257x259):
Ramp Edge Component (#P257):

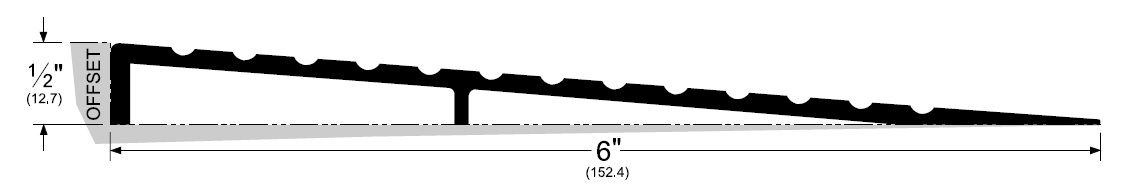

Ramp End Component (#P259):
Click to View Ratings Explained
*Note regarding ADA Compliance:
- Ramps are not ADA Compliant when used at door openings.
- Ramp Edge (#P257) is not ADA Compliant when used alone.
