Pemko #R1.5OS Modular Ramp with Top Plate, Aluminum 1.5" Height, 21.75" Length

Pemko #R1.5OS Modular Ramp with Top Plate, Aluminum 1.5" Height, 21.75" Length
Pemko Manufacturing

Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. This ramp compensates for a 1.5" floor offset and has a top plate to ensure a smooth transition. Available in high quality Aluminum or Aluminum PemKote™ Non-Slip surface and optional, though recommended, Miter Returns (see below).

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PKR1.5OSSA
    • Market price:$430.83
      • save 15%
    • Starting price: Price: $366.21 per foot

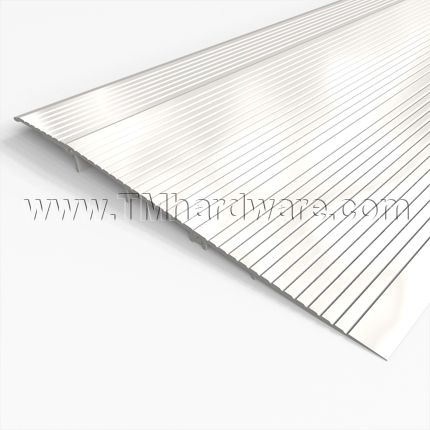

    Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. This ramp compensates for a 1.50” floor offset and has a short or long top plate which ensures smooth transition and protects the upper floor surface. This ramp is wheelchair compatible and meets the slope requirements for Americans with Disabilities Act (ADA). The grooved surface allows for a stronger grip, to prevent slipping. Ramp is made of high quality, thick aluminum that will keep its shape and not buckle over time, even through constant usage.

    Finishes: Available in standard Aluminum Mill Finish or with Aluminum PemKote™ Non-Slip surface. PemKote™ is highly recommended for all thresholds placed in exterior conditions where moisture may be present.

    Miter Return Ends Pieces: The use of Miter Returns are recommended to seal the sides of the ramps (see detailed images). However, the miter returns do not meet the ADA slope requirements and are not ADA compliant. If miter returns are not used, it is recommended to fill and feather the threshold ends with grout - do not leave the ramp ends open.

    Ramp has a total of 5 components which are easily interlocked and welding is not required for installation.

    Width Available: Standard widths can be purchased through our website, however, up to 185" can be purchased through our office. For details and pricing, please contact us or call us at 845-388-1300.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Aluminum Mill Finish ramp has a 5 year guarantee against defects in material and workmanship.
    PemKote Finish carries a 10 year guarantee.

    For a higher floor offset, see our Modular Ramp with Top Plate 1.75" Floor Offset.
    To view this product without a top plate, see our 1.5" Aluminum Modular Ramp.
      • SKU
        PKR1.5OSSA
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      R1.50S, R1.50SMR, R1.50SS, R1.50SSMR
    • Dimensions
      • Offset Height
        1.5" Height
      • Width
        21.75" Width
      • Length
        Custom Cut to Size
      • Top Plate
        3.5" Short Top Plate, 7" Long Top Plate

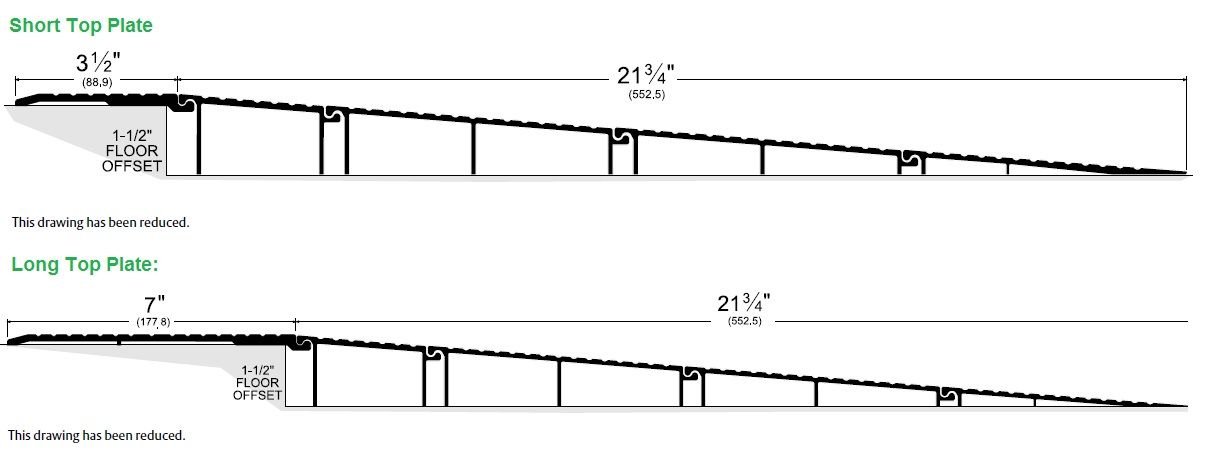

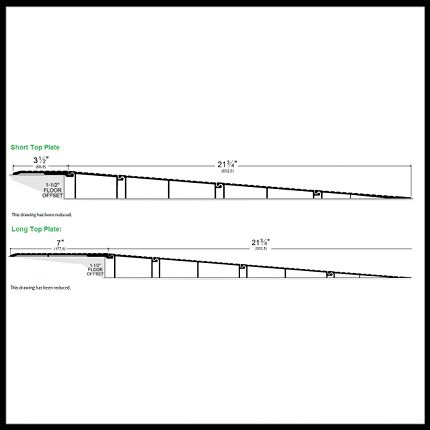

      • Short Top Plate Specifics
        Plate has a length of 3.5”. The ramp component length is 21.75”, making it a total 25.25" ramp length.
      • Long Top Plate Specifics
        Plate has a length of 7”. The ramp component length is 21.75”, making it a total 28.75” ramp length. The large length of the plate works well with floor closers.
    • Ramp Design
      • Material
        Aluminum
      • Ramp Component
        Ramp End
      • Ramp Type
        Top Plate Application
      • Installation
        Supplied with #10 Stainless Steel wood screws. Ramp with short and long top plate have 5 screws per foot. (Ex: a 36" width ramp will have 3 rows of 5 screws, with a total of 15 screws).
      • Drilling
        Drill holes are provided
    • Additional Options
      • Miter Return
        None Required, Aluminum Miter Return (#R1.5OMRA), PemKote™ Miter Return (#R1.5OMRAK)
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Aluminum PemKote™
    • Compliance Details
      • Compliance Details
        Fire Rated, BHMA Certified, ADA Compliant
      • Warranty
        5 Year Limited Warranty, PemKote™ Finish Carries a 10 Year Guarantee
