Pemko #2006 Rabbeted Threshold, 5" Aluminum with Rubber or Brush Seal, .5" H

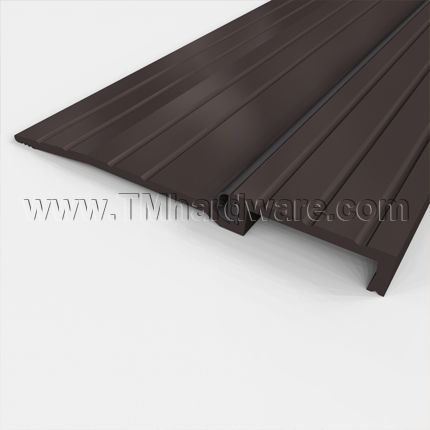

Pemko 2006 Aluminum Threshold with Vinyl Seal
Pemko Manufacturing

This rabbeted threshold adds a seal at the bottom of doors to provide additional insulation. It is made of high quality material that will ensure long-lasting usage. It has a 5" width and a height clearance of .25". Available with thermo, vinyl, or brush seal, various aluminum finishes and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK2006AV
    • Market price:$36.92
      • save 10%
    • Starting price: Price: $33.22 per foot


    Rabbeted threshold creates a seal at the bottom of doors to provide additional gap insulation.

    Width: 5.0"

    Interior Saddle Height: .25" (1/4")

    Door Clearance Height: .375" (3/8")

    Total Height: .5" (1/2")

    Length: Custom cut to size up to 104" (larger sizes can be purchased through our office)

    Material: Threshold is made of fire rated aircraft grade aluminum that is built to withstand heavy weights and will not buckle or bend under pressure.

    Available Seals: It can be purchased with either a thermo or vinyl rubber or pile brush seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating which creates a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperature, and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

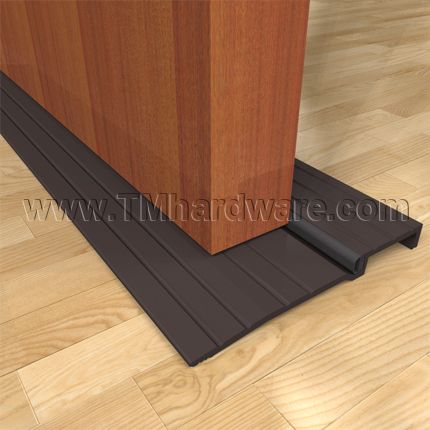

    Finishes: Available in aluminum mill finish or dark bronze anodized aluminum.

    Compliance Details: See Product Data tab to the right.

    Installation: Installation instructions and screws provided. Screws are colored to coordinate with saddle. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    Click here to view all our Rabbeted Seal Thresholds

      • SKU
        PK2006AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      2006T, 2006V, 2006P
    • Dimensions
      • Overall Height
        .5" Height
      • Interior Height
        .25" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .375" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Rubber Seal / Bumper Threshold
      • Seal Type
        Vinyl Seal, Thermo Seal, Pile Brush Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Satin Bronze Powder Coated (10BE), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        Fire Rated, ADA Compliant
      • Warranty
        5 Year Limited Warranty

    P2006 Product Specs:

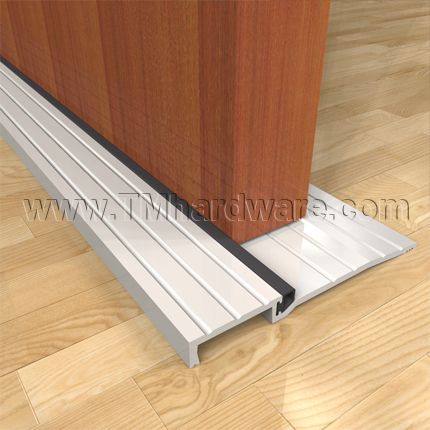

    Thermo Seal:

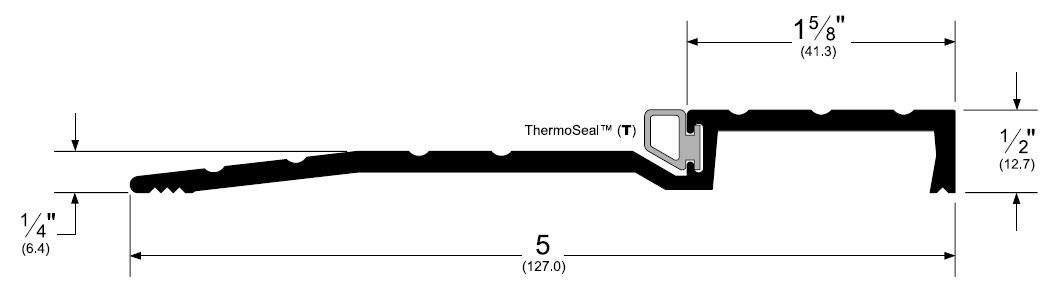

    Product Specs of Pemko 2006T Rabbeted Threshold with Thermo Seal

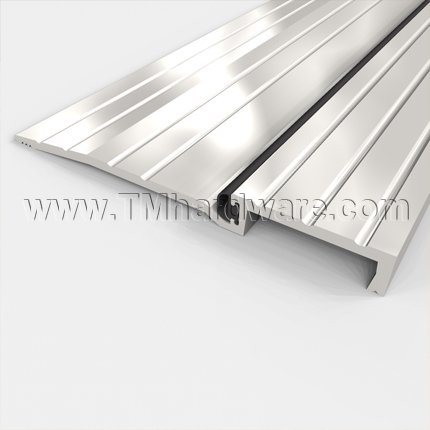

    Vinyl Seal:

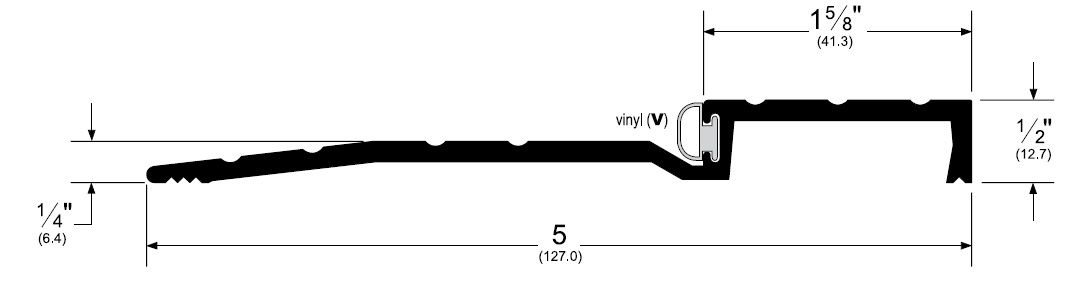

    Product specs of Pemko 2006V rabbeted threshold with vinyl gasket seal

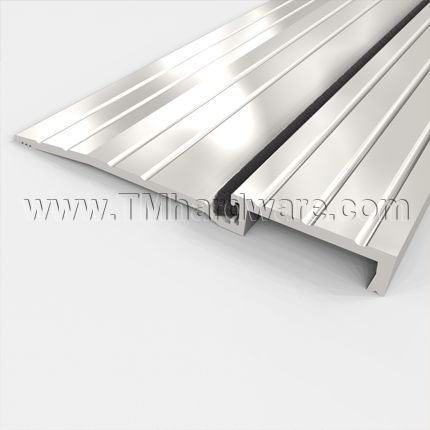

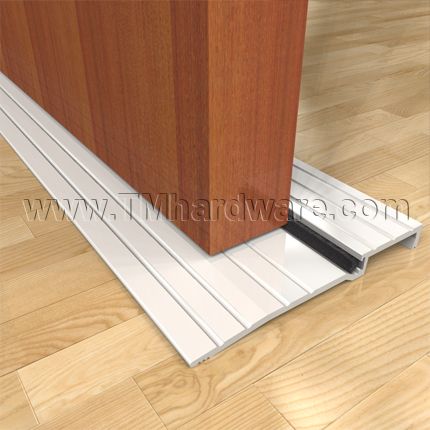

    Pile Brush Seal:

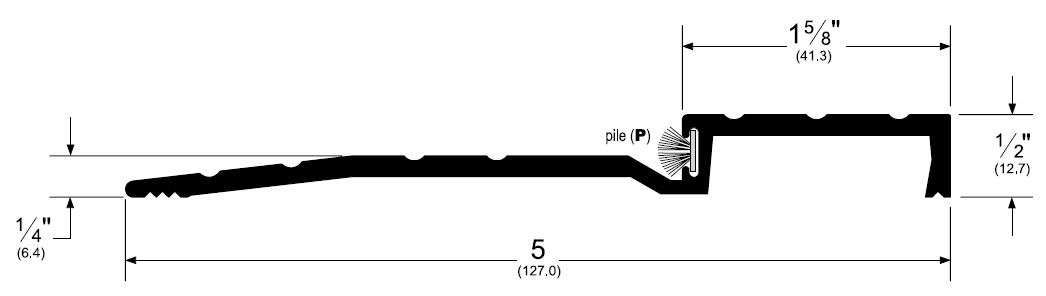

    Product specs of pemko 2006P rabbeted threshold with pile brush seal

    Click to Print



    P2006 Installation Guide:

    Click to View Ratings Explained

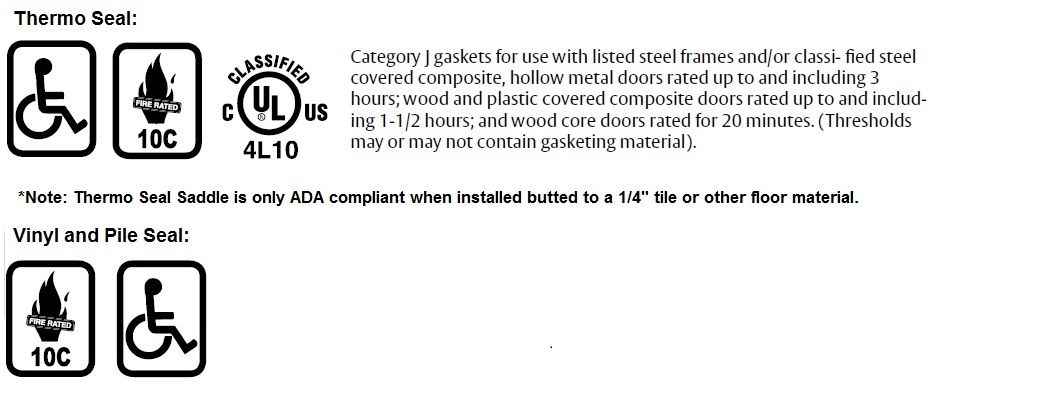

    Compliance Details for Pemko 2006 Rabbeted Threshold



    Finishes Comply with the Following ANSI / BHMA Codes:

    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
