Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H

Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H
Zero International

This item has an extended 9 week lead time

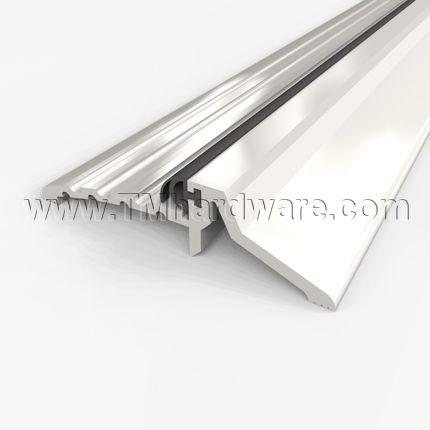

This Zero #563 fire and smoke rated doorway threshold is fitted with a neoprene gasket to provide a solid seal against drafts, dust, air and water infiltration. Available in aluminum mill finish with options of full body strength. Length is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      ZR563A
    • Market price:$18.13
      • save 5%
    • Starting price: Price: $17.22 per foot

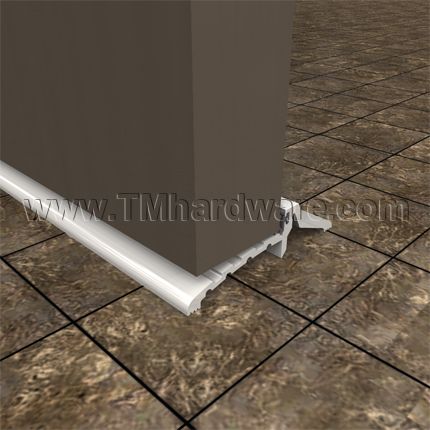

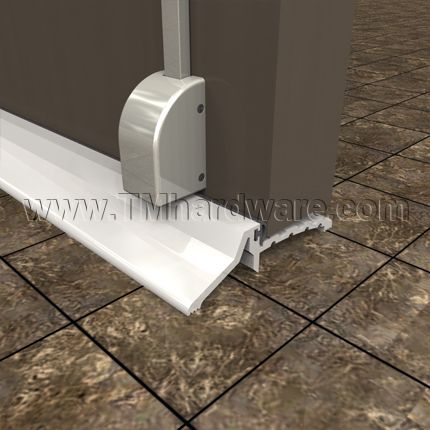

    Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal.

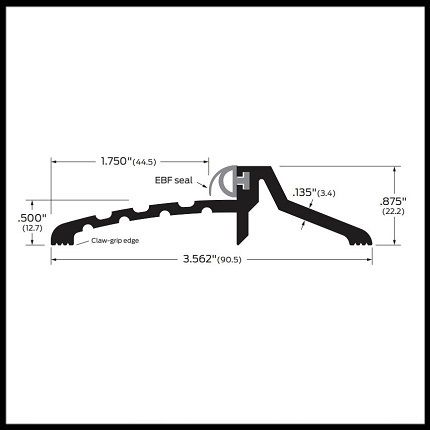

    Total Width: 3.562"

    Width Under Door: 1.75"

    Required Door Clearance: .5"

    Total Height: .875"

    Thickness: .135"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Finish: Aluminum mill finish

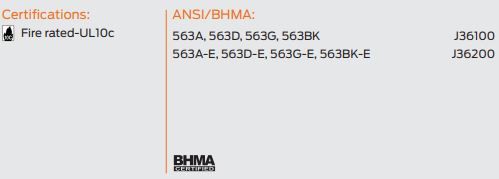

    Compliance Details: Positive Pressure Fire Rating, Smoke Rating, ITS Warnock Hersey Listed

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Drilling: Threshold is drilled for easy installation

    Additional Options Include:

    • Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

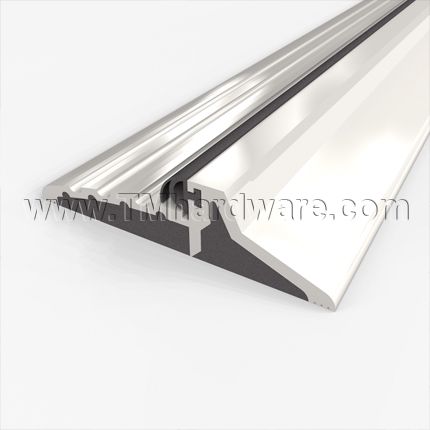

    • Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy

    Click here to see more Rubber Seal Thresholds.

      • SKU
        ZR563A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      563
    • Options
      Standard Aluminum, Full Body Strength
    • Dimensions
      • Overall Height
        .875" Height
      • Overall Width
        3.562" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .5" Height
      • Thickness
        .135" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Rubber Seal / Bumper Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Aluminum
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
