Rockwood 94DL - Dead Lock Flush Door Pull, 6.125" x 5" or 6.125" x 8"

Rockwood 94DL - Dead Lock Flush Door Pull, 6.125" x 5" or 6.125" x 8"
Rockwood Company

Rockwood 94DL dead lock flush pull, is square cornered and extra heavy duty (.125" thick). Vandal resistant pull is ideal for any commercial "exit only" door where occasional entrance is required. Pull is small and compact for a clean look. Two sizes and a variety of finishes and materials are available. See below for details and options.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RK94DLS US32D
    • Market price:$96.00
      • save 10%
    • Starting price: Price: $86.40 per item


    Rockwood 94DL dead lock flush pull, is vandal resistant, commercial grade and long lasting. It is an extra heavy duty (.125" thick) dead lock flush pull and great for use where projecting trim is an operational problem or esthetic objection.

    Ideal for use on "exit only" doors where occasional entrance is required (warehouse exits); night latch function exit device openings, such as classroom exit only doors; mechanical doors and anywhere dead locking is approved.

    Materials: Brass, Bronze, Stainless Steel

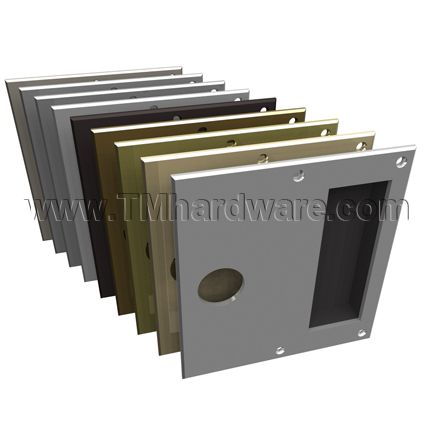

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polished Chrome; Satin Chrome; Stainless Steel, Satin; Stainless Steel, Polished; Satin MicroShield Coated; Polished 316 Alloy; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32​ - Enhanced corrosion resistance of stainless steel. 316 Alloy - Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Features:

    • Used with dead bolt lock.
    • 1.25" cylinder hole is standard
    • Vandal resistant
    • Cups are painted black on all finishes except for stainless steel.

    ​Options: See options tab for details and pricing.

    • Torx security screws
    • Barrier Free Feature

    Sizes: 2 standard sizes (chart). Custom sizes available - for details and pricing please contact us or call us at 845-388-1300.

      Product #   Size (Inches)   Weight Grip Opening
      94DLS (small)   6.125" x 5"   0.8 lbs   1.75" x 3.125"
      94DLL (large)   6.125" x 8"   1.0 lbs   1.75" x 6.125"

    Depth: 0.875"

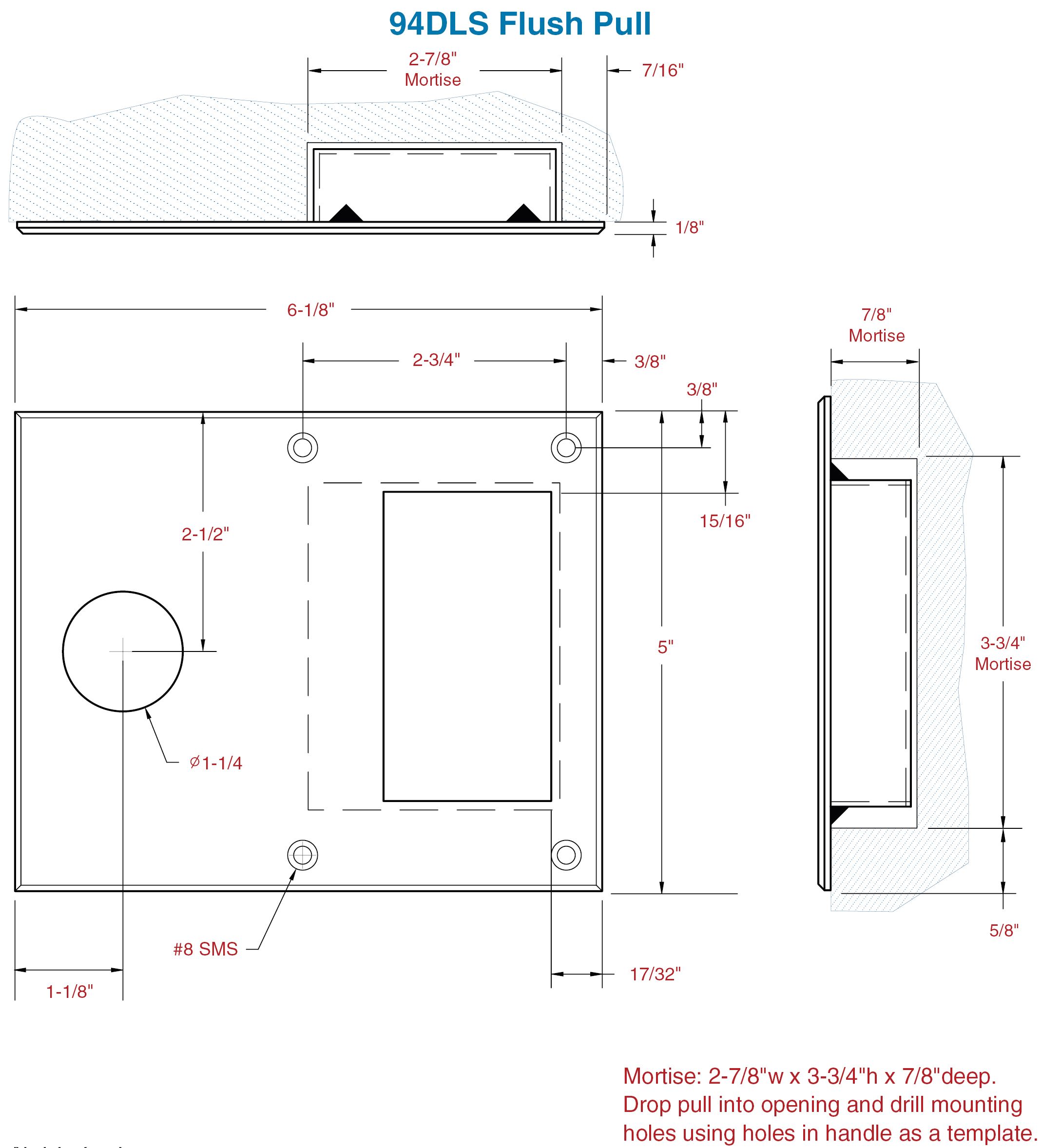

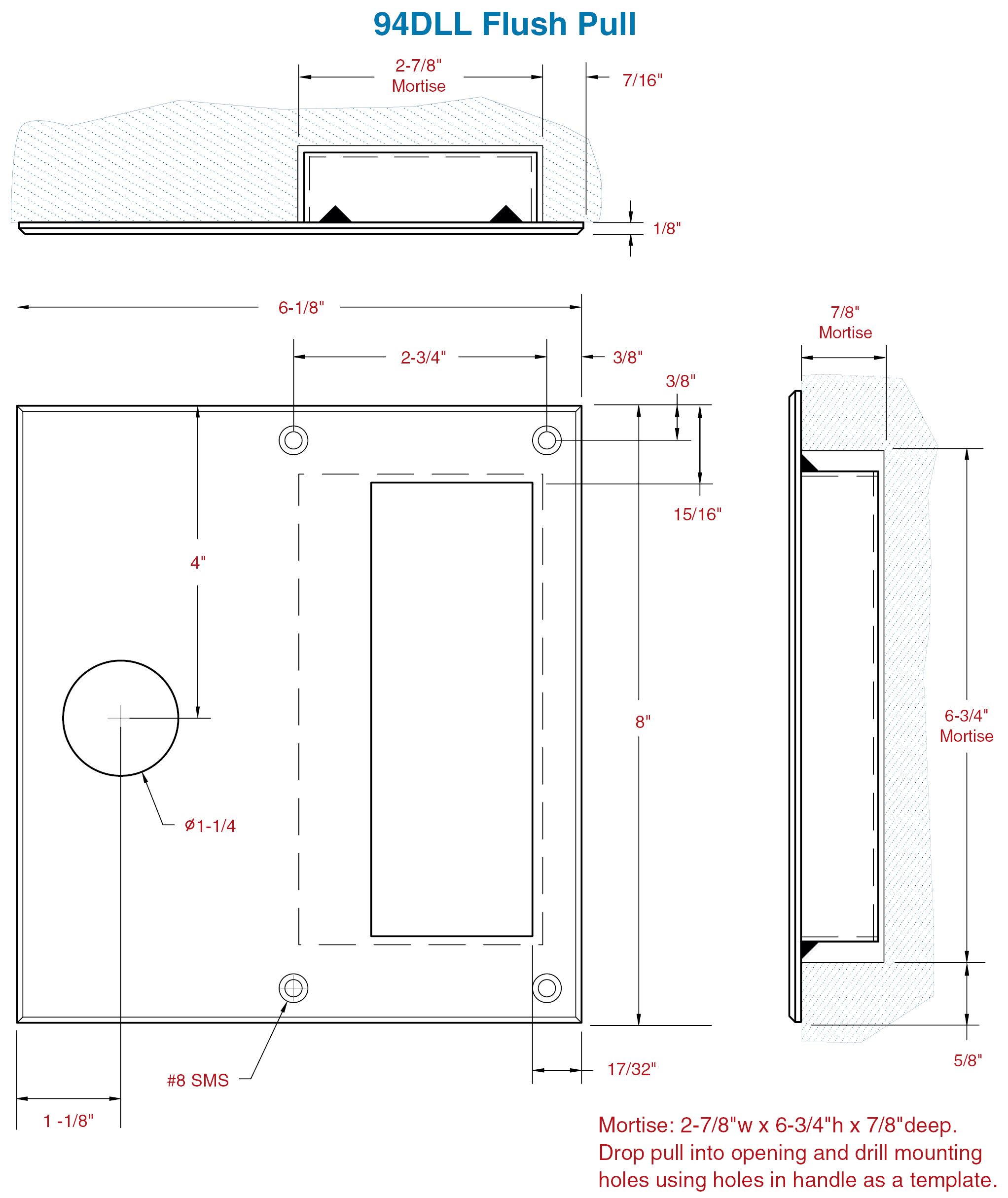

    Mortised Channel: 94DLL - 2.875"(W) x 6.75"(H) x 0.875"(D)

                                                    94 DLS - 2.875"(W) x 3.75"H x 0.875"(D)

    Fastener: #8 x 3/4" OH SMS. Included

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warrany Policy.

    Click here to view our Rockwood 94L Door Pull With Hidden Fasteners.

      • SKU
        RK94DLS US32D
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      94DLL, 94DLS
    • Size
      6.125" x 5" (94DLS), 6.125" x 8" (94DLL)
    • Options
      None, Barrier Free Grip
    • Torx Screws
      Not Required, Required
    • Finishes
      • Finish
        Polished Brass (US3), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Satin

    To order product with more than one option, please contact us or call us at 845-388-1300.

     TORX SCREWS

    Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used.

    Door pull needs a total of four screws.

    Size: #8 x 3/4" FH SMS

    Priced per 4 screws: $7.20

     BARRIER FREE GRIP

    Feature on pull cavity which means that the opening of the cavity or cup is large enough to easily slip your hand into it.



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/652
    • Satin Chrome-US26D/626
    • Stainless Steel, Polished/US32/629
    • Stainless Steel, Satin-US32D/630
    • Satin MicroShield Coated-US32DMS
    • Polished 316 Alloy-US32316
    • Satin 316 Alloy-US32D316

    ​Push Plate complies with ANSI A156.6: J403


    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Stocked Items: 3 - 4 Days (please call to confirm stock)
    Non Stocked Items: 10 - 14 Business Days
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • Products are custom made to order and are not returnable.
      • We are committed to your satisfaction. As a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
