Rockwood 557 x 19BFB Lever Extension Flush Bolt With Bottom Fire Bolt

Rockwood 557 x 19BFB Lever Extension Flush Bolt With Bottom Fire Bolt
Rockwood Company

Rockwood's 557 Lever Extension Flush Bolt with a standard face plate joined by the Bottom Fire Bolt for Metal Doors, is designed to hold your door in place when the lever is manually extended. This product is suitable for the top or the bottom of the door, and is mainly used for hollow metal doors. Bottom Fire Bolt is activated when temperatures reach 230°F. Bolt is made of brass and finished in Satin Chrome. This 557 Flush Bolt has  a 12" rod length, and optional bolt head lengths, see options below.

PRICED PER SET

See tabs below for additional information
    • SKU
      RK557x19BFB
    • Market price:$205.00
      • save 10%
    • Starting price: Price: $184.50 per set


    Rockwood's 557 lever extension flush bolts are architectural grade products and are available in many finishes and rod lenghts.

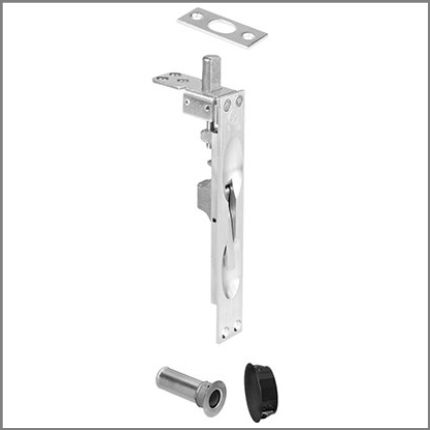

    Set Includes: Face Plate; Rod; Bolt Head; Guide Plate; Strike Plate; Bottom Fire Bolt for Metal Doors

    Materials: Flush Bolt-Brass        Bottom Fire Bolt-Stainless Steel

    Finish: Satin Chrome Plated-US26D/626

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Installation: This product is difficult to install on your own from start to finish. The most difficult part is mortising the door in preparation for installation. The best option is to have the door factory prepare the door specifically for the lever extension bolt you want to mount to the door.
     Bottom Fire Bolt is installed to the bottom portion of the door. See product data tab for installation instructions    .

    Features:

    • For Fire Rated Hollow Metal Swinging Doors measuring up to 4'(W) x 9'(H) rated up to and including 3 hours.
    • Fits ANSI A115 door and frame preparation
    • 3/4" bolt throw and rod backset
    • 12" rod length-from the center of the face plate to the bolt end (while retracted)
    • 1-1/2" adjustable bolt head
    • Bottom fire bolt eliminates need for floor prep
    • Oversize fire bolt strike hole allows for slight misalignment

    Options:

    Top Bolt: 1"(W) x 6-3/4"(H)-Standard face plate making this the most popular lever extension flush bolt.

    Bottom Bolt: 13/16" Diameter

    Strike Plate: 15/16" x 2-1/4"

    Guide Plate: 1"x 2"

    Rod: 1/4-20 threaded

    Fasteners: 8 each-#8 x 3/4" FH combo screws. Included.

    Weight: .9 lbs

    Priced per set.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact dimensions

    This product has a 1 year guarantee against defects in workmanship and materials.
