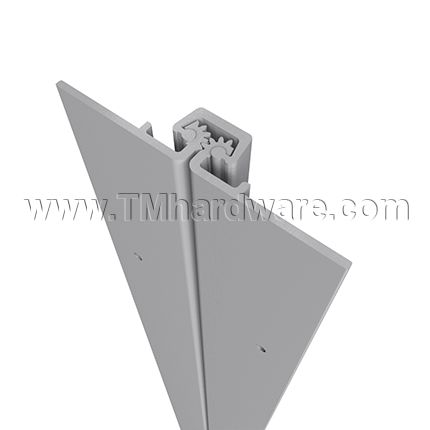

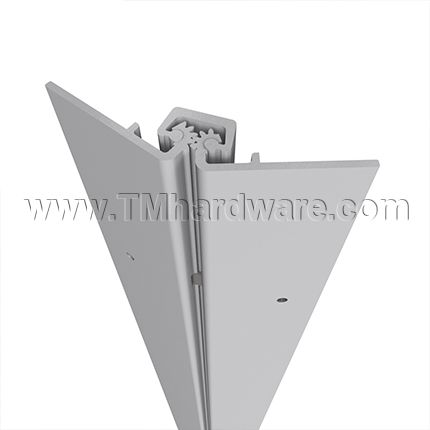

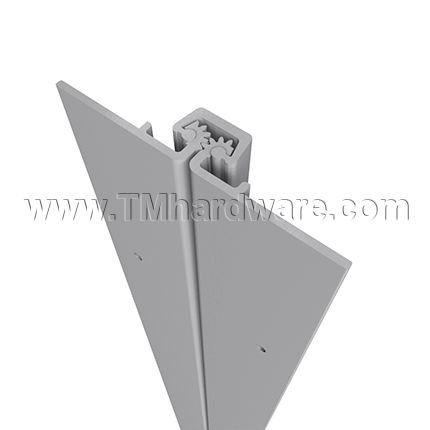

Roton 500-220 Continuous Hinge, Full Surface Low Weight Door

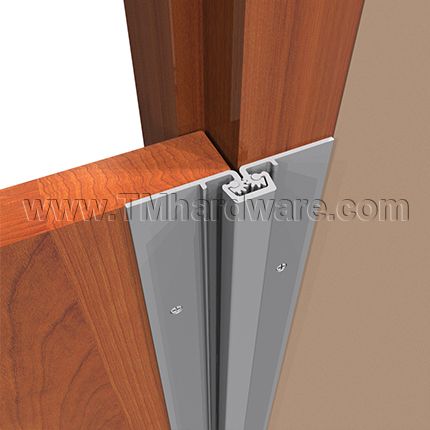

ROTON 500-220 is a Light Duty Full Surface Continuous Hinge that is applied with both hinge leaves surface-mounted to the frame and the door. This model can be applied to either the front or back of the door and is designed for doors up to 50 pounds in low frequency usage applications. Compatible with sheet metal or wood door frames and is available in a choice of lengths and finishes.
PRICED PER PIECE - See full product details and specs in the tabs below
See tabs below for additional information
Roton 500-220 Continuous Geared, light-duty full surface hinge by Hager companies.
Available in four sizes: (chart)
Bearings: Spaced to distribute door weight evenly up to 50 pounds.

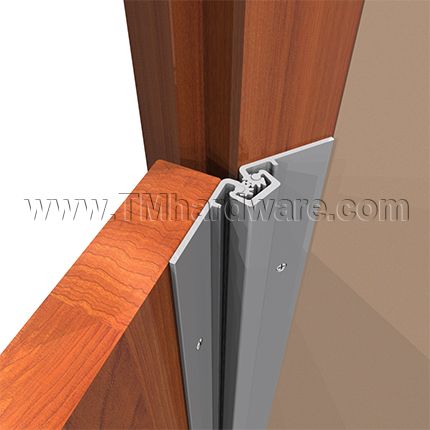

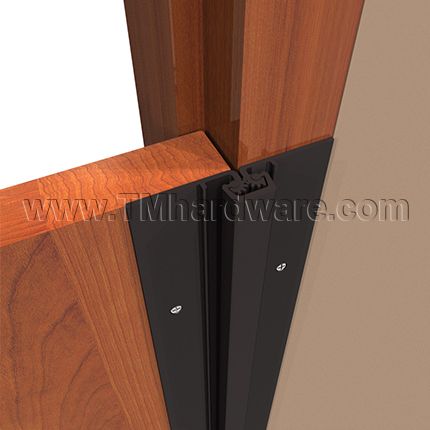

Finish: Clear anodized aluminum or dark bronze anodized aluminum. Custom colors are available, for details and pricing please contact us or call us at 845-388-1300.
Materials: Constructed from low temperature, corrosion resistant aluminum.
Design: Full surface leaf hinge with sheet metal screws, 1-16" nominal leaf thickness (see Product Data Tab.)
Fasteners: #8-18 x 3/4" Truss Head Phillips Tapping AB Zinc plated Steel for metal doors.
Orientation: Can be used for vertical or horizontal applications
Applications: For sheet metal or wood applications.
Installation: Alignment ribs for easy installation and proper hinge location. Allows either inset or outset applications for recessed or surface mounted applications. Installation screws provided for standard installation(see Installation Tab). Clearance needed: 1/32" minimum.
Priced per piece
Please note, images are for illustrative purposes only.
Click here to view our Roton 750-134 Continuous Hinge, Standard Duty Concealed Leaf.
This product has a lifetime warranty against defects in workmanship and material.
Click here to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNH500-220
-
Door TypeMetal Door (Standard), Wooden Door
- Finishes
-

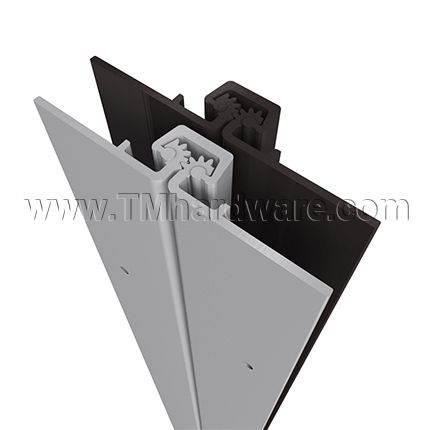

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
Printable Documents:
Click here to print template of Roton 500-220 Continuous Hinges.

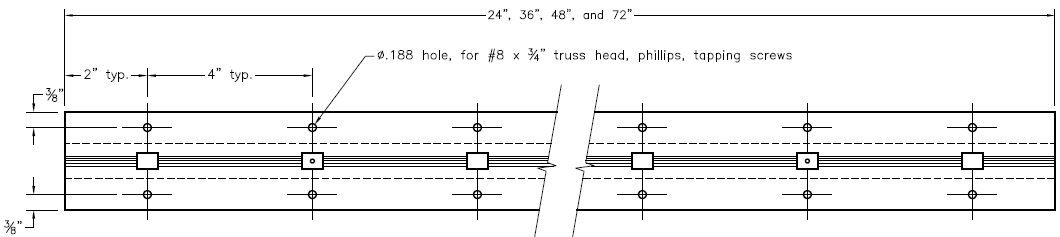

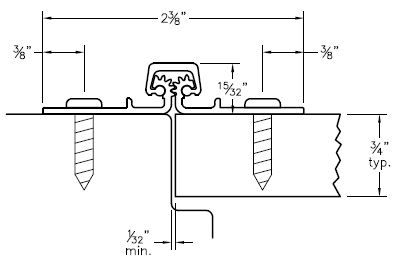

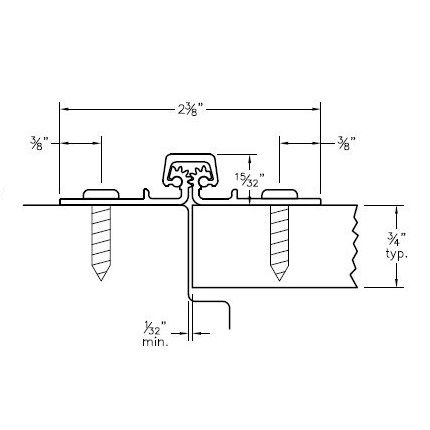

Product Specs:

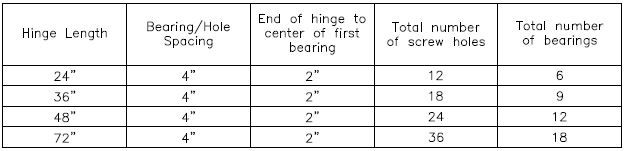

Standard Configurations:
Printable Documents:
Click here for a printable version of How To Install Hager Continuous Hinges.
Installation:
ROTON Model 500-220 is an Aluminum Continuous Geared Full Surface Leaf Hinge. The minimum clearance required between the hinge edge of the door and the frame is different for each application. For application A it is 1/32". Application B it is 27/32". Application C it is 7/16" The maximum door thickness must also be considered for each specific application and door swing (see illustrations above.
Hinge Length:
The 500-Series Hinges are supplied in four standard lengths. See chart. If the hinge must be trimmed shorter, determine the desired finished length and mark. Be careful not to cut within 1/2" of a bearing or screw hole. The excess length may be removed all from one end or by cutting equal amounts from both ends. Actual Hinge Length Number of Fasteners (Door Leaf/Frame Leaf 24" 6/6 36" 9/9 48" 12/12 72" 12/12.)
Mounting Surface Preparation:
1. With the hinge open, place the frame leaf against the mounting surface. For application B, make certain that the alignment rib is flush against the face of the mounting surface along its entire length. Center the hinge within the opening. Mark and center punch the screw hole locations. Accurate location is important for proper hinge installation.
2. For wood and metal, drill pilot holes using a 1/8" bit. For fiberglass, drill pilot holes using a 9/64" bit. Do not attach the hinge at this time.
Door Preparation:
1. With the hinge open, place the door leaf against the face of the door. For application B and C, make certain that the alignment rib is flush against the edge of the door along its entire length. Center the hinge on the door. Mark and center punch the screw hole locations. Accurate location is important for proper hinge installation.
2. For wood and metal doors, drill pilot holes using a 1/8" bit. For fiberglass doors, drill pilot holes using a 9/64" bit. Attach the hinge to the door using the #8 truss head screws provided.
Hanging the Door:
1. Position the door (with hinge attached at 90 degrees to the mounting surface. Attach the hinge to the frame using the #8 truss head screws provided.
2. Make a gentle trial swing. Carefully check the door for proper swing and clearance.
Adjusting the Door:
1. If lateral adjustment is required because of excessive or uneven mounting clearance, adjust by loosening or removing the screws of the frame leaf and shimming where needed.
a. An effective shimming material is 5/8" strips of cloth duct tape. Apply tape to the mounting surface underneath the hinge leaf in stepped layers to build up to the desired thickness.
b. In a similar manner, a thin continuous plastic or aluminum strip may be used between the mounting surface and the hinge leaf to adjust the entire door.
2. Retighten all screws. Make a gentle trial swing. Carefully check the door for proper swing and clearance.
