Roton 500-048 Continuous Hinge, Concealed Leaf Low Weight Door

Roton 500-048 Continuous Hinge, Concealed Leaf Low Weight Door
Hager Companies

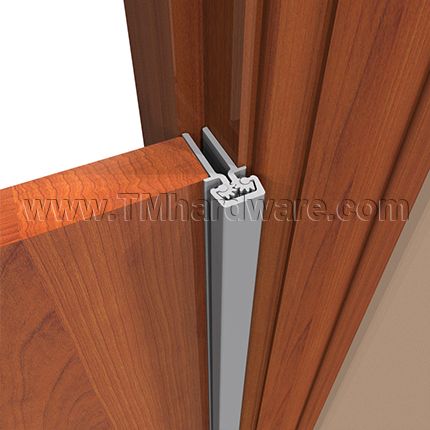

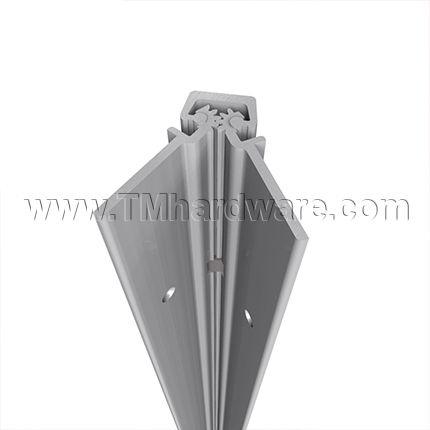

ROTON 500-048 is a Light-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  This hinge is designed for doors weighing up to 50 lbs. with low frequency usage.  Compatible with sheet metal and wood door frames and is available in a choice of lengths and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      HG500-048_068560
    Call for price!
    845-388-1300

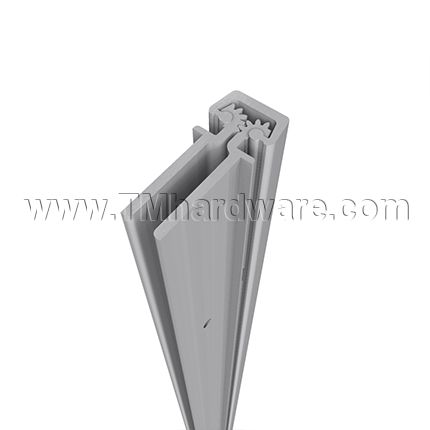

    Roton 500-048 Concealed Leaf Continuous Geared Hinge by Hager Companies.

    • Available in four sizes: (chart)

    • Bearings: Spaced to distribute door weight evenly up to 50 pounds.

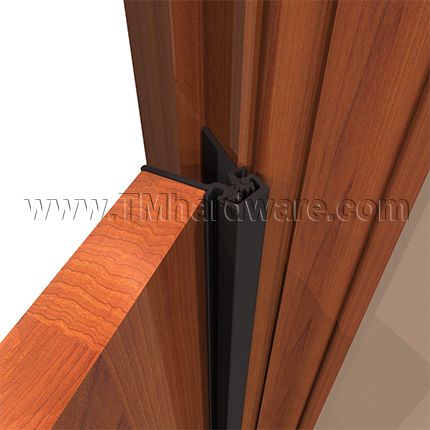

    • Finish: Clear anodized aluminum or dark bronze anodized aluminum.  Custom colors are available,  for details and pricing please contact us or call us at 845-388-1300.
    • Materials: Constructed from low temperature, corrosion resistant aluminum.

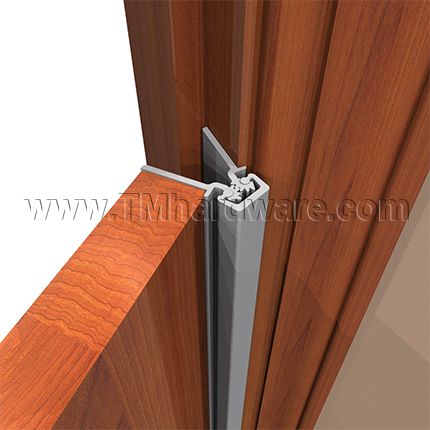

    • Design: Concealed leaf with sheet metal screws, 1/16" nominal leaf thickness. Leaves are concealed between the rabbet of the frame and the hinge edge of the door (see Product Data Tab.)
    • Fasteners: #8-18 x 3/4" Truss Head Phillips Tapping AB Zinc plated Steel for metal doors.
    • Orientation:  Can be used for vertical or horizontal applications.
    • Applications:  For sheet metal or wood applications.
    • Installation:  Alignment ribs for easy installation and proper hinge location.  Installation screws provided (see Installation Tab).  Clearance needed: 5/16".
    • Priced per piece
    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a lifetime warranty against defects in workmanship and material.
    Click here to view our Full Warranty Policy.

    Click here to view our Roton 500-200 Light Duty Continuous Hinge.

      • SKU
        HG500-048_068560
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      500-048
    • Door Type
      Metal Door (Standard), Wooden Door
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

    Click here to print template of Roton 500 Series Continuous Hinges.

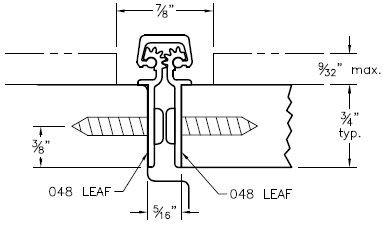

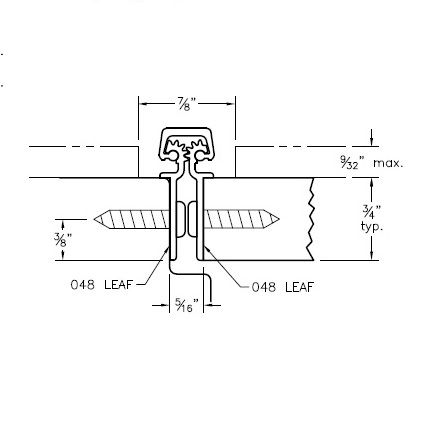

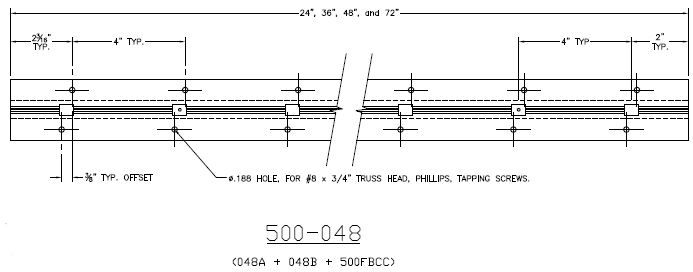

    Product Specs of Hager Roton 500-048 Continuous Hinge

    Product Specs of Hager Roton 500-048 Continuous Hinge

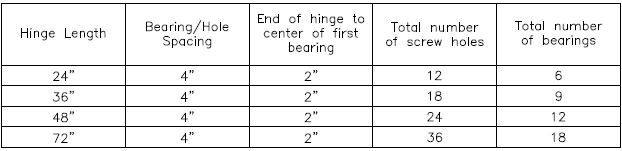

    Standard Configurations:

    Product Specs of Hager Roton 500-048 Continuous Hinge

    Printable Documents:

    Click here for a printable copy of How to Install Hager Continuous Hinges.

    Mounting Surface Preparation:

    1.  With the hinge open, place the frame leaf against the mounting surface making certain that the alignment rib is flush against the face of the mounting surface along its entire length.  Center the hinge within the opening.  Mark and center punch the screw hole locations.  Accurate location is important for proper hinge installation.

    2.  For wood and metal, drill pilot holes using a 1/8" (3.2 mm) bit.  For fiberglass, drill pilot holes using a 9/64" (3.6 mm) bit.  Do not attach the hinge at this time.







    Door Preparation:

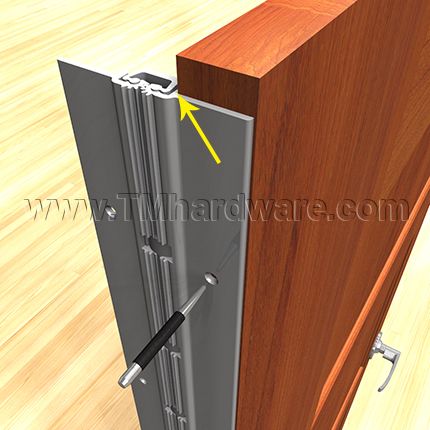

    1.  With the hinge open, place the door leaf against the edge of the door making certain that the alignment rib is flush against the face of the door along its entire length.  Center the hinge on the door.  Mark and center punch the screw hole locations.  Accurate location is important for proper hinge installation.

    2.  For wood and metal doors, drill pilot holes using a 1/8" (3.2mm)bit.  For fiberglass doors, drill pilot holes using a 9/64" (3.6mm) bit.  Attach the hinge to the door using the #8 truss head screws provided.







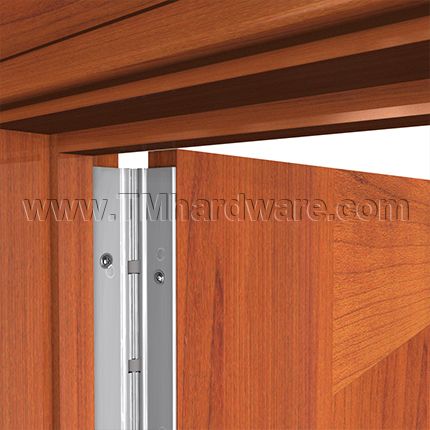

    Hanging the Door:

    1.  Position the door (with hinge attached) at 90 degrees to the mounting surface.  Attach the hinge using the #8 truss head screws provided.

    2.  Make a gentle trial swing.  Carefully check the door for proper swing and clearance.











    Adjusting the Door:

    1.  If lateral adjustment is required because of excessive or uneven mounting clearance, adjust by loosening or removing the screws of the frame leaf and shimming where needed.

    a.  An effective shimming material is 5/8" strips of cloth duct tape.  Apply tape to the mounting surface underneath the hinge leaf in stepped layers to build up the desired thickness.

    b.  In a similar manner, a thin continuous plastic or aluminum strip may be used between the mounting surface and the hinge leaf to adjust the entire door.

    2.  Retighten all screws.  Make a gentle trial swing.   Carefully check the door for proper swing and clearance.
