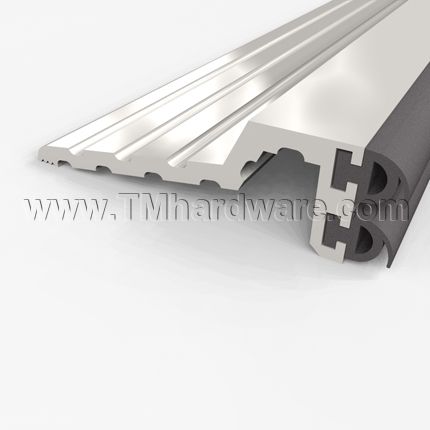

Zero #524 Threshold Door Stop with Double Neoprene Gasket, 2.91" Wide, .875" H
This Zero #524 Threshold Door Stop is fitted with a double neoprene upgraded seal, preventing air, light, dust, and insects from infiltrating. Available in Aluminum Mill Finish with a height clearance of .875". Options of Full Body Strength available. Length is custom cut to size.
PRICED PER FOOT

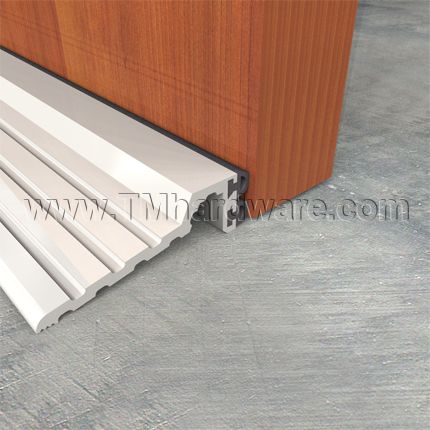

Door closes against Threshold Stop / Butt Threshold with Seal to create a stong barrier against outdoor elements.

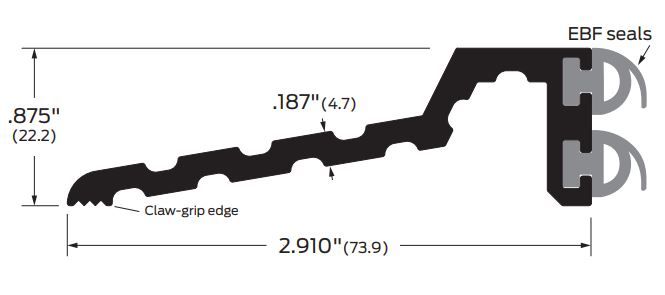

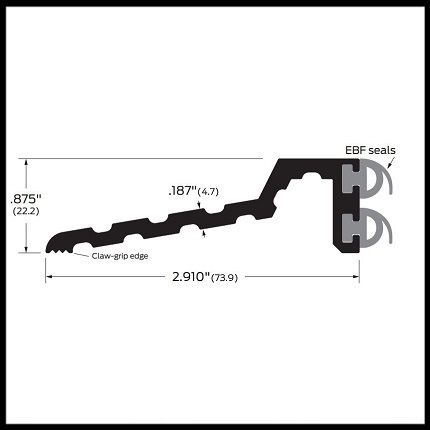

Width: 2.910"
Height: .875"
Thickness: .187"
Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)
Finish: Aluminum mill finish
Seal: Double Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.
Installation: Installation Instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

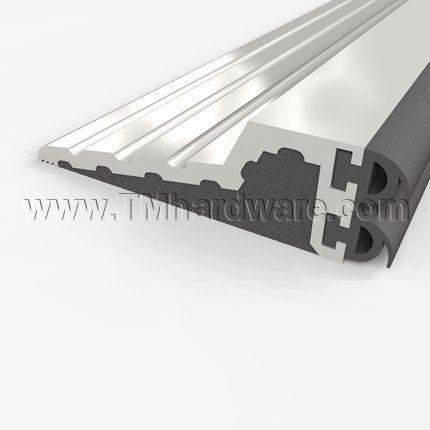

Additional Options - Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, and industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Click here to see more Door Bumper Thresholds.
-
QuickShipNo
-
ManufacturerZero International
-
MPN524
-
OptionsStandard Aluminum, Alum. with Full Body Strength
- Dimensions
-
Overall Height.875" Height
-
Overall Width2.91" Width
-
Threshold LengthCustom Cut to Size
-
Thickness.187" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeRubber Seal / Bumper Threshold
-
Seal TypeNeoprene Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishFlat Black (US19)
-

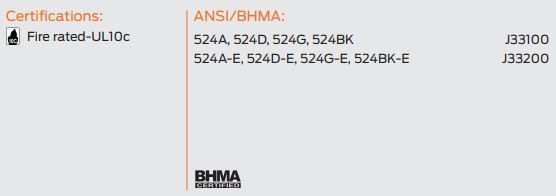

- Compliance Details
-
Warranty1 Year Limited Warranty
-
