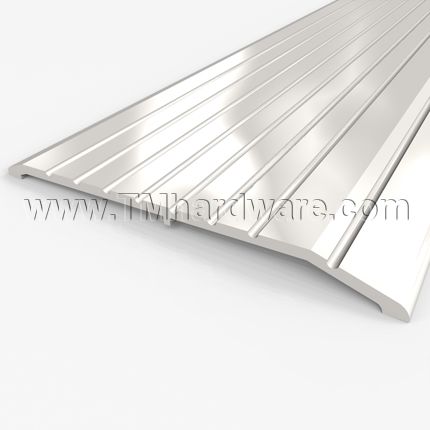

Zero #102 Transitional Threshold, 5.5" (W) Aluminum, .25" Offset
This Zero #102 aluminum threshold is used to create a smooth transition where there is a height change of .25" in floor surfaces. This threshold is ADA compliant and is available with epoxy abrasives. Length is custom cut to size.
PRICED PER FOOT

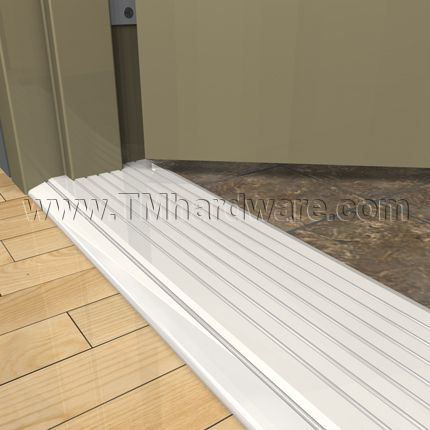

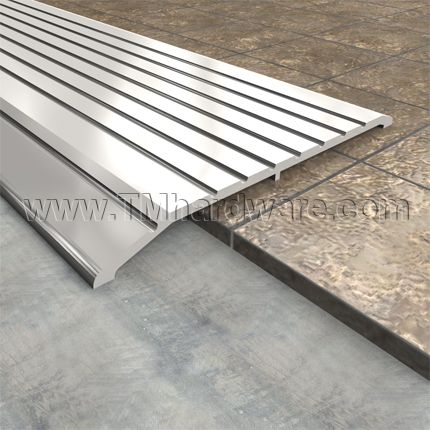

Transitional / Offset Threshlds eliminates the tripping hazard associated with irregular floor surfaces. Transitional thresholds like this are often used when a threshold is required to meet with tile or carpet on one side.
Width: 5.5" (5-1/2")
Offset Height: .25" (1/4")
Upper Saddle Height: .25" (1/4")
Total Heigth: .5" (1/2")
Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)
Thickness: .140"
Finish: Aluminum Mill Finish (US27)
Compliance Details: ADA / Wheelchair Compliance
Installation: Installation instructions provided.
Drilling: Threshold is supplied not drilled. Drilling can be supplied if template is provided. Please contact our office for ordering information.

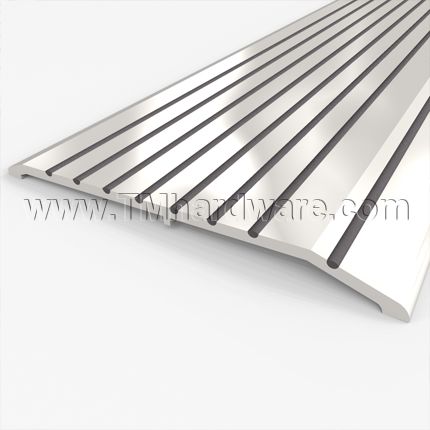

Additional Options: Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
For a wider threshold, click here to see our Zero International Transitional Threshold 7" W.
-
QuickShipNo
-
ManufacturerZero International
-
MPN102
-
OptionsStandard Aluminum, Epoxy Abrasives
- Dimensions
-
Overall Height.5" Height
-
Offset Height.25" Height
-
Overall Width5.5" Width
-
Thickness.140" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeTransition Threshold
-
MaterialAluminum
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
