Vision Kit VLFEZ, Standard Beveled Frame, 1-3/4" Doors, Glass up to 1/4", up to 5' x 8.5'

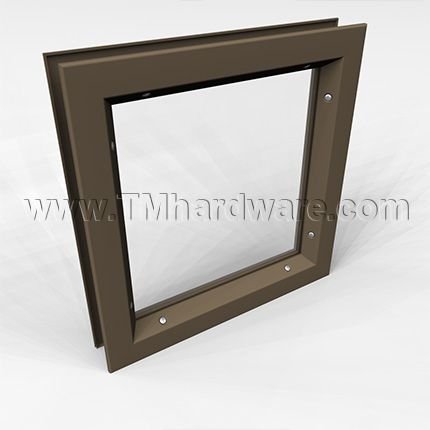

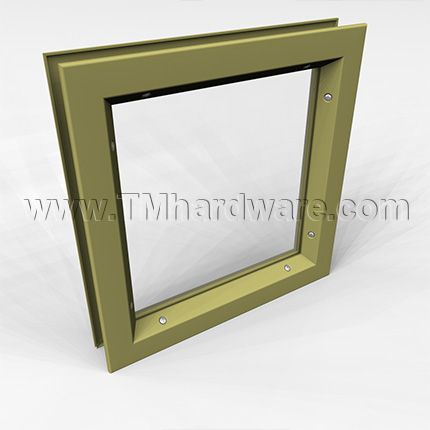

Activar VLFEZ model is a Self-Attaching, Beveled Vision Lite frame, compatible for 3/16” to 1/4” glass (glass not included). Installed with Single Side Fasters for Fire Rated Doors. Available in many different finishes and sizes.

PRICED PER PIECE - See product details and specs in tabs below

See tabs below for additional information
    • SKU
      ACVLFEZ 1212B
    • Market price:$59.00
      • save 20%
    • Starting price: Price: $47.20 per item


    This Activar Self Attaching Beveled VLFEZ vision lite kit is applied with single sided fastening for Fire Rated doors. Vision Lite frame is for 3/16” to 1/4” glazing.

    Material: 20 gauge CRS frame

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 5" - 36"
    • Available lengths: 4" - 72"

    How to Order: Orders size is the Door Cut-out Dimensions. See Product Specs for details.

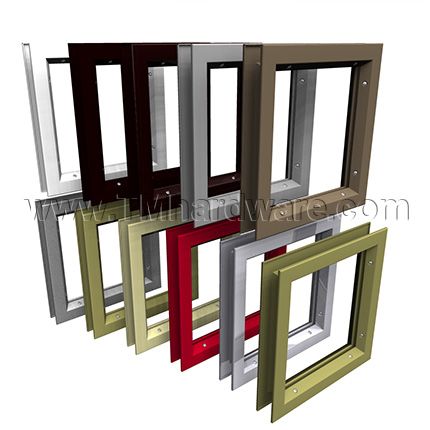

    Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes

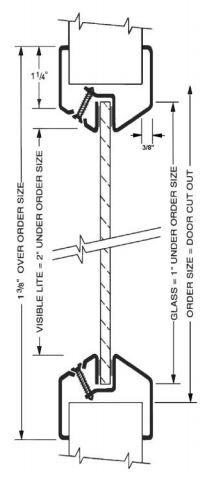

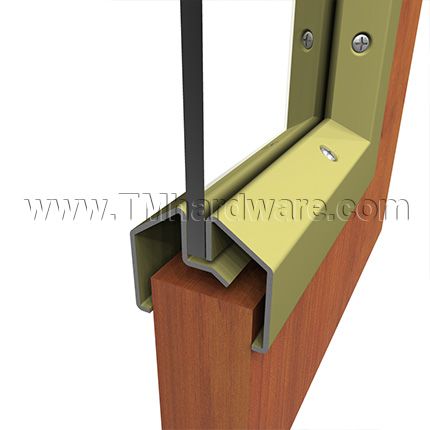

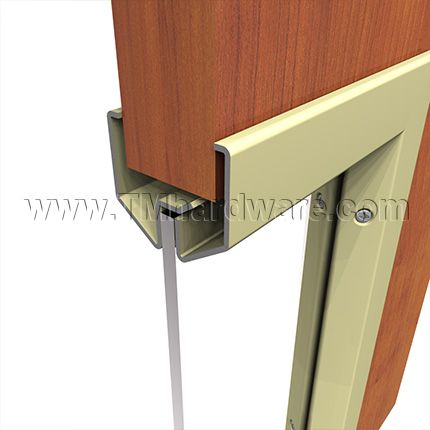

    Construction: 1-1/4” trim, with mitered and welded corners. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.  3/8” projection from door.

    Door Type: For 1-3/4" door

    Fasteners Included: #8 x 1” flathead phillips SMS to match finish

    Glass Compatibility: 3/16” - 1/4” glazing to be ordered separately. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 2” under rough opening size. Glass is 1” under order size.

    Please note, glazing material not supplied with this frame, and can be purchased separately through our site.

    Compliance Details: When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    Additional Options: Custom options are available, please contact us for details and pricing.

    • Additional intumescent tape for Positive Pressure UL10C
    • Optional Materials
      • 20 Gauge Stainless Steel #4 Finish
      • Galvanized Sheet for Exterior Applications
      • Electro Zinc Plating for Maximum Corrosion Resistance.
      • Lead Lines
    • Torx Fasteners
    • Add Welded Mullions to Your Vision Lite for Additional Security or the French Door Look.  Mullions Provided for Both Sides of Glass in 11 Standard Configurations for VLFEZ Frames. See our Mullions for Visions Lite Frames
    • Specialty PAK - Create Your Own Combination of any of our Glazing Selections with Any Vision Lite Select Glazing Tape for UL10B Doors, and We Will Apply the Tape and Securely Package it for You.
    • Add a privacy screen to This Vision Lite, see our Privacy Screen for Vision Lite Frames

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year guarantee against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click to view all our Vision Lite VLFEZIG, Beveled Aluminum Frame for 5/16" - 1-11/16" Glass

      • SKU
        ACVLFEZ 1212B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VLFEZ
    • Size (W" x H")
      5" W x 20" H, 5" W x 35" H, 6" W x 24" H, 6" W x 26" H, 6" W x 27" H, 6" W x 30" H, 6" W x 36" H, 7" W x 22" H, 8" W x 18" H, 8" W x 30" H, 8" W x 32" H, 8" W x 36" H, 12" W x 12" H, 18" W x 32" H, 24" W x 24" H, 24" W x 30" H, 24" W x 32" H, 24" W x 34" H, 24" W x 36" H, 24" W x 60" H, 24" W x 64" H
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, AMS Beige Powder Coat, Sand Powder Coat, SC Beige Powder Coat, White Powder Coat, Silver Powder Coat, Black Powder Coat, Flat Black (US19), Brass Powder Coat

    Click to Print

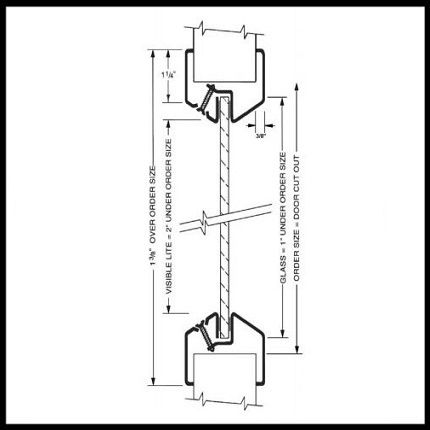

    Product Specs for VLFEZ Beveled Vision Lite Frame

    When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for max exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    product rating for VLFEZ

    Quickship Stock Items - The following options are available for Quick Shipping. Please call to confirm the shipping time.

      Finish: Mineral Bronze, All sizes listed above
      Finish: Gray, Sizes:
    • 12" x 12"
    • 7" x 22"
    • 24" x 30"
    • 5" x 35"
    • 8" x 32"
    • 24" x 32"
    • 6" x 27"
    • 24" x 24"
