Vision Kit VLF, Standard Frame, Thru-Bolt Mount, for 1-3/4" Thick Doors

Vision Kit VLF, Standard Frame, Thru-Bolt Mount, for 1-3/4" Thick Doors
Activar Air Louvers

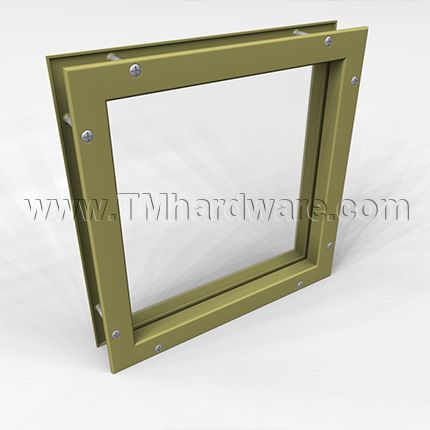

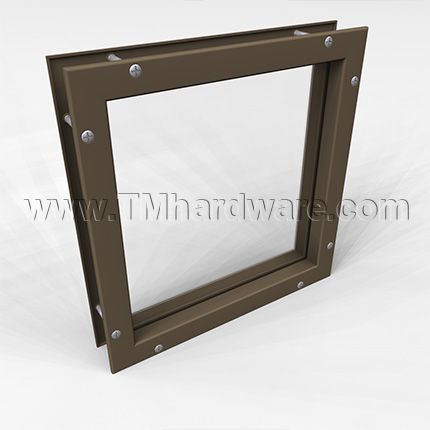

Activar Vision Lite Frame model is a Standard, Multi-Purpose Square Profile Vision Lite, compatible with glass up to 1/4” thick (glass not included). Applied with Thru-bolt mounting on 1-3/4" thick wooden or metal doors. Available in many sizes and finishes.

Glass Not Included.

PRICED PER PIECE - See product details and specs below

See tabs below for additional information
    • SKU
      ACVLF 1212B
    • Market price:$59.00
      • save 20%
    • Starting price: Price: $47.20 per item

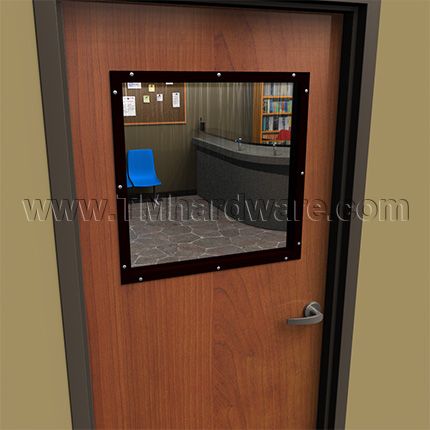

    This standard Activar VLF vision lite kit is applied with thru-bolt mounting on wooden or metal doors. Vision Lite frame is for 1/4" thick glazing.

    Material: 18 gauge CRS frame.

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 5" - 36"
    • Available lengths: 4" - 72"

    How to Order: Orders size is the Door Cut-out Dimensions. See product specs for details.

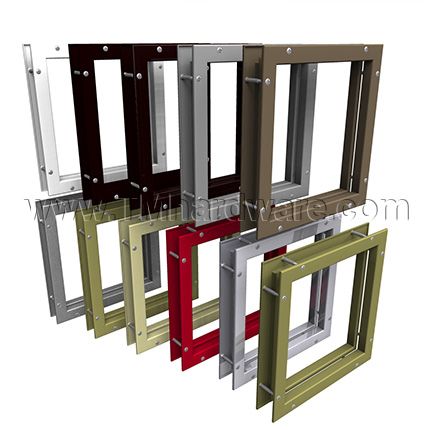

    Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes.

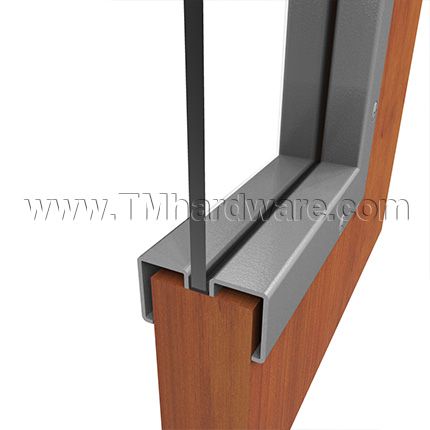

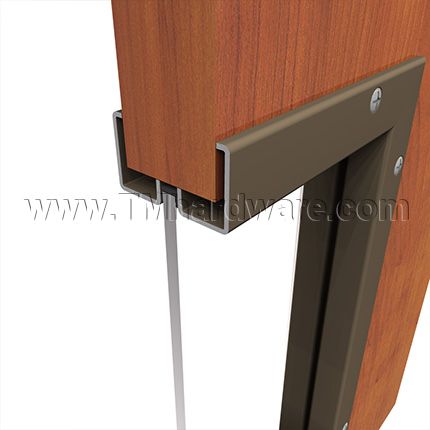

    Construction: 1-1/4" trim with radius corners, miltered and welded. Countersunk mounting holes on both sides.

    Door Type: For 1-3/4" door

    Fasteners Included: #8 x 32 flathead phillips head thrubolts with blank heads one side to match finish

    Glass Compatibility: 3/16” - 1/4” glazing to be ordered separately. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 1” under rough opening size.  Glass size is 1/4” under order size.

    Please note, glazing material not supplied with this frame, and can be purchased separately through our site

    Compliance Details: When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    Additional Options: Custom options are available, please contact us for details and pricing.

    • Additional intumescent tape for Positive Pressure UL10C
    • Optional Materials
      • 18 Gauge Stainless Steel #4 Finish
      • Galvanized Sheet for Exterior Applications
      • Electro Zinc Plating for Maximum Corrosion Resistance.
      • Lead Lines
    • Torx Fasteners
    • Add Welded Mullions to Your Vision Lite for Additional Security or the French Door Look.  Mullions Provided for Both Sides of Glass in 11 Standard Configurations for VLF Frames. See our Mullions for Visions Lite Frames
    • Customize your VLF shape or size. See our Custom Shapes and our Round, Half-Round & Radius Frames.
    • Specialty PAK - Create Your Own Combination of any of our Glazing Selections with Any Vision Lite Select Glazing Tape for UL10B Doors, and We Will Apply the Tape and Securely Package it for You.
    • VLFPVC - VLF Vision Lite with Hinged Metal Privacy Door Cover 16 gauge door on continuous hinges welded to vision lite.
    • Add a privacy screen to This Vision Lite, see our Privacy Screen for Vision Lite Frames

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year gurantee against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click to view all our Lite Kits.

      • SKU
        ACVLF 1212B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VLF
    • Size (W" x H")
      5" W x 20" H, 5" W x 35" H, 6" W x 24" H, 6" W x 26" H, 6" W x 27" H, 6" W x 30" H, 6" W x 36" H, 7" W x 22" H, 8" W x 18" H, 8" W x 30" H, 8" W x 32" H, 8" W x 36" H, 12" W x 12" H, 18" W x 32" H, 24" W x 24" H, 24" W x 30" H, 24" W x 32" H, 24" W x 34" H, 24" W x 36" H, 24" W x 60" H, 24" W x 64" H
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, AMS Beige Powder Coat, Sand Powder Coat, SC Beige Powder Coat, White Powder Coat, Silver Powder Coat, Black Powder Coat, Flat Black (US19), Brass Powder Coat

    When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for max exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    product ratings for VLF
