Activar Glazing WS, 1/4" WireShield Glass, Fire and Safety Rated, up to 4' x 8'

This wireshield glazing is 1/4" thick wired glass, and is both fire and safety rated for vision lites in wood and metal doors. The glass is compatible with the vision lite frames VLF, VLFEZ and VSL. Available in many sizes, choose from the dropdown below.

See full product details in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      ACWS 0434
    • Market price:$111.00
      • save 20%
    • Starting price: Price: $88.80 per item


    This wireshield glass is both fire and safety rated for vision lites in wood and metal doors.

    Description: WireShield glazing is annealed single glass with a safety film applied to one side & embedded 3/4" x 3/4” wire mesh. We recommend use of glazing compound or glazing tape on both sides of the glass, to minimize breakage. See our 45 Minute Fire Rated Glazing Tape and our 90 Minute Fire Rated Glazing Tape.

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 4"-48"
    • Available heights: 4"-96"

    How to Order: Glazing is labeled in accordance with exposed dimensions when installed in Activar Vision Lites.

    Thickness: 1/4"

    Weight: 3 lbs/sq. ft.

    Film: 7 mil Safety Film

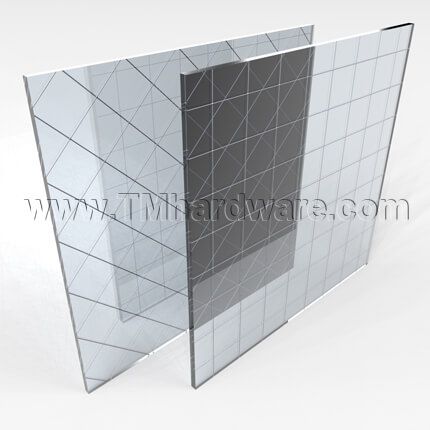

    Wire Pattern: Diamond (diagonal)

    Compliance Details: Fire rated up to 90 minutes with hose stream rating. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    Compatibility: This glass is compatible with the vision lite frames VLF, VLFEZ and VSL. A complete PAK of a lite kit and a WS glass can be ordered separately through our site.

    Additional Options: Custom option of Baroque (horizontal wire pattern) is available, please contact us for details and pricing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 10 year limited warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Activar Vision Lite Kit PAK, Complete with 1/4" WireShield / Tempered Glass

      • SKU
        ACWS 0434
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      WS
    • Size (W" X H")
      4" W X 34" H, 5" W X 26" H, 6" W X 21" H, 7" W X 17" H, 7" W X 35" H, 11" W X 11" H, 23" W X 23" H, 23" W X 29" H

    Click to Print

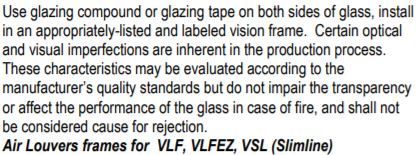

    CWS Installation Guide:

    WS Installation

    Listed and tested with UL Laboratories, a nationally-recognized testing laboratory (NRTL) and approved by OSHA.
    Tested in accordance with UL 9, UL 10B; NFPA 80, NFPA 252, NFPA 257; ASTM E2074, E152, E163, E2010-01; ULC CAN4-S104 & CAN4-S106.
    Listing: Fire Rated up to 90 minutes with hose stream rating.
    Impact Safety Rating: CPSC 16CFR 1201 (CAT I & II)
    Postive Pressure Rating: UL10C/UBC 7-2

    Rating

    This product is available for Quick Shipping with the stock sizes listed above. Please call to confirm the shipping time.

    Glazing above 32" in either width or height will be subject to an increased shipping fee.
