Pemko #FG3000S45 Fire Glazing Tape for Vision Lites, 45 Min. Rating, Wood and Metal Doors, Frames

Pemko #FG3000S45 Fire Glazing Tape for Vision Lites, 45 Min. Rating, Wood and Metal Doors, Frames
Pemko Manufacturing

Fire Glazing Tape with adhesive backing can assist glazing products to meet the necessary fire test requirements. The glazing tape takes up less space than other fire glazing products, thereby permitting larger vision lite glass size. This increases light flow and is an aesthetic improvement to the room. This Glazing tape has a 45 minute fire rating and has applications for both metal and wood doors and frames with single and multiple vision lites.

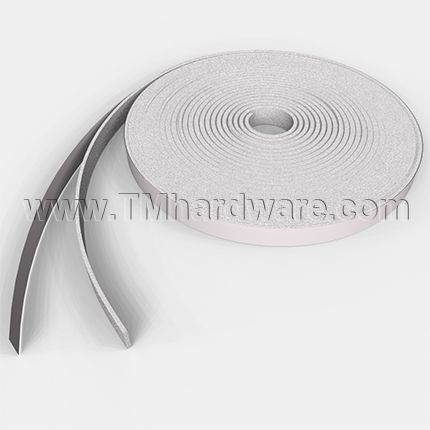

SOLD IN ROLLS OF 7', 8', 14', 16'

See tabs below for additional information
    • SKU
      PKFG3000S45-7
    • Market price:$17.32
      • save 10%
    • Starting price: Price: $15.59 per item


    Adhesive Fire Glazing Tape with a 45 minute fire rating assists glazing products to meet the necessary fire test requirements for 20 and 45 minute openings, with hose stream, on wood and metal doors with vision lites installed.

    The specially formulated high performance glazing tape takes up less space than other fire glazing products, thereby permitting larger sidelites, borrowed lites,
transom lites and vision frames, based. This increases light flow and is an aesthetic improvement to the room.

    Appropriate for use in 20 and 45 minute fire rated doors, in exterior fire rated applications.

    Key features of this product include:

    Dimensions: Glazing tape is .4375” wide and .0469” thick. Please see products specs.

    Material: This intumescent material is manufactured from ammonium phosphate in a polymeric binder. Intumescents are used to achieve passive fire protection for such applications as firestopping, fireproofing, gasketing and window casings. This product will expand with heat to seal gaps and will not flame. This product does not present a fire hazard. There is no toxicity hazard under normal conditions of use.

    Applications: Fire rating is relevant only to applications where door and frame are manufactured by companies that are classified by Underwriters Laboratories Inc.®. Verify all applications with your door and/or frame manufacturer. See Sample Applications in the Product Data Tab to the right to View Compliance Details and Technical data for various Fire Glazing Tape applications.

    1. Fire Glazing Tape in 20- and 45-minute Hollow metal Frame (Screen) for a sidelite, borrowed lite or transom condition.
    2. Fire Glazing Tape in 20- and 45-minute Hollow metal Door
    3. Fire Glazing Tape in 20- and 45-minute Wood Door
    4. Fire Glazing Tape in 20- and 45-minute Wood Doors and Wood Sidelite Frame/Borrowed Lite Frame/Transom Lite Frame

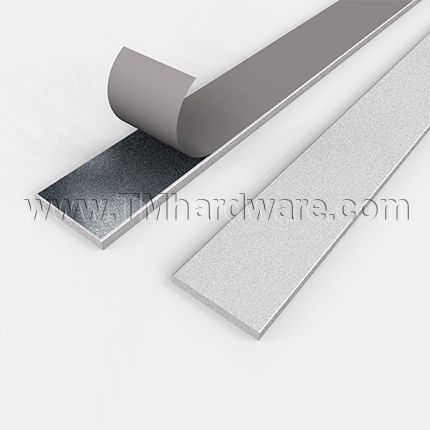

    Installation: Self adhesive backing permits an easy, no mess placement of glazing tape. Please read installation instructions before installing glazing tape to ensure best possible outcomes.

    For exterior fire-rated applications, a clear silicone caulk is recommended for water proofing and an additional foam tape is used to fully weatherproof the area.

    AVAILABLE ROLL LENGTHS: 7', 8', 14', 16'

    • 45 Minute Fire Rating
    • Self Adhesive Fire Glazing Tape
    • Intumescents are used to achieve passive fire protection
    • Assists in meeting building compliance codes
    • Allows for larger sidelites, borrowed lites,
transom lites and vision frames
    • Easy Installation
    • .4375” Wide x .0469” Thick

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click to view our Full Warranty Policy.

    Check out our 90 Minute Fire Glazing Tape For Hollow Metal and Wood Doors and Frames

      • SKU
        PKFG3000S45-7
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      FG3000S45

    Applications and Technical Data

    Click an application image below to view technical data.

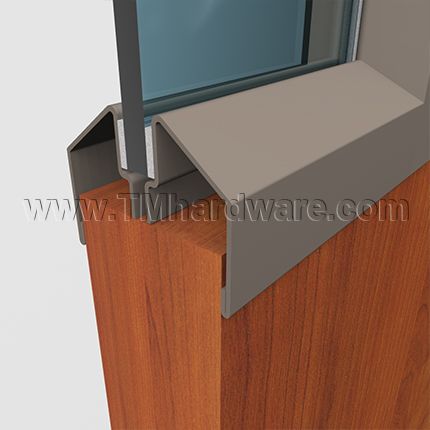

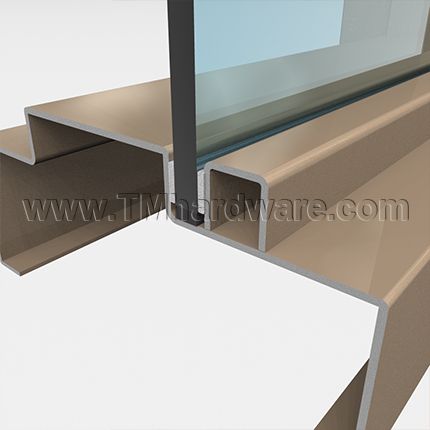

                               Tape in 20- and 45-minute Hollow metal Frames

          hollow metal frames for vision lives utilize 45 min fire glazing tape

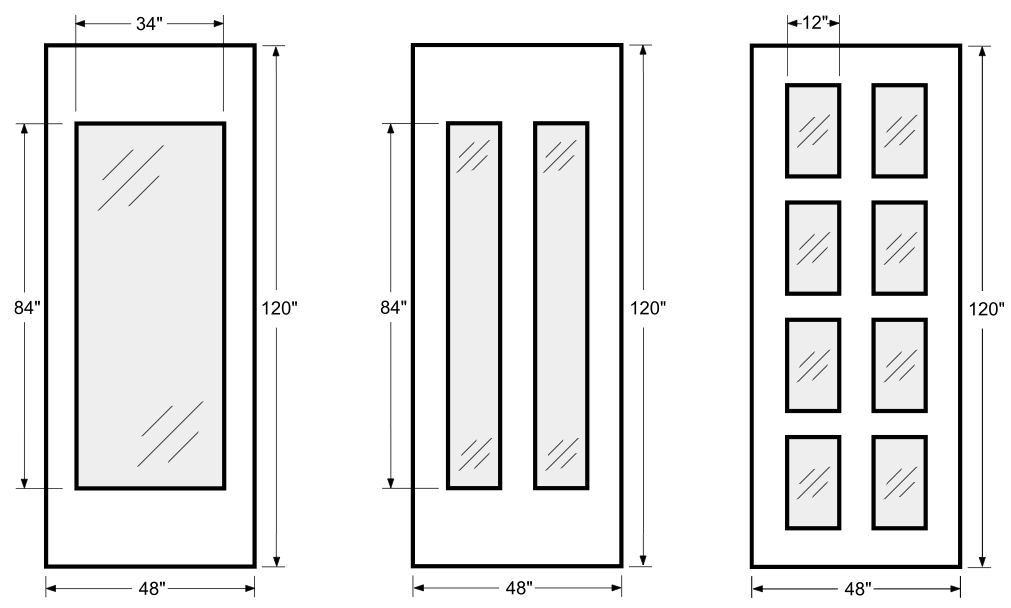

                                                                Tape in 20- and 45-minute Hollow Metal Doors

             hollow metal doors for vision lites utilize 45 min fire glazing tape

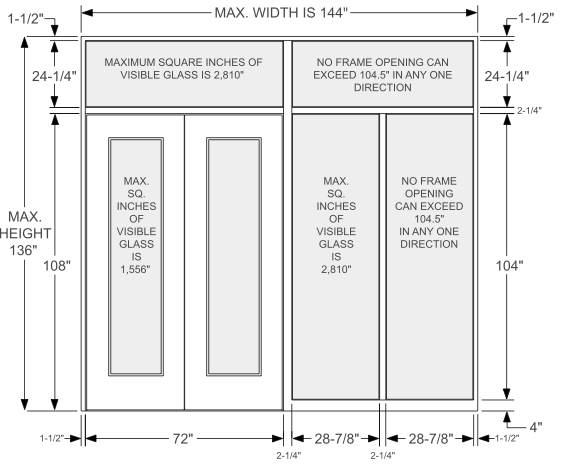

                Tape in 20- and 45-minute Wood Doors and Frames

    fire glazing tape for wood frames

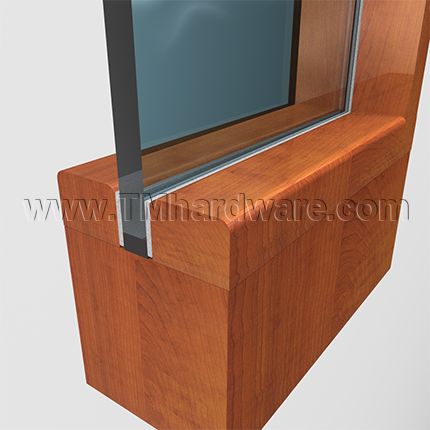

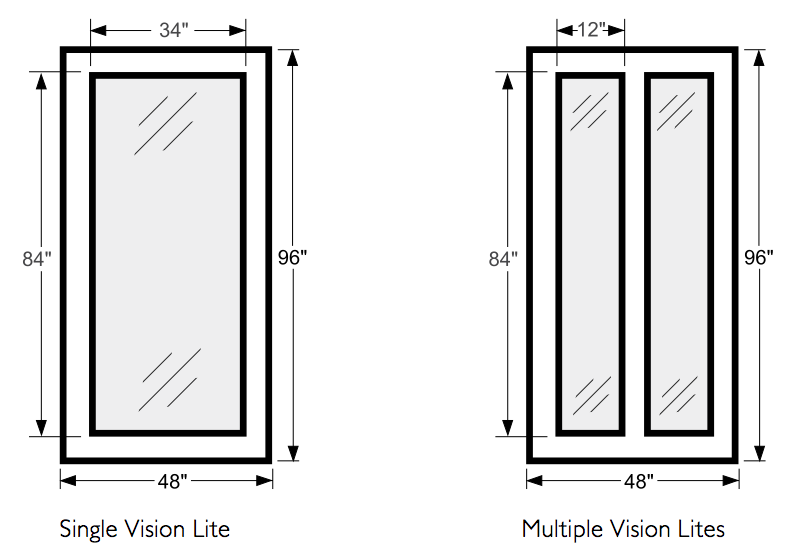

       Tape in 20- and 45-minute Wood Doors

    45 min fire glazing tape for wood doors



    Product Specs

    Click to Print

    Fire glazing tape with 45 minute fire rating
