Vision Kit PDVSL, Slimline Low Profile Beveled Frame with Privacy Door, 1-3/4" Doors, Glass up to 1/4”, up to 1' x 2'-11"

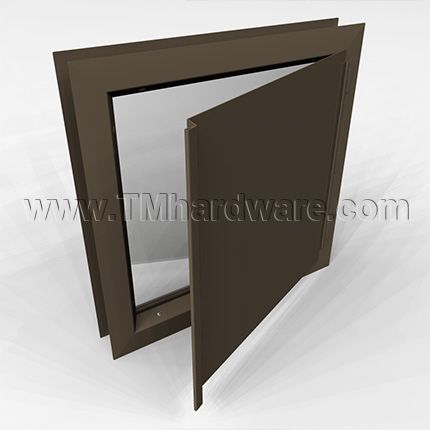

 Activar PDVSL is a Standard, Multipurpose Low Profile Vision Lite with a Metal Privacy Door. The Door is held securely in place in either Open or Closed Position with Magnets.This frame is compatiable for 3/16"- 1/4" glass (glass not included). Available in many different finishes and sizes.

PRICED PER PIECE- See product details and specs in tabs below

See tabs below for additional information
    • SKU
      ACPDVSL 0535B
    • Market price:$306.00
      • save 20%
    • Starting price: Price: $244.80 per item

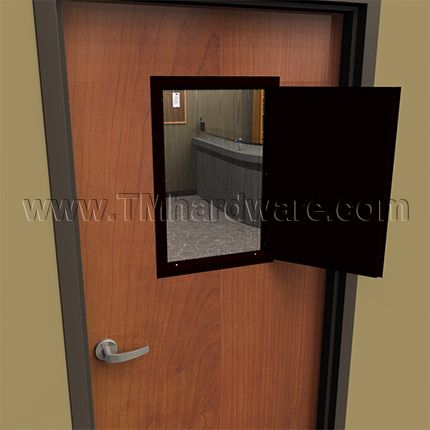

    This Standard, Multipurpose Low Profile Vision Lite Kit is compatiable with 1-3/4" thick door. Lite Frame PDVSL with Privacy Door can be applied to both wooden and metal doors.

    Material: 20 gauge CRS frame

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available widths: 5" - 12"
    • Available lengths: 4" - 35"

    How to Order: Orders size is the Door Cut-out Dimensions. See Product Specs for details

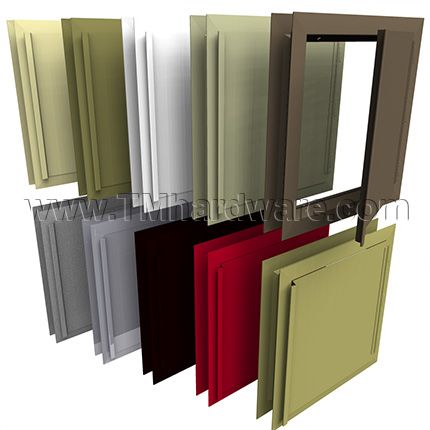

    Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes

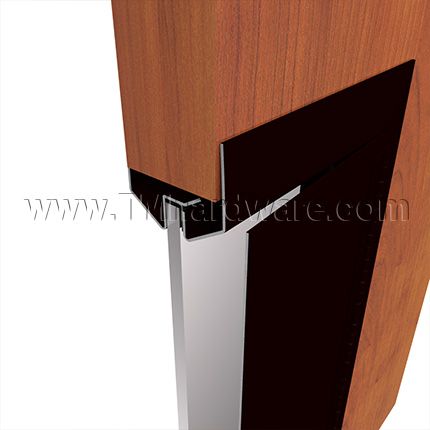

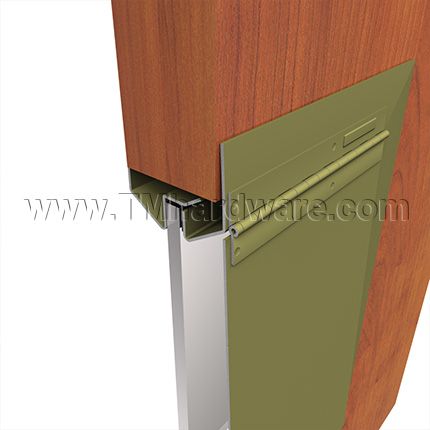

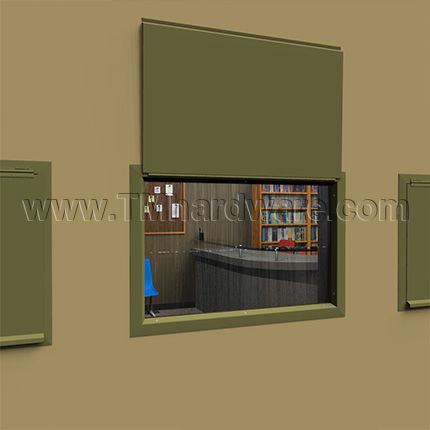

    Construction: 1-1/4” trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side. 20 gauge door on continuous hinges welded to vision lite. Angled door edge serves as pull. Can be used as side or top opening door. Specially-located magnets hold door securely in the closed and open positions.

    Door Type: For 1-3/4” door

    Fasteners Included: #8 x 1” flathead phillips SMS to match finish

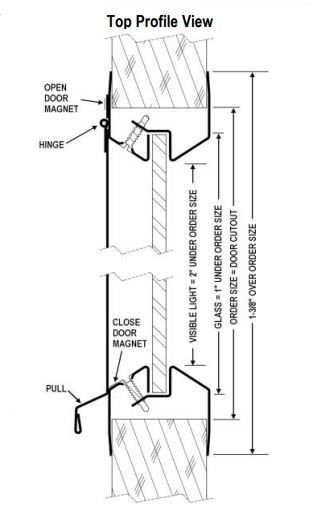

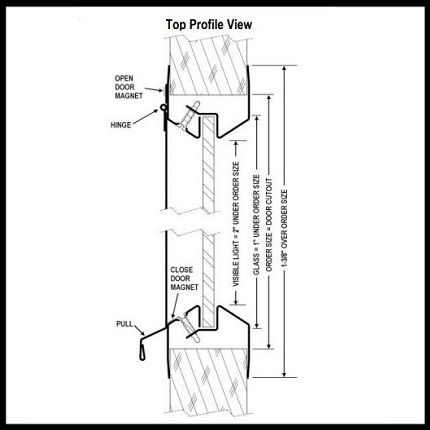

    Glass Compatibility: 3/16”- 1/4” glazing to be ordered separately. Visible light is 2” under rough opening size. Glass size is 1” under order size.

    Air Louvers Glazing to fit this Product: WS, TEMP or PPF.

    Please note, glazing material is not supplied with this frame, and can be purchased separately through our website.

    Compliance Details: This is not a fire rated product

    Additional Options: Custom options are available, please contact us for details and pricing

    • Torx Fasteners
    • Hex Head Fasteners
    • PAK Option: Order this vision lite with glass & glazing tape applied

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year gurantee against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click to view our Vision Lite VLFEZ, Beveled Aluminum Frame for 1/4" Glass

      • SKU
        ACPDVSL 0535B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      PDVSL
    • Size (W" x H")
      5" W X 35" H, 6" W X 27" H, 7" W X 22" H, 8" W X 32" H, 12" W X 12" H
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, Black Powder Coat, Flat Black (US19), White Powder Coat, SC Beige Powder Coat, Silver Powder Coat, Sand Powder Coat, AMS Beige Powder Coat, Brass Powder Coat

    Our products are designed to be maintenance free. However, it is recommended that the surfaces of the products be kept clear from debris and dirt. If latches, locks or hinges need to be lubricated, use a “3 in one” type light oil, removing excess with a cloth.

    Mantence for Door Louver 1500A
