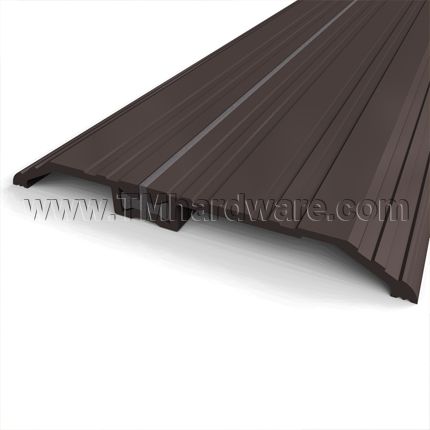

Pemko #252x3FG Utility Threshold, 5.125" Aluminum or Bronze with Thermal Break, .5" (H)

Thermal Barrier Thresholds are manufactured with a rigid vinyl key separating two pieces of aluminum which reduces the transfer of hot and cold temperatures from one side to the other. It has a height of .5" which is ADA Compliant. Available in various different finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK252x3AFG
    • Market price:$47.04
      • save 15%
    • Starting price: Price: $39.98 per foot


    Threshold is fitted with a black rigid polypropylene break which reduces heat loss and prevents frost build up on the interior surface of the saddle.

    Finishes: Different variations of aluminum and bronze mill finish (Oil Rubbed Bronze can also be purchased through our office for an additional 40% of standard bronze mill finish price)

    A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.

    Installation: Installation instructions and screws provided. Screws are colored to coordinate with door hardware. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold requires two rows of fasteners for installation. Drilling holes will be applied to the center line of each saddle piece for easy installation.

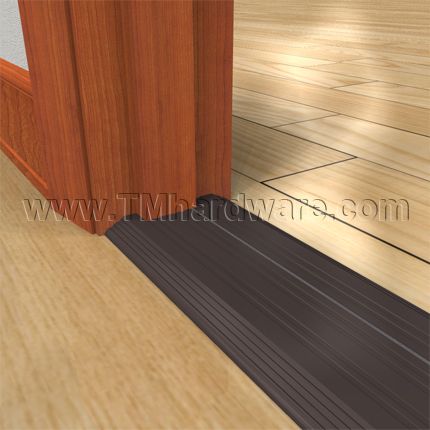

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For a 6” standard threshold, see our Utility Threshold, 6" Aluminum or Bronze with .5" Height.

      • SKU
        PK252x3AFG
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      252x3_FG

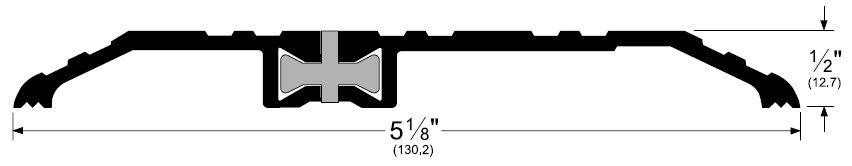

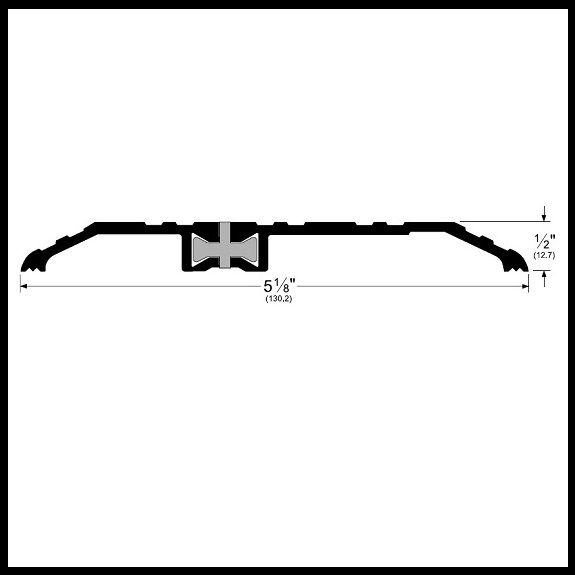

    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        5.125" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Flat Utility Threshold
      • Material
        Aluminum, Brass
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Bronze Mill Finish (Brass), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
    • Compliance Details
      • Compliance Details
        UL Classified, ADA Compliant, BHMA Certified, Fire Rated, GreenGuard Gold Certified
      • Warranty
        5 Year Limited Warranty

    Click to Print



    P252x3FG Product Specs:

    Click to Print



    P252x3FG Installation Guide:

    Click to View Ratings Explained


    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
    • Bronze Mill Finish (Brass) - US4 / 720
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688
