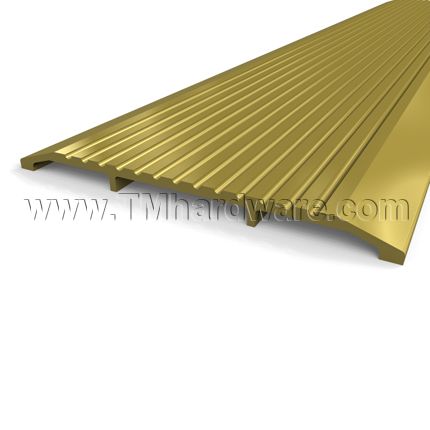

Zero #647B Utility Threshold, 7" Bronze, .5" Height

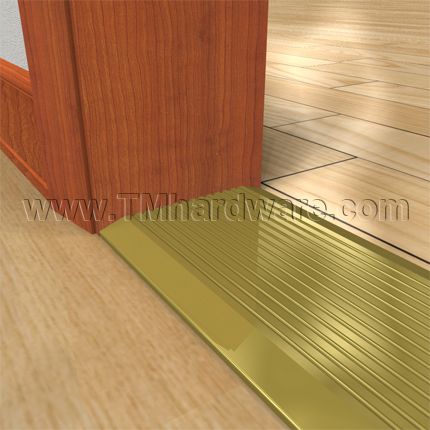

This Zero #647B Bronze Threshold is wheelchair accessible and fire rated. It finishes off doorways nicely and creates a smooth transition between floor surfaces, minimizing dust, drafts and water infiltration. Made from .188" thick brass, sure to withstand extreme usage. Options of epoxy abrasives and full body strength available. Length is custom cut to size.
PRICED PER FOOT
Width: 7"
Height: .5"
Thickness: .188"
Length: Custom cut to size
Finish: Bronze Mill Finish (Oil Rubbed Bronze can also be purchased through our office)

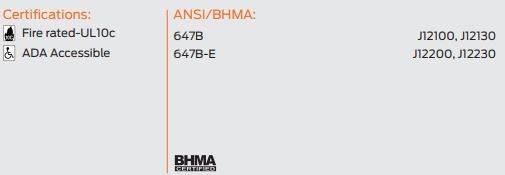

Compliance Details: Fire Rated, ADA / Wheelchair Accessible
Installation: Installation Instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: drilling for threshold is not supplied unless specified and template is provided. Please contact us us or call us at 845-388-1300 for details.
Additional Options- Select from options above:
- Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

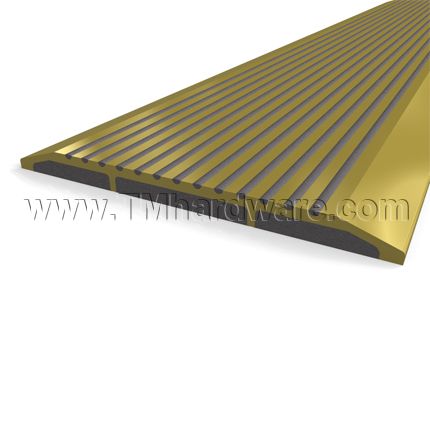

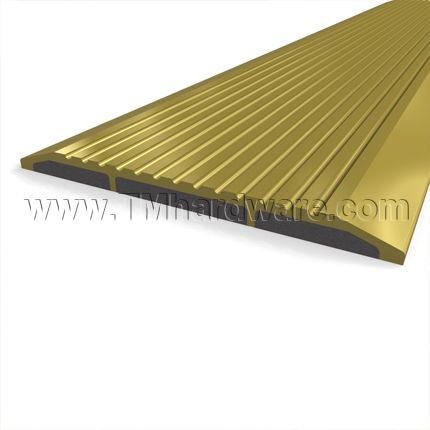

- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, and industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Click Here to view more Wheelchair Accessible and Utility Thresholds.
-
QuickShipNo
-
ManufacturerZero International
-
MPN657B
-
OptionsStandard Bronze, Epoxy Abrasives, Full Body Strength, Both Epoxy and Full Body

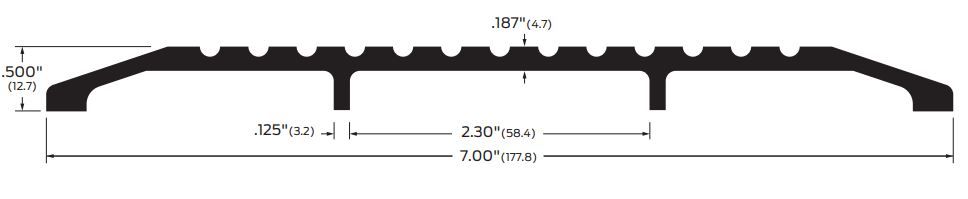

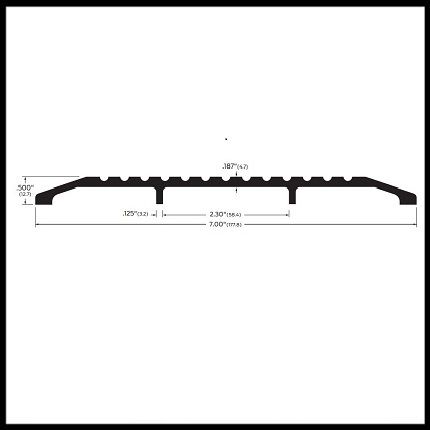

- Dimensions
-
Overall Height.5" Height
-
Overall Width7" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.187" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialBrass
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishBronze Mill Finish (Brass)
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
