Zero #355, Automatic Door Bottom, Mortised for Metal Door with Double Neoprene Seal, .5" Drop

Zero #355, Automatic Door Bottom, Mortised for Metal Door with Double Neoprene Seal, .5" Drop
Product Specs of Z355 Automatic Door Bottom Zero International 355 Automatic Door Bottom Mortised in Metal Door Z355 Automatic Door Bottom Mortised in Door with Seal Lowered Z355 Metal Door Automatic Door Bottom

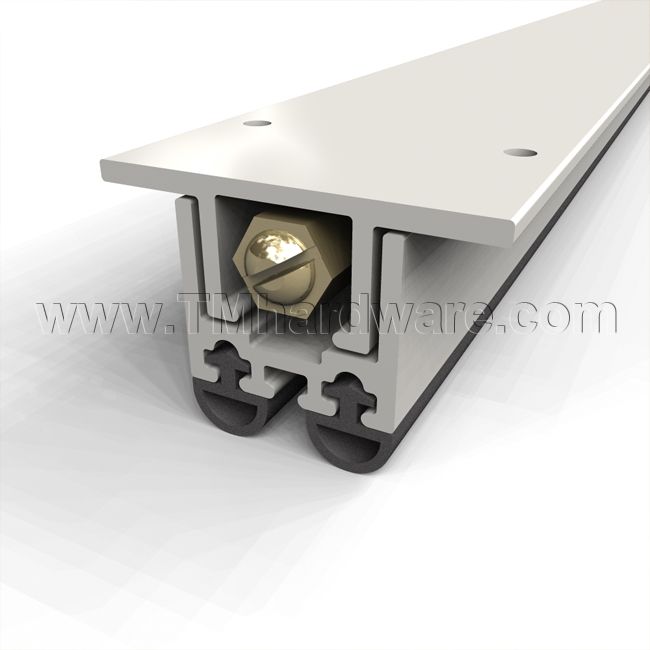

This Zero International #355,  automatic door bottom is designed to be fully mortised into hollow metal doors. It is crafted from high quality material that will ensure smooth operation. It is fitted with a two neoprene bulbs to ensure a quality seal. Seal drops up to .5" and is fire rated. Product is non-handed and custom cut to size up to 54" Lengths.

How to Order: Selecting Seal Type and Size required will determine your total price. To determine size required see How to Measure for an Automatic Door Bottom.

Price: $55.52
Size Range
Size (Inches)
Qty
Save to wishlist
Made in USA
SKU Z355A|36
Shipping See Shipping Tab Below
Description

The fully mortised aspect of this automatic door bottom is great for high end designer doors and luxury hotels and condo units that prefer their doors retain their clean, unobtrusive look.

Door Compatibility: Designed for hollow metal doors with minimum 1.5" wide cavity.

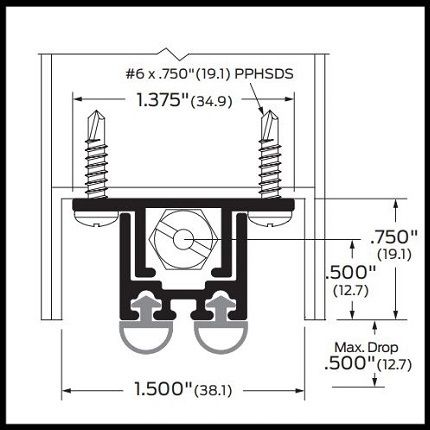

Dimensions: 1.375" W x .875" H x Custom Cut Length up to 54". See product specs for more details. To determine sizing, see How To Measure For An Automatic Door Bottom

Seal: Fitted with two neoprene bulb seals that can seal gaps up to .5"

Available Finishes: Aluminum Mill Finish

Handing: This product is non-handed, can be applied to both right and left handed doors.

Compliance Details: Fire Rated, UL Listed

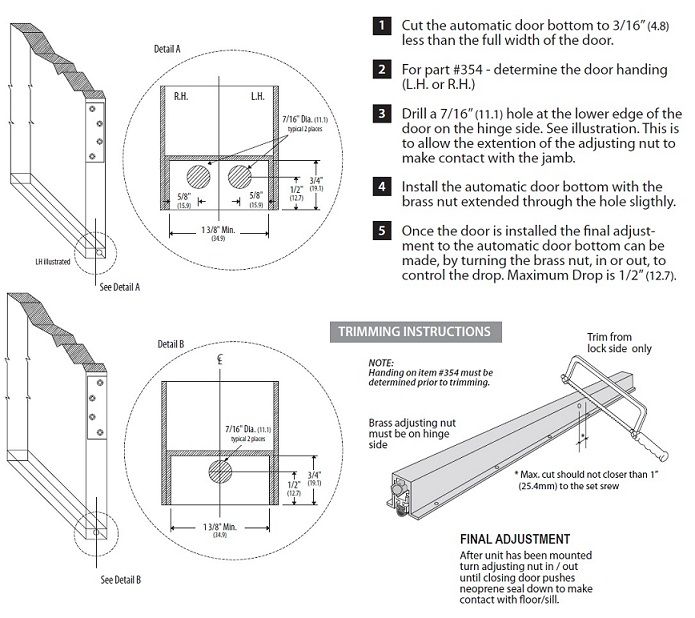

InstallationInstallation instructions and screws provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

For a handed version, see our Zero #354 Mortised Automatic Door Bottom.

How It Works

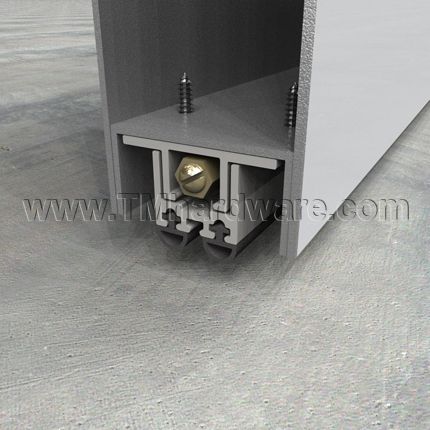

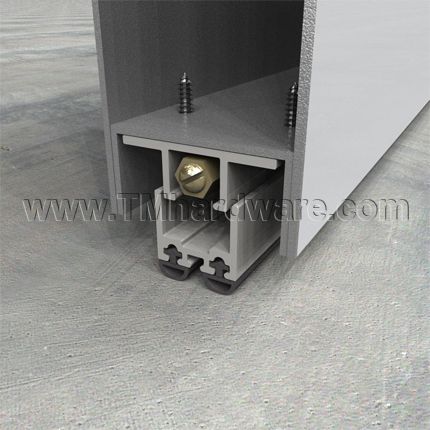

How it Works: Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

See also About Automatic Door Bottoms.

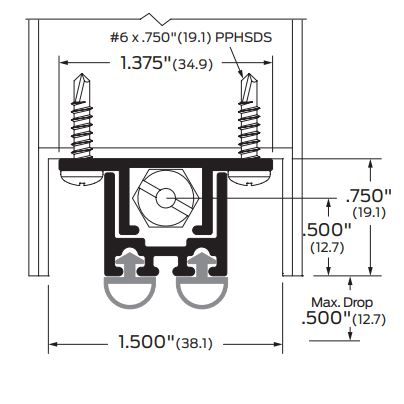

Product Specs
Installation

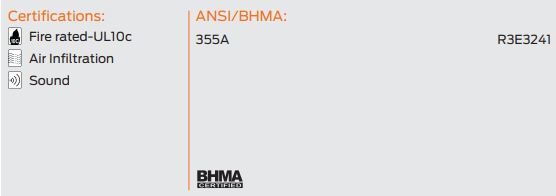

Compliance Details

compliance for z355

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 2-3 weeks to ship
    • *Similar or equivalent products from other manufacturers may be available to ship sooner. For expedited processing please contact our customer service department.
    • EXCEPTIONS: Gold Anodized Aluminum and Black Anodized Aluminum Products require 2-6 week processing time.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
Reviews
Product reviews are only available to verified buyers of this product. To leave a review, please refer to the product review email we sent you.
pros
  • Good Design (2)
  • Easy To Use (1)
  • Quality Materials (1)
cons
best uses
  • Small Jobs (1)
  • Inside (1)

Reviewed by 2 customers

Displaying reviews 1-2

By None

from Michigan

About Me Avid Do-It-Yourselfer

Verified buyer
5.0
Looks like it will work out just fine
11/16/16
pros
  • Good Design
cons
best uses
  • Small Jobs
Comments about Zero #355, Automatic Door Bottom, Mortised for Metal Door with Double Neoprene Seal, .5" Drop:
After installing the door bottom it looks like it will work even without needing to adjust it. However, I did have to make modifications in the channel of my old door in order to get the new piece to fit correctly. This was not the "fault" of the new door bottom, but in the design of the old door.
Bottom Line Yes, I would recommend this to a friend

By Shuggie

from Rancho Santa Fe, CA

About Me Casual Do-It-Yourselfer

Verified buyer
4.0
Great product, easy to install
05/30/15
pros
  • Easy To Use
  • Good Design
  • Quality Materials
cons
best uses
  • Inside
Comments about Zero #355, Automatic Door Bottom, Mortised for Metal Door with Double Neoprene Seal, .5" Drop:
Used this for the door to my wine cellar. great solution for keeping cool air in and hot air out.
Bottom Line Yes, I would recommend this to a friend
