Automatic Door Bottom, Handed, Mortised for Metal Door with Double Neoprene Seal, .5" Drop

This product has been discontinued. For a similar product, please see our

Mortised Automatic Door Bottom for Hollow Metal Doors with Double Neoprene Seal.

See tabs below for additional information

Seal Type
Size Range
Size (Inches)
Handing

This product has been discontinued. For a similar product, please see our

Mortised Automatic Door Bottom for Hollow Metal Doors with Double Neoprene Seal.

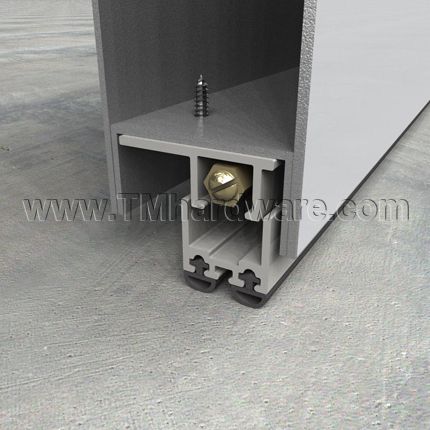

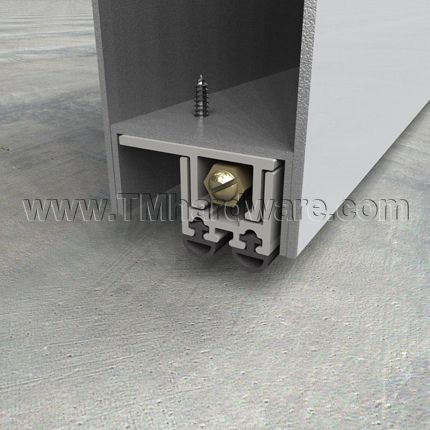

The fully mortised aspect of this automatic door bottom is great for high end designer doors and luxury hotels and condo units that prefer their doors retain their clean, unobtrusive look.

Door Compatibility: Designed for hollow metal doors with minimum 1.5" wide cavity.

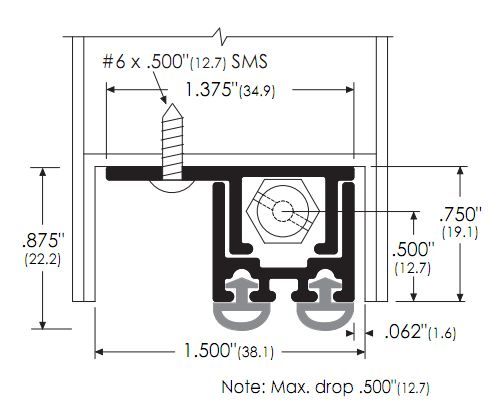

Dimensions: 1.375" W x .875" H x Custom Cut Length up to 54". See product specs for more details. To determine sizing, see How To Measure For An Automatic Door Bottom.

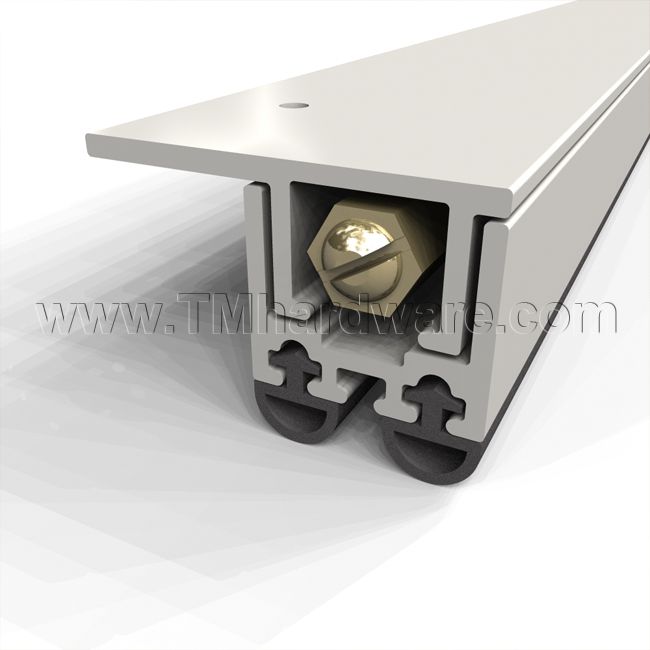

Seal: Fitted with two neoprene bulb seals that can seal gaps up to .5"

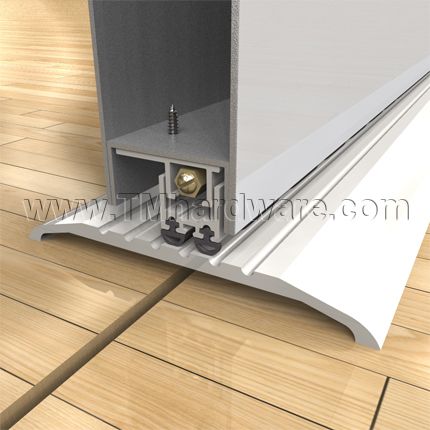

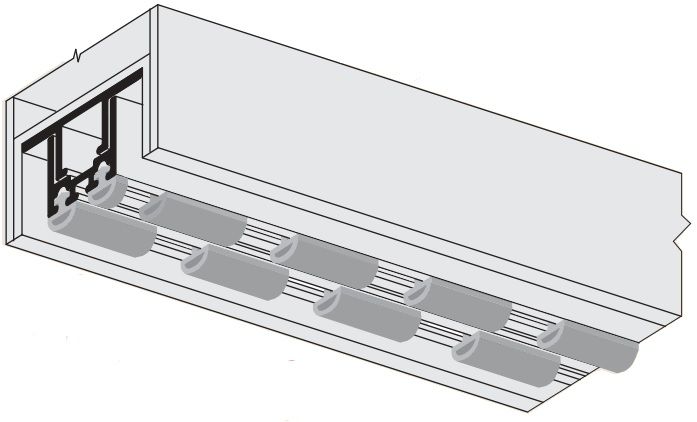

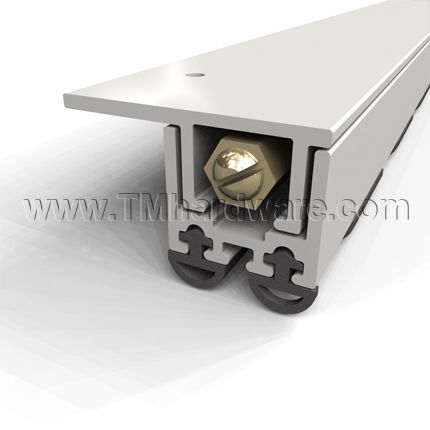

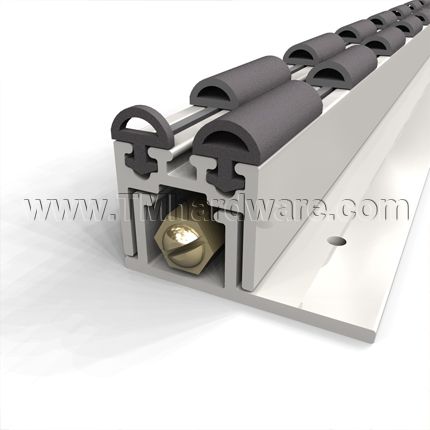

FLO Seal Option: FLO Seal is notched to allow for air circulation, but prevents transfer of light. This option is great for hotels and other environment where privacy must be maintained while allowing air circulation between rooms.

Available Finishes: Aluminum Mill Finish

Handing: This product is handed, please select required handing above. Not sure which handing is required for your door? See How to Determine Door Handing / Swing.

Compliance Details: Fire Rated, UL Listed, ITS Warnock Hersey Listed

Installation: Installation instructions and screws provided.

This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

For a non-handed version, see our Mortised Automatic Door Bottom #Z355.

- SKU
  ZR354A_18-36
QuickShip
No
Manufacturer
Zero International
MPN
354
Seal Type
Standard Seal, FLO Seal
Handing
Right Handed, Left Handed
Finishes
- Finish
  Flat Black (US19)
Compliance Details
- Warranty
  5 Year Limited Warranty

How it Works
How it Works: Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles! See also About Automatic Door Bottoms.

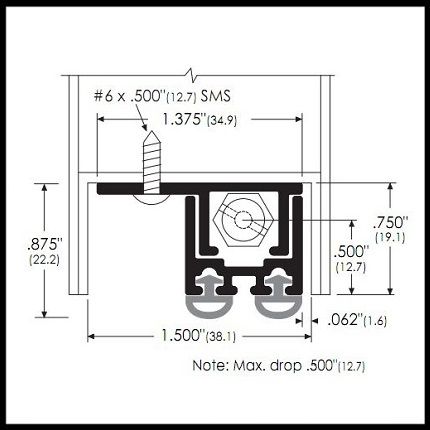

Product Specs
Click to Print Product Specs
Standard Seal:	FLO Seal:

Compliance Details
ANSI / BHMA Code Compliance: R3B324
