Accentra 5405LN Storeroom Lever, Grade 1 - Custom Options

Accentra 5405LN Commercial Locks Satin Chrome (US26D) Finished
Accentra

Designed for industrial and commercial use, the Accentra (Formerly Yale) 5405LN Cylindrical Grade 1 Storeroom Lever is an ideal choice for doors requiring latching with keyway. The 5405LN is certified to ANSI/BHMA Grade 1standards and is 3 hour UL Fire Rated.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      9 lbs
    • SKU
      YL-B-AU-5405LN-626
    • Market price:$930.93
      • save 35%
    • Starting price: Price: $605.10 per item


    Designed for industrial and commercial use, the Accentra 5405LN Cylindrical Grade 1 Storeroom Lever is an ideal choice for doors requiring latching with keyway. The 5405LN is certified to ANSI/BHMA Grade 1standards and is 3 hour UL Fire Rated.

    Click here to See Accentra  5400 Grade 1 Catalog.

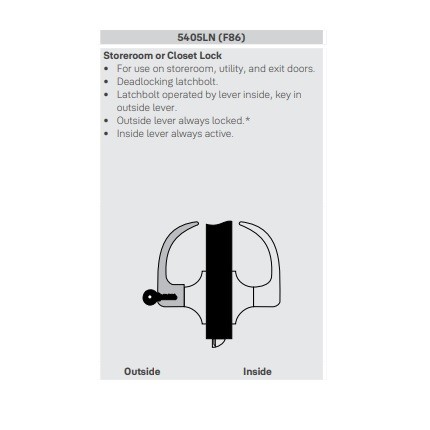

    5405LN Function - Storeroom and Closet:

    • For use on storeroom, utility, and exit doors.
    • Deadlocking latchbolt
    • Latchbolt operated by lever inside, key in outside lever.
    • Outside lever always locked.
    • Inside lever always active.

    Innovative Features Include:

    • Free wheeling lever mechanism prevents vandalism and reduces maintenance
    • Wear resistant chassis plates
    • Heavy duty lever return springs and thru-bolting

    Benefits Include:

    • Heavy-Duty: Rugged Grade 1 construction offers greater reliability and resists wear-and-tear
    • Secure: Innovative features protect against damage and vandalism
    • Versatile: Range of functions and options offer an ideal solution for a variety of commercial applications
    • Easy installation: Adjustable rose allows for easy adjustment on different door thicknesses
    • Strong & Reliable: ANSI/BHMA Grade 1 certification for long-life and durability

    Specifications:

    • Backset: 2-3/4" Standard
    • Door Thickness: Adjustable for doors 1-3/4" - 2"
    • Handing: Non Handed, Field Reversible
    • Latchbolt: 1/2" Throw
    • Strike: ANSI Strike 4-7/8" x 1-1/4" x 1-1/4" lip to center

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 7 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For a more economical options, see our Accentra 4702LN Grade 1 Passage and Closet Lever

      • Weight
        9 lbs
      • SKU
        YL-B-AU-5405LN-626
    • QuickShip
      Yes
    • Manufacturer
      Accentra
    • MPN
      AU-5405LN; MO-5405LN; PB-5405LN;
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Accentra 5400 Series
      • Lock Type
        Lever
      • Lever / Knob Style
        Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB)
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ASA Strike, 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Keyway
        Schlage "C" Type, SFIC IC Prep (Less Cylinder)
      • Keying Type
        Keyed Random
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/4" - 2-1/4" Thick Door
      • Keys Provided
        2 Nickel, Silver Keys Provided
      • Handing
        Reversible
      • Function
        Storeroom
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
    • Finishes
      • Finish
        Black Suede Powder Coat, Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), White Suede Powder Coat, Satin Nickel (US15), Black Painted (693)
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.2 Grade 1, A156.115 Door Prep
      • Warranty
        7 Year Warranty
