Accentra Augusta, Door Handle Lockset, 5400LN, Heavy Duty, Grade 1 - Custom Options

Accentra Door Handle 5404LN, Augusta Lever, Bright Brass Finish
Accentra

Accentra (Formerly Yale) Augusta Lever Door Handle is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 5400LN is certified to ANSI/BHMA Grade 1 standards and is UL-Fire Rated.

Choose door functions and finishes from the dropdown menu. Functions are explained in detailed description below.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      5 lbs
    • SKU
      YL-AU-5404LN-605
    • Market price:$948.09
      • save 35%
    • Starting price: Price: $616.26 per item


    Accentra Door Handles Locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price.

    Functions:  See FUNCTION tab for details

    Benefits:

    • Versatile: Field reversible and other product options available to suit all applications.
    • Economical: Priced affordably for projects of all budgets
    • Secure: Quality security from a trusted brand for over 170 years.
    • Strong and Reliable: ANSI / BHMA Grade 1 certified for long life

    Features:

    • Finish: selection of finishes available, select above
    • ADA Compliance: for ease of accessibility
    • Keyway: All cylinders furnished standard 6-pin, keyed random in Accentra® PARA keyway, pinned to Accentra  .019" specification. Each cylinder furnished with two nickel silver keys. Optional keyways available upon request, extended lead times may apply. Please contact our customer service for requests.
      • Optional keyways :
        • Schlage® C
        • Schlage® E
        • Corbin Russwin L4
        • Corbin 60 Keyway
        • Russwin D1
        • Sargent® LA
    • Interchangeable Cores: Optional Handles with Small or Large Format interchangeable cores with a variety of compatible cores are available. Please contact our customer service to request this option
    • Handing: Field reversible for ease of ordering and installation
    • Door thickness: 1-3/4", self adjustable to 2-1/4 in the field
    • Backset: 2-3/4" ( Note: 2-3/8" backset is available for request, please specify it on the note if needed )

    Cylinders:

    • Conventional core is provided with a cylinder (Accentra PARA Keyway).
    • Cylinder Finish: Cylinders are supplied in US3 Polished Brass and US26D Satin Chrome Finish only.

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 7-year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to view our Accentra Monroe Door Handle, 5300LN, With Free Wheeling Mechanism, Grade 2 - Custom Options

      • Weight
        5 lbs
      • SKU
        YL-AU-5404LN-605
    • QuickShip
      Yes
    • Manufacturer
      Accentra
    • MPN
      AU-5400LN
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, die-cast, zinc-plated, chromated
      • Collection / Series
        Accentra 5400LN Series
      • Lock Type
        Lever

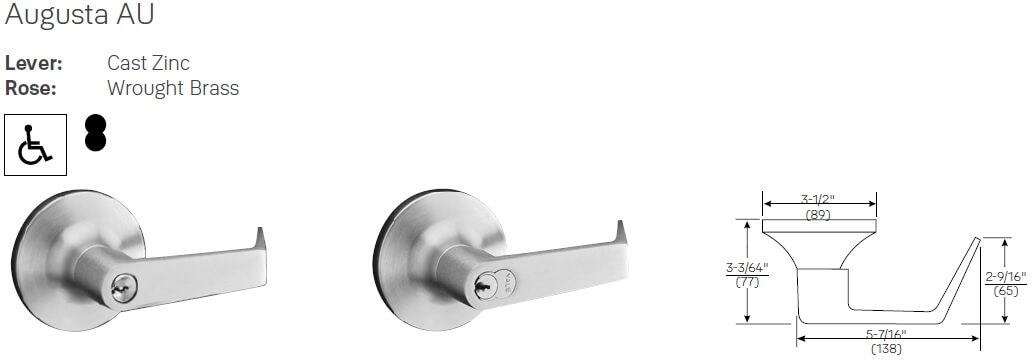

      • Lever / Knob Style
        Augusta Lever (AU)
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ANSI 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Keyway
        Accentra PARA Keyway
      • Keying Type
        Conventional Core, Interchangeable Core
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/4" - 2-1/4" Thick Door
      • Keys Provided
        2 Nickel, Silver Keys Provided
      • Handing
        Reversible
      • Function
        Entry Lock (Push Button), Entry Lock (Turn Button), Storeroom or Closet, Service Station, Classroom, Corridor, Communicating Classroom, Communicating Storeroom, Communicating, Apartment, Exit or Public Toilet, Intruder Classroom Security, Utility, Asylum or Institutional, Passage, Communicating Passage, Exit, Patio Privacy, Privacy, Bedroom or Bath, Privacy, Single Dummy, Double Dummy
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
      • Locking Mechanism
        Push Button, Thumbturn, Key
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Aged Bronze (US11E), Satin Nickel (US15), Bright Chrome (us26), Satin Chrome (US26D), Paint Black (US19B), Black Suede Powder Coat (BSP), White Suede Powder
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.2, Series 4000 Grade 1
      • Warranty
        7 Year Limited Warranty
