Accentra Door Lock, 5401LN Passage or Closet Door Handle, Grade 1 - Custom Options

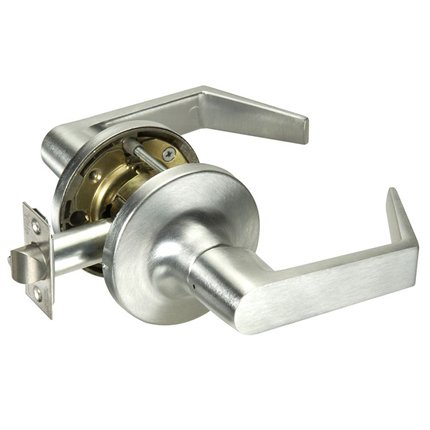

Accentra 5401LN Passage Augusta Lever in Satin Chrome
Accentra

This Accentra (Formerly Yale) Door Handle is designed for industrial and commercial use, Grade 1 Passage and Closet Door Handle, it is an ideal choice for doors requiring latching, without locking. The 5401LN is certified to ANSI/BHMA Grade 1standards and is 3 hour UL Fire Rated.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      9 lbs
    • SKU
      YL-AU-5401LN-626
    • Market price:$795.80
      • save 35%
    • Starting price: Price: $517.27 per item


    Designed for industrial and commercial use, the Accentra 5400 Series Grade 1 Door Handle offers rugged reliability and performance in a range of functions and features.

    Click here to See Accentra 5400 Grade 1 Catalog.

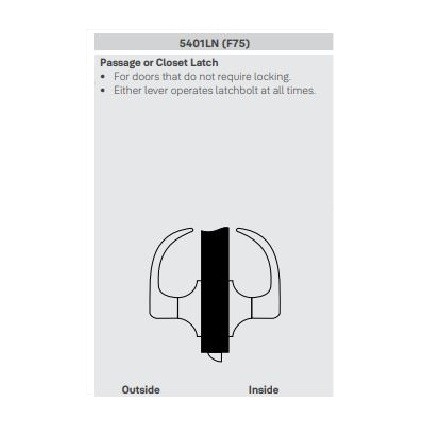

    5401LN Function - Passage or Closet:

    • For doors that do not require locking.
    • Either lever operates latchbolt at all times

    Innovative Features Include:

    • Free wheeling lever mechanism prevents vandalism and reduces maintenance
    • Wear resistant chassis plates
    • Heavy duty lever return springs and thru-bolting

    Benefits Include:

    • Heavy-Duty: Rugged Grade 1 construction offers greater reliability and resists wear-and-tear
    • Secure: Innovative features protect against damage and vandalism
    • Versatile: Range of functions and options offer an ideal solution for a variety of commercial applications
    • Easy installation: Adjustable rose allows for easy adjustment on different door thicknesses
    • Strong & Reliable: ANSI/BHMA Grade 1 certification for long-life and durability

    Specifications:

    • Backset: 2-3/4" Standard
    • Door Thickness: Adjustable for doors 1-3/4" - 2"
    • Handing: Non Handed, Field Reversible
    • Latchbolt: 1/2" Throw
    • Strike: ANSI Strike 4-7/8" x 1-1/4" x 1-1/4" lip to center

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 7 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For a more economical options, see our Accentra 4701LN Grade 1 Passage and Closet Door Handle

      • Weight
        9 lbs
      • SKU
        YL-AU-5401LN-626
    • QuickShip
      Yes
    • Manufacturer
      Accentra
    • MPN
      5401LN
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Accentra 5400 Series
      • Lock Type
        Lever
      • Lever / Knob Style
        Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB)
    • Specifications
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ANSI 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/4" - 2-1/4" Thick Door
      • Handing
        Reversible
      • Function
        Passage
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Black Painted (693), Black Suede Powder Coat, White Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ANSI / BHMA A156.2, UL/cUL - listed for 3 hour fire doors, ADA Compliant, Windstorm Resistant
      • ANSI Designation
        A156.2 Grade 1
      • Warranty
        7 Year Warranty

    Click to Print Yale 5400 Series Product Templates

    Click to Print Yale 5400 Series Installation Guide
