Adams Rite, Two Point Deadbolt, MS1837 Series, For Double Wood Doors

Adams Rite, Two Point Deadbolt, MS1837 Series, For Double Wood Doors
Adams Rite

This model is a two point deadbolt that provides maximum security for double wood doors. A single turn of a key simultaneously drops a stainless steel hexbolt into the threshold and pivots the MS bolt into the opposite leaf. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in a choice of cylinder heights and finishes, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      ARMS1837-313
    • Market price:$290.00
      • save 35%
    • Starting price: Price: $188.50 per item


    This two point deadbolt provides maximum security for double wood doors.

    Please note, threshold strike plate, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

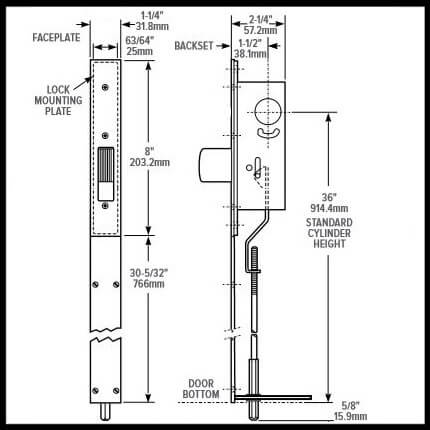

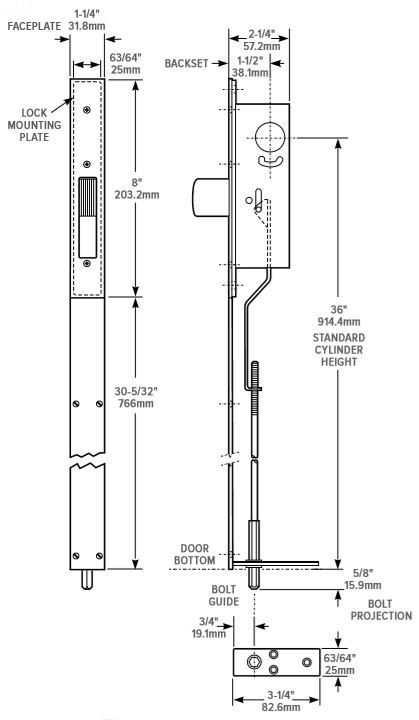

    Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole.

    Cylinder Height: Distance from the bottom of the door to the center of the cylinder hole.

    • Standard: 36" (914.4 mm)
    • Custom: up to 65" (1,651 mm) - choose from the dropdown above.

    Face Plate: Flat, two piece plate extends to the bottom of the door.

    MS Bolt: Maximum security bolt that gets locked into the opposite leaf.

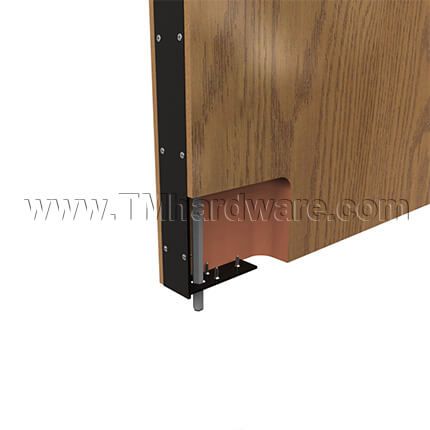

    Hexbolt: Hexagon shaped bolt that gets locked into the threshold.

    Strike: 4001-011 aluminum strike plate with steel plated dust box provided for opposite leaf. The dust box prevents chips, sawdust and other debris from entering the strike. Threshold bolt strike can be 1/2" (12.7 mm) diameter hole in metal threshold or, if threshold is wood, 4005 Strike is available separately.

    Installation: For details on how to install this deadlock, see our Installation Instructions.

    Operation: 360° turn of the key or thumbturn projects the counterbalanced bolt into the opposite door and drops the bolt into the threshold. The key can be removed only when the bolts are in a positively locked or unlocked position. The lock accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam, available separately. The lock accepts a cylinder from either or both sides.

    Compatible Cylinders:

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadbolt 1830, Bottom Rail Locking, For Ultra Narrow Stile Doors.

      • SKU
        ARMS1837-313
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      MS1837
    • Product Details
      • Included Parts

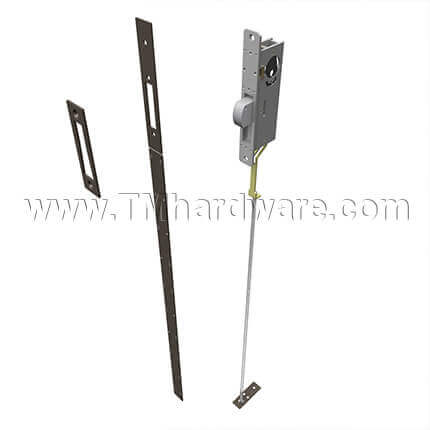

        Deadlock, Faceplate, Strike Plate, Rod, Bottom Bolt Guide, Attachment Pin, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • Faceplate Type
        Double Faceplate
      • Bolt Material
        MS Bolt: Eight-ply laminated steel with alumina-ceramic core to deter hacksaw attack
        Hexbolt: Stainless Steel
      • Strike Material
        Aluminum strike plate with steel plated dust box
      • ANSI / BHMA Grade
        Grade 1
    • Dimensions
      • Case Dimensions
        2-1/4" L x 1" W x 6" H
      • Faceplate Dimensions
        Height of top piece: 8"
        Height of bottom piece: 30-5/32"
      • Bolt Dimensions
        MS Bolt: 5/8" x 1-3/4" x 2-7/8"
        Hexbolt: 3/8" Height
      • Bolt Throw
        MS Bolt: 1-3/8" Throw
      • Cylinder Backset
        1-1/2" Backset
    • Installation
      • Door Type
        Swinging Door, Double Door
      • Door Material
        Wood
    • Special Features
      • Maximum Security
        Yes
    • Finishes
      • Finish
        Dark Bronze Anodized Aluminum (313), Black Anodized (335), Clear Anodized Aluminum (US28), Polished Brass (US3), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
