Adams Rite Deadlock 1875, Two Point Deadlock, For Roll-Up Doors

Adams Rite 1875 Deadlock (actual product image)
Adams Rite

This model is a two point deadlock for roll-up doors, security screens or similar doors. Two-point locking is achieved using two bolts, which are operational from either or both sides of the deadlock. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR1875
    • Market price:$219.00
      • save 35%
    • Starting price: Price: $142.35 per item


    This two point deadlock is for roll-up doors, security screens or similar doors.

    Please note, turn, cylinder and/or thumbturn are not included with this product and are available for purchase separately.

    Cylinder Backset: Bolt arms require inside stile clearance of 1-11/16" (42.9 mm) on one side of cylinder center and 1" (25.4 mm) on the other side.

    Bolt: Threaded for 1/4" - 20 rods. Due to design variations in this type of door, no standard bolt can be offered to fit all makes of doors. Please contact us for more information on bolts, rods, bolt guides and strikes to fit individual door designs.

    Finish: Zinc plated steel (603)

    Installation: For details on how to install this deadlock, see our Installation Instructions.

    Operation: 90° rotation of the turn projects or retracts the bolts. 360° turn of the key deadlocks the mechanism, preventing operation of the turn in either the locked or unlocked position.

    Lock Design: The lock accepts any standard mortise cylinder with 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter and MS® cam, available separately. The lock accepts a cylinder from either or both sides.

    Compatible Cylinders:

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 10 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Deadlock MS1861, Bottom Rail Locking, For Ultra Stile Narrow Doors.

      • SKU
        AR1875
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      1875-603-1B
    • Product Details
      • Included Parts
        Deadlock, Mounting Screws
      • Case Material
        Steel with corrosion resistant plating
      • ANSI / BHMA Grade
        Grade 2

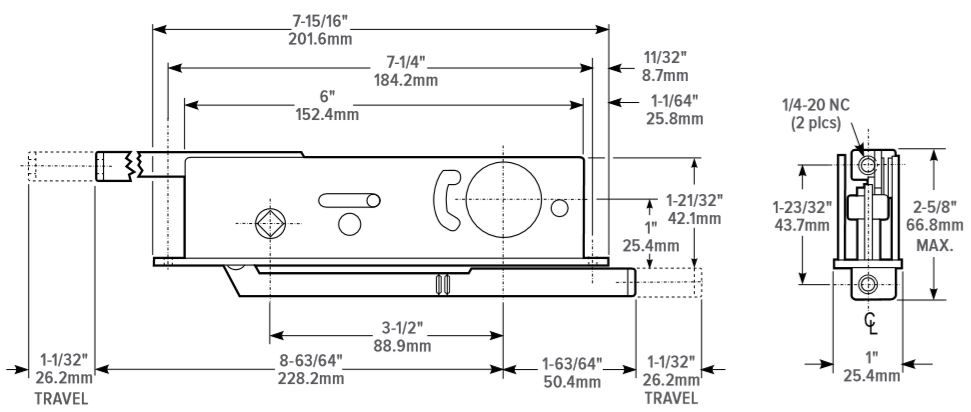

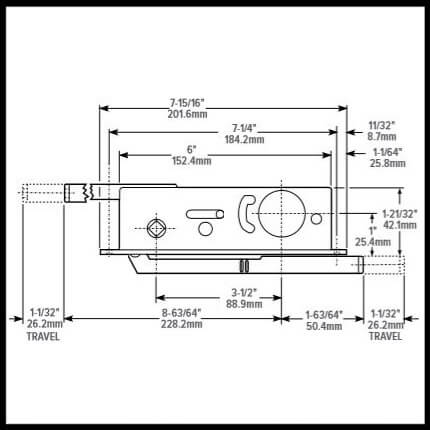

    • Dimensions
      • Case Dimensions
        6" L x 1" W x 2-5/8" H
      • Bolt Throw
        1-1/32" Throw
    • Installation
      • Door Type
        Roll Up Door
    • Finishes
      • Finish
        Zinc Plated
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        10 Year Limited Warranty
