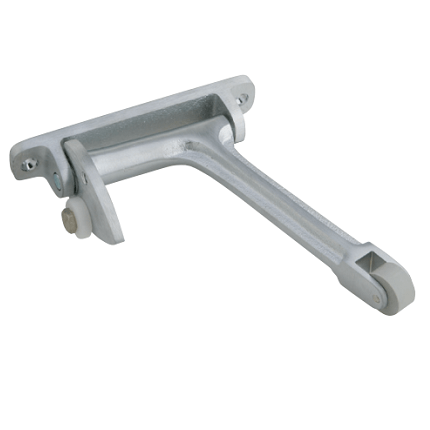

Ives COR9G Gravity Coordinator, 9" Projection
Ives COR9G is a Gravity Coordinator, When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
PRICED PER PIECE
See tabs below for additional information
Ives COR9G is a Gravity Coordinator, When active door is open, coordinator prevents active door from closing until inactive door bypasses.
Design:
- Non-handed.
- Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage.
- Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation.
Size:
- 9" Projection
- COR9G for use on pairs of doors with astragal on active over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" .
Mounting: 8-32 X 1" FPHMS
Available Accessory Items:
- Security pin screws
- Replacement mounting package
- Replacement roller and bolt package
- Replacement rubber roller and pin package
- Replacement rub plate package
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click to View Our Ives CB1 Carry Bar
-
QuickShipNo
-
ManufacturerIves
-
MPNCOR9G
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)
-
- Compliance Details
-
ANSI DesignationA156.3 Type 21B, UL Listed for fire doors
-
Warranty1 Year Limited Warranty
-
