Ives FB31P Automatic Flush Bolt, Top and Bottom Bolt (Pair)

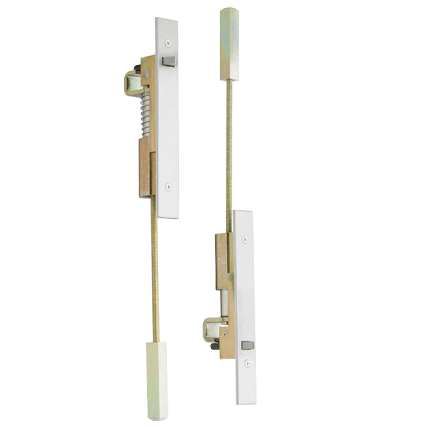

Actual Image of Ives FB31P Automatic Flush Bolt
Ives

Ives FB31P Is a fully Automatic Flush Bolt. When the inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened. This Flush Bolt is for use with metal doors, and is available in a large variety of finishes of your choice. Top and Bottom Bolts can be purchased individually.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VSFB31P US3
    • Market price:$329.49
      • save 30%
    • Starting price: Price: $230.64 per item


    Ives FB31P Fully Automatic  Flush Bolt is for use with metal doors.

    Design:

    • Low actuation forces—top bolt has no spring tension.
    • Non-handed.
    • Bolt throw is 3/4" with a 7/8" vertical adjustment.
    • Bolt backset is 3/4"
    • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.

    Additional Options Through Our office:

    • Security pin screws
    • DP1 and DP2 dust proof strike
    • Custom finishes

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click to View Our Rockwood Flush Bolt Set for Wooden Doors

      • SKU
        VSFB31P US3
    • Mounting
      8-32 X 3/8" UFPHMS, 10-12 X1-1/4" Plastic anchor, 6-32 X 3/8 FPHMS, 6 X 3/4 FPHSMS, 8 X 1 FPHSMS, 10 X 1 FPHSMS
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      FB13P
    • Dimensions
      • Body Size
        1" x 6-3/4" x 2"
      • Guide Size
        1" x 1-27/32" x 27/32" x 3/32"
      • Strike Size
        15/16" x 2-1/4" x 1/16"
      • Rub Plate Size
        1-1/4" x 1-11/16" x 3/64"
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Flat Black (US19), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        UL Listed 3 Hour fire doors 8’0" X 10’0"
      • ANSI Designation
        A156.3 Type 25
      • Warranty
        1 Year Limited Warranty
