Falcon W Series Grade 2, Door Handle with 2-9/16" Rose - Keyed, Privacy, Passage or Dummy
Falcon W Series Knobs can be applied to government/military, retail, industrial or multi-family project. W Series Locks are provided with a door thickness of 1-3/8"-1-3/4", backset 2-3/8" or 2-3/4", 2-9/16" rose, and 6-Pin, Solid brass, keyed 5-pin, Falcon G keyway, Keyed different (KD) cylinder. Variety of finishes, functions, and knob styles available.Â
PRICED PER SET-See full product details and specs in tabs below
Click here to view the Falcon W Series from the Falcon Full Line Catalog
Handing: Non-Handed

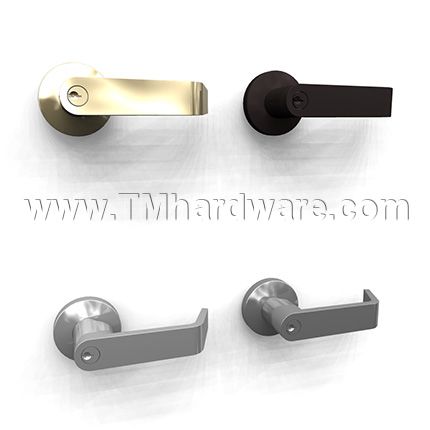

Lever Style: 7 Styles to choose from, Choose from options above.Â
Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

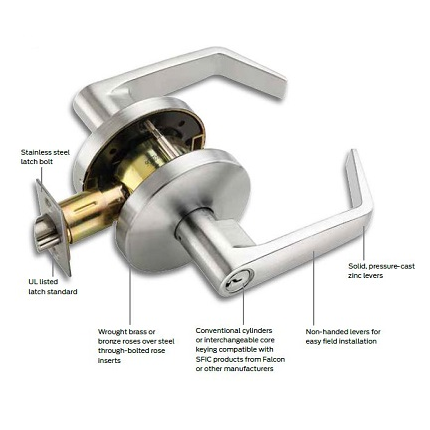

Trim:Â Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door.Â
Rose Dimensions: 2-9/16" diameter
Material: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
Keys: Two, Nickel silver cut keys per lock
Keyway: Falcon G keyway standard on conventional cylinder. "A" Keyway standard for IC-available for purchase through our office.Â
Additional Keying Options:Â Additional keying options and keyways available through our office.
Cylinder / Core:Â
- Housing and plugs machined from Solid Brass, Springs are stainless steel.Â
- 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD),Â
- Cylinder assemblies removable to rekey.Â
- Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available through our office.
Interchangeable Cores: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent. (Can be purchased through our office.)
Additional Cylinder Options:Â (Can be purchased through our office.)
- Keyed 6-Pin or 7-Pin
- Construction Cores
- Small Format Interchangeable Core (SFIC)
Door Thickness:Â 1-3/8" to 1-3/4"
Backset:Â 2-3/8", 2-3/4" standard
Latch:Â
- 1/2" throw-standard.Â
- 1-1/8" x 2-1/4" square corner faceplate.
- 1" housing diameter
- Latches have selfadjusting fronts to accommodate beveled or flat doors.
Strike:Â 1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box
Functions:Â
- Non-Keyed Functions: W12-Single Dummy, W18-Double Dummy, W101-Passage, W161-Communicating/Exit, W301-Privacy
- Keyed Functions:Â W511-Entry/Office, W561-Classroom, W571-Corridor, W581-Storeroom,Â
- See WÂ Series Lever Functions for more information
Options available through our office only:
- Additional latches and strikes
- Additional cylinders and keyways
- Additional Dustboxes
- Additional Keys, or Large Bow Keys
Installation:Â
- Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly, and two screws that screw into the chassis assembly.
Compliance Details:Â
- All locks meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
- Locksets are ULListed (3 hour A Label)
- See Compliance Details Tab for corresponding ANSI numbers
Priced Per Set.Â

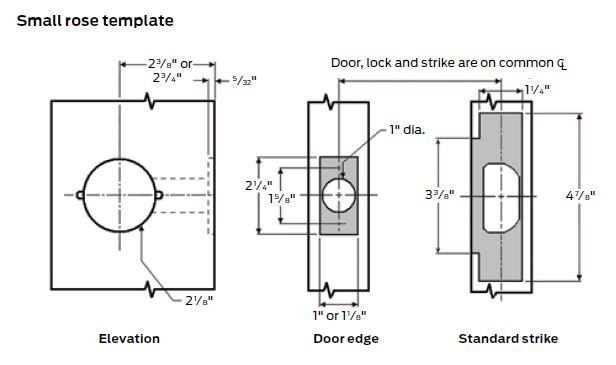

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.
Product has a 1 year warranty against defects in material and workmanship
 Click to view our Full Warranty Policy.
Click here to see Falcon T-Series Grade 1 Extra Heavy Duty Cylindrical Lever
-
QuickShipNo
-
ManufacturerFalcon
-
MPNW-lever-SR
-
LeverDane (SRD), Quantum (SRQ), Avalon (SRA), Latitude (SRLA), Longitude (SRLO), Broadway (SRBR), Boardwalk (SRBO)
-
FunctionPassage, Communicating / Exit, Privacy, Entry / Office, Classroom, Storeroom, Single Dummy
- Specifications
-
Backset2-3/8" Backset, 2-3/4" Backset
-
- Finishes
-
FinishPolished Brass (US3), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E)
-
Finishes Comply with the following ANSI/BHMA Codes:
- Bright Brass -Â US3/605
- Oil Rubbed Bronze - US10B/613
- Aged Bronze - US11/643E
- Satin Nickel - US15/619
- Matte Black - US19/622
- Bright Chrome - US26/625
- Satin Chrome - US26D/626
Functions comply with the following ANSI codes:Â
- Passage (Non-Keyed) / F75
- Privacy (Non-Keyed) / F76
- Entry / Office / F109
- Classroom Lock / F84
- Storeroom Lock / F86Â
*All locks shall meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets
*Locksets shall be UL Listed 3-hour, A Label
