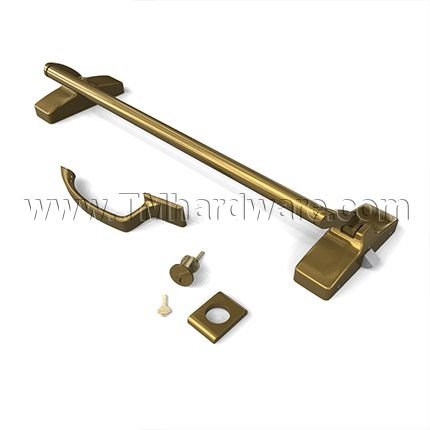

Falcon XX-R Crossbar Rim Exit Device, High Traffic Applications - Cylindrical Functions and Trims

This product has been discontinued. For a similar product, please see our Falcon 2090 Series Cross Bar Rim Exit Device.

See tabs below for additional information
    • SKU
      FLXX-R-815NL_U10
    Call for price!
    845-388-1300

    Rim Crossbar Exit Device for high traffic applications.

    Product Options:

    Applications: Single point, rim-type latch with traditional crossbar design.

    Functions and Trims: Large trim selection available with options for functions including: Night Latch, Dummy Trim, Blank Escutcheon and Standard Cylinder. See options tab for full selection.

    Cylinder: All functions are provided less cylinder. To purchase cylinders please contact us or call our office at 845-388-1300.

    Handing: Specify Right Hand Reverse (RHR) or Left Hand Reverse (LHR). To determine door handing see our How To Determine Door Handing and Swing.

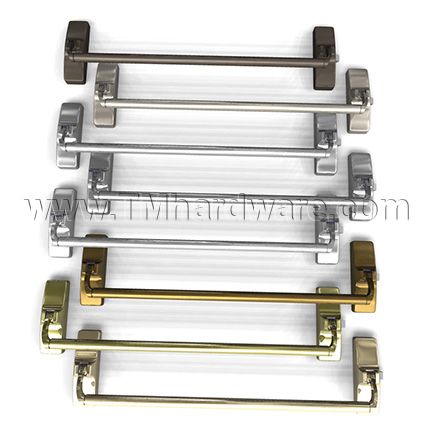

    Finishes: Available in finishes; US4, US10, SP313, US32D, US26D, US3, US26, US32.

    XX-R Materials:

    • Arms- Made with forged brass, aluminum and investment cast stainless steel.
    • Crossbars- 1" O.D., brass, bronze and stainless steel. Reinforced crossbars available.
    • Latch bolt - Stainless Steel, 3/4" throw.
    • Center case and working parts- XX-R Center case is pressure die cast aluminum with heavy wrought, forged, investment cast and sintered metal parts. F-XX-R - Center case is investment cast stainless steel

    Strikes: F570 adjustable strike standard. 565, 571, 571A, 5579 and F490 strikes are available through our office.

    Dogging Feature: 1/2" turn hex dogging standard. No threaded parts to wear out. Rim Cylinder supplied (at additional cost) for functions requiring cylinder dogging.

    Door Thickness: 1 3/4" thick doors, wood or metal. Specify thickness in order comments if other than 1 3/4".

    Dimensions: For doors up to 4'0" Wide and 1-3/4" Thick full flush with 5/8" high frame stop unless specified otherwise.

    Mounting Height: 40 1/4" from centerline to finished floor and 7'0" standard door height.

    Projections: 5" maximum, 4" dogged.

    Stock Sizes: 40 13/16" exit device, standard. Can be used on doors up to 4'0" Wide.

    Electric Function: Can be interfaced with building security systems. Lock/unlock and security monitoring available.

    Fasteners: All mounting screws are concealed. Sheet metal screws standard. Machine screws are available. When using device with hollow core wood, composite or light gauge hollow metal doors, sex bolts are available.

    Certifications: Meets ANSI A156.3 Grade 1 standard. F-XX-R carries "A" label (3 hr.) for; 4'0" x 8'0"; 8'0" x 8'0" dimensions. "B" label (1 1/2 hr.) for 8'0" x 8'0" dimensions with KRF - 4023 mullion.

    Installation: See Installation Tab for complete installation instructions.

    Additional Options: Including electrical modifications and trims are available through our office. To order please contact us or call our office at 845-388-1300.

    Priced per piece

    This product has a 10 year warranty against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view our Falcon XX-V Surface Vertical Rod Exit Device.

      • SKU
        FLXX-R-815NL_U10
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      XX-R, F-XX-R
    • Product Options
      Exit Device (XX-R), Fire Exit Device (F-XX-R)
    • Finish Options
      Bright Brass #US3, Bright Chrome #US26, Powder Coated Duranodic #SP313, Stainless Steel #US32, Satin Brass #US4, Satin Bronze #US10, Satin Stainless Steel #US32D, Satin Chrome #US26D
    • Handing
      Right Hand Reverse (RHR), Left Hand Reverse (LHR)
    • Trim Options

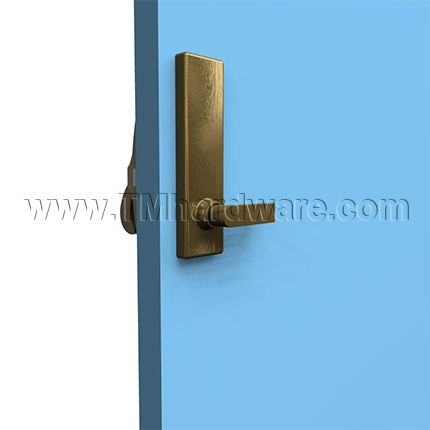

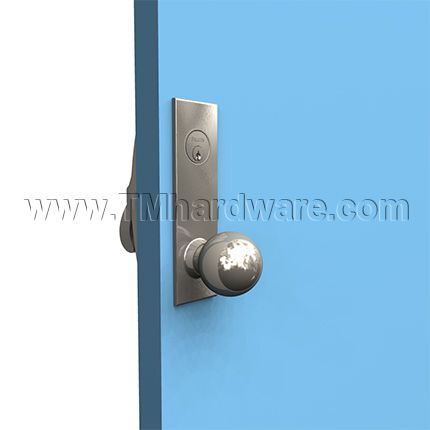

      Athena Grip Bar #815, Knob #811, Dane Lever #812
    • Function

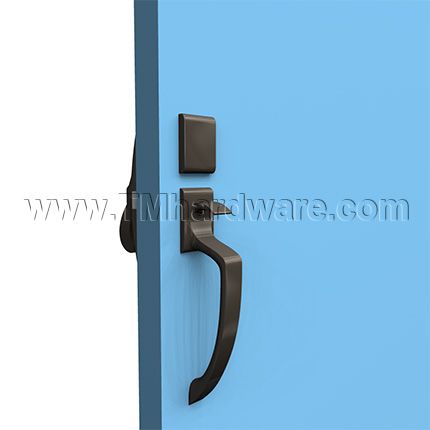

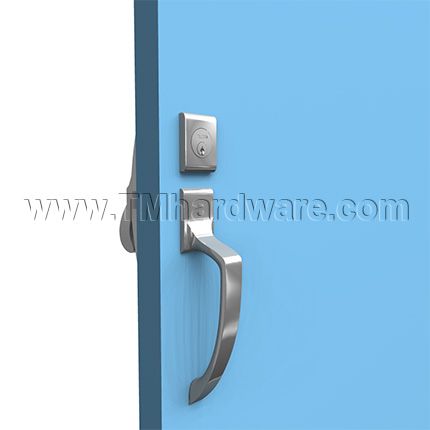

      Exit Device with Blank Escutcheon, Exit Device with Night Latch, Exit Device with Dummy Trim, Exit Device with Cylinder

    Dimensions:

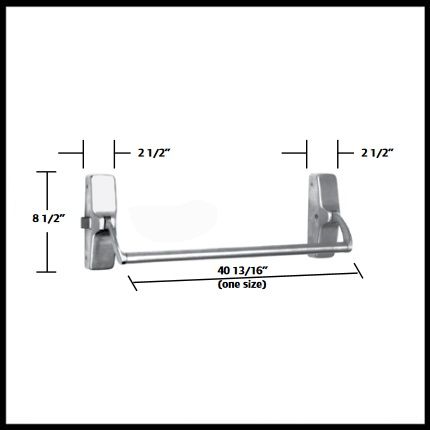

    Falcon XX Series Dimensions



    Trim Options for XX-R and F-XX-R:

    NOTE: Lever Trims are provided standard as Dane Levers, all additional options including Vandal Resistant levers can be purchased through our office. See below for full selection. To order, please contact us or call our office at 845-388-1300.

    Falcon XX-R Exit Device Trim Options

    Function List:

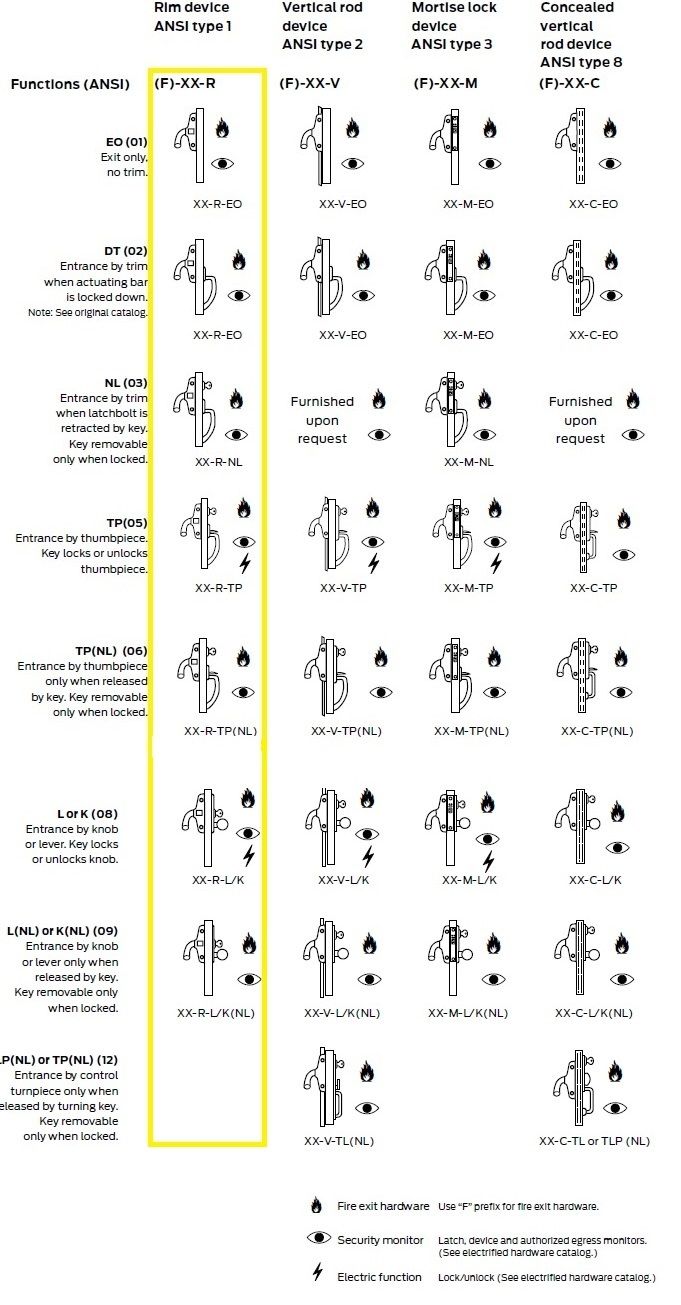

    Falcon XX-R Exit Device Function Options
