Hafele Slido Classic 40-I to 120-I Hardware Set, Wood Doors up to 265 Lbs. With Single Soft Close, Mortised - NOT ACTIVE

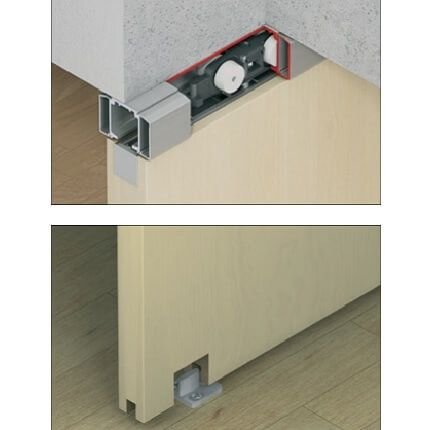

Hafele Slido Classic 40-I Installed on Wood Door
Hafele

Hafele Slido Classic 40I - 120I Sliding Door Series is designed for mortising into wood doors up to 265 lbs with a minimum width of 23-3/8”. This set includes a single soft close which provides smooth operation when closing or opening the door to prevent slamming. Includes sliding hardware only, compatible with Slido Classic Upper Track (sold separately). Can be installed in ceiling or wall mounted applications.

See full product details and specs in the tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF-940.44.005
    Call for price!
    845-388-1300

    Hafele Slido Classic 40 - 120I Sliding Door Hardware for mortising on doors up to 265 lbs, single soft close included.

    Components: Set includes all hardware for 1 sliding door.

    Design: Slido Classic sets are designed to cover moving parts and suspension fittings. Top running, bottom guided.

    Door Height: Adjustable +/- 1/8" (3 mm). Integrated suspension.

    Soft Close: Single Soft Close and self closing mechanism included. To view this set without soft close, see our Hafele Slido Classic 40I - 120I without Soft Close or with double soft close, see our Hafele Slido Classic 40I - 120I with Double Soft Close.

    Mounting: Can be ceiling or wall mounted.

    Installation: See our Hafele Slido Classic Installation Instructions.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For surface mounting, see our Hafele Slido Clasic 40P-120P Hardware Set.

      • SKU
        HF-940.44.005
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      940.43.082; 940.82.560; 941.25.006
    • About This Product
      • Door Material
        Wood Doors
      • Soft Close
        Single Soft Close
      • Mounting Type
        Sidewall Mount, Overhead Mount
      • Door Mount
        Mortised
      • System Type
        Single Sliding
      • Sliding Series
        Slido Classic
      • Included Parts
        Running Gears with Support Flange (2 ea.) 1 with soft and self closing mechanism
        Support Profiles with Cover Cap (2 ea.)
        Clear Threshold Floor Guide (1 ea.)
        Track Buffers with Retaining Spring (2 ea.)
        Release device with stopper for soft and self closing mechanism (1 ea.)
    • Dimensions
      • Door Panel Weight
        up to 50 LB Doors
      • Door Width
        23 3/8" (594 mm) minimum - 40I and 80I versions, 26 7/8" (683 mm) minumum - 120I versions
      • Door Thickness
        1 1/4" (32 mm) Thick minimum
      • Door Weight
        88 Lbs. (#40-I), 176 Lbs. (#80-I), 265 Lbs. (#120-I)
    • Finishes
      • Finish
        Mechanical Galvanized Steel
    • Compliance Details
      • Warranty
        1 Year Limited Warranty

    Click to print

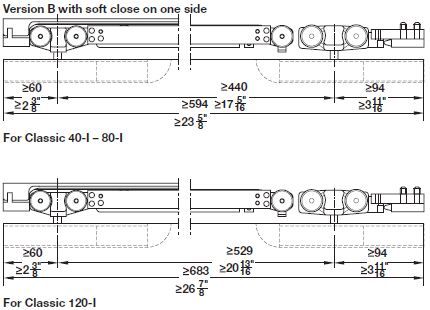

    Hafele Slido Classic Version B Specs

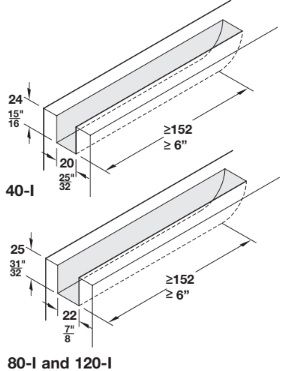

    Carrier Profile Dimensions:

    Hafele Slido Classic 40-I Carrier Profile Specs

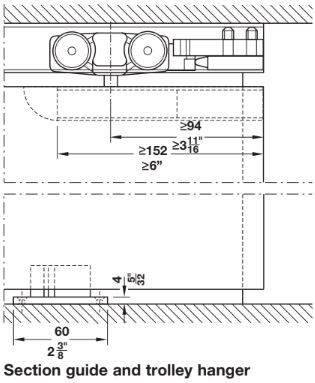

    Slido Classic Hardware Specs:

    Hafele Slido Classic 40I-120I Specs
