Hafele Slido Classic 40-I to 120-I Hardware Set, Wood Doors up to 265 Lbs. With Double Soft Close, Mortise - NOT ACTIVE

Hafele Slido Classic 40-I to 120-I Hardware Set, Wood Doors up to 265 Lbs. With Double Soft Close, Mortise - NOT ACTIVE
Hafele

Hafele Slido Classic 40I - 120I Sliding Door Hardware is designed for mortising into wood doors up to 265 lbs with a minimum width of 36-1/4”. This set includes a double soft close which provides smooth operation when closing or opening the door to prevent slamming. Includes sliding hardware only, compatible with Slido Classic Upper Track (sold separately). Can be installed in ceiling or wall mounted applications.

See full product details and specs in the tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF-940.44.007
    Call for price!
    845-388-1300

    Hafele Slido Classic 40 - 120I Sliding Door Hardware for mortising on doors up to 265 lbs, double soft close provided.

    Components: Set includes all hardware for 1 sliding door.

    Design: Slido Classic sets are designed to cover moving parts and suspension fittings. Top running, bottom guided.

    Door Height: Adjustable +/- 1/8" (3 mm). Integrated suspension.

    Soft Close: Double Soft Close and self closing mechanism included. To view this set without soft close, see our Hafele Slido Classic 40I - 120I without Soft Close or with single soft close, see our Hafele Slido Classic 40I - 120I with Single Soft Close.

    Mounting: Can be ceiling or wall mounted.

    Installation: See our Hafele Slido Classic Installation Instructions.

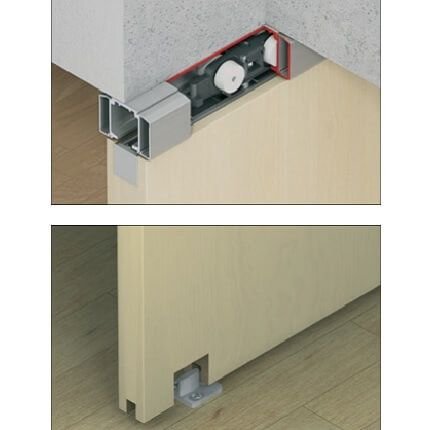

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For surface mounting see our Hafele Slido Classic 40P - 120P Hardware Set with Double Soft Close.

      • SKU
        HF-940.44.007
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      940.43.084; 940.82.561; 941.25.007
    • About This Product
      • Door Material
        Wood Doors
      • Soft Close
        Dual Soft Close
      • Mounting Type
        Overhead Mount, Sidewall Mount
      • Door Mount
        Mortised
      • System Type
        Single Sliding
      • Sliding Series
        Slido Classic
      • Included Parts
        Running Gears with Support Flange, soft and self closing mechanism(2 ea.)
        Support Profiles with Cover Cap (2 ea.)
        Clear Threshold Floor Guide (1 ea.)
        Release device with stopper for soft and self closing mechanism (2 ea.)
    • Dimensions
      • Door Panel Weight
        up to 50 LB Doors
      • Door Width
        36 1/4" (920 mm) minimum - 40I and 80I versions, 43 1/2" (1098 mm) minimum - 120I version
      • Door Thickness
        1 1/4" (32 mm) Thick minimum
      • Door Weight
        88 Lbs. (#40-I), 176 Lbs. (#80-I), 265 Lbs. (#120-I)
    • Finishes
      • Finish
        Mechanical Galvanized Steel
    • Compliance Details
      • Warranty
        1 Year Limited Warranty

    Click to print

    Carrier Profile Dimensions:

    Hafele Slido Classic 40-I Carrier Profile Specs

    Slido Classic Hardware Specs:

    Hafele Slido Classic 40I-120I Specs
