Hafele Slido Classic 40-I to 120-I Hardware Set, Wood Doors up to 265 Lbs, No Soft Close, Mortised - NOT ACTIVE
Hafele Slido Classic 40I - 120I Sliding Door Series is designed for mortising into wood doors up to 265 lbs. Includes sliding hardware only, compatible with Slido Classic Upper Track (sold separately). Can be installed in ceiling or wall mounted applications.
See full product details and specs in the tabs below.
PRICED PER SET
Hafele Slido Classic 40 - 120-I Sliding Door Hardware for mortising on doors up to 265 lbs, no soft close included.
Components: Set includes all hardware for 1 sliding door.
Design: Slido Classic sets are designed to cover moving parts and suspension fittings. Top running, bottom guided.
Door Height: Adjustable +/- 1/8" (3 mm), integrated suspension
Soft Close: Not included. To view this set with soft close included, see our Hafele Slido Classic 40I - 120I with Single Soft Close or Hafele Slido Classic 40I - 120I with Double Soft Close.
Mounting: Can be ceiling or wall mounted.
Installation: See our Hafele Slido Classic Installation Instructions.
How to order: Track, fascias and accessories sold separately. For bi-parting sliding doors, order 2 sets per opening.

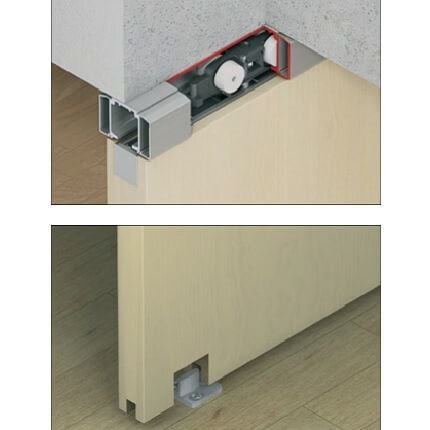

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For surface mounting, see our Hafele Slido Classic 40P - 120P Hardware Sets.
-
QuickShipNo
-
ManufacturerHafele
-
MPN940.43.081; 940.82.148; 941.25.005
- About This Product
-
Door MaterialWood Doors
-
Soft CloseNo
-
Mounting TypeOverhead Mount, Sidewall Mount
-
Door MountMortised
-
System TypeSingle Sliding
-
Sliding SeriesSlido Classic
-
Included PartsRunning Gears with Support Flange (2 ea.)
Support Profiles with Cover Cap (2 ea.)
Clear Threshold Floor Guide (1 ea.)
Track Buffers with Retaining Spring (2 ea.)
-
- Dimensions
-
Door Panel Weightup to 50 LB Doors
-
Door Thickness1 1/4" (32 mm) Thick minimum
-
Door Weight88 Lbs. (#40-I), 176 Lbs. (#80-I), 265 Lbs. (#120-I)
-
- Finishes
-
FinishMechanical Galvanized Steel
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
