Hafele Slido Classic 40-O to 120-O Hardware Set, Wood Doors up to 265 Lbs, Single Soft Close, Recessed - NOT ACTIVE

Hafele Slido Classic 40-O to 120-O Hardware Set, Wood Doors up to 265 Lbs, Single Soft Close, Recessed - NOT ACTIVE
Hafele

Hafele Slido Classic 40o - 120o Sliding Door Series is designed with recessed mounting for wood doors up to 265 lbs, with a minimum width of 23-5/16”. This set includes a single soft close which provides smooth operation when closing or opening the door to prevent slamming. Includes sliding hardware only, compatible with Slido Classic Upper Track (sold separately). Can be installed in ceiling or wall mounted applications.

See full product details and specs in the tabs below.

PRICED PER SET

See tabs below for additional information
    • SKU
      HF_940.43.119
    Call for price!
    845-388-1300

    Hafele Slido Classic 40 - 120-O Sliding Door Hardware for recessed mounting on doors up to 265 lbs, single soft close included.

    Components: Set includes all hardware for 1 sliding door.

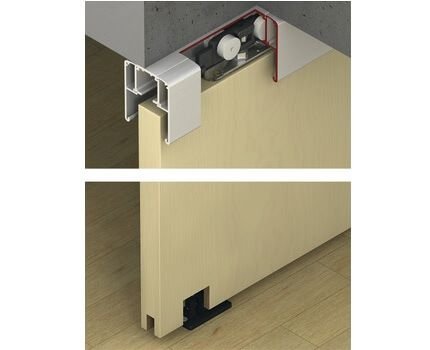

    Design: Slido Classic sets are designed to cover moving parts and suspension fittings. Top hung, bottom guided.

    Door Height: Adjustable +/- 1/8" (3 mm)

    Soft Close: Provided with single soft close. To view this set with no soft close, see our Hafele Slido Classic 40-O – 120-O, no Soft Close or with double soft close, see our Hafele Slido Classic 40-O – 120-O with Double Soft Close.

    Mounting: Recessed door connection, suspension with recessed flange clip (without tools.) Can be ceiling or wall mounted.

    Installation: See our Hafele Slido Classic Installation Instructions.

    How to order: Track, fascias and accessories sold separately. For bi-parting sliding doors, order 2 sets per opening.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For mortise mounting, see our Hafele Slido Classic 40I – 120I Hardware Sets with Single Soft Close.

      • SKU
        HF_940.43.119
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      940.43.119; 940.82.565; 941.02.116
    • About This Product
      • Door Material
        Wood Doors
      • Soft Close
        Single Soft Close
      • Mounting Type
        Sidewall Mount, Overhead Mount
      • Door Mount
        Recessed
      • System Type
        Single Sliding
      • Sliding Series
        Slido Classic
      • Included Parts
        Running gears (2 ea.) one with soft and self closing mechanism
        Clear threshold floor guide (1 ea.)
        Track buffer with retaining spring (1ea.)
        Release device with stopper for soft and self mechanism (1 ea.)
    • Dimensions
      • Door Panel Weight
        up to 50 LB Doors
      • Door Weight
        88 Lbs. (#40-O), 176 Lbs. (#80-O), 264 Lbs. (#120-O)
    • Finishes
      • Finish
        Mechanical Galvanized Steel
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
