Hager 3902, Mortise Cylinder with Conventional Schlage C or Hager Keyway

Hager 3902 Rim Cylinder with Conventional Keyway Key Features:

Thread: 1.150” x 32 UNS

Cylinder Face Diameter: 1.360"

Length:

• 1-1/8” (29 mm) - standard length
• 1-1/4” (31 mm)
• 1-5/8” (41 mm) - for mortise exit devices

Cam:

• Standard Cam (attached)
• Adams Rite Cam (Included with your order)
• Schlage L cam must be used on Hager 3800 Mortise locks (sold separately)

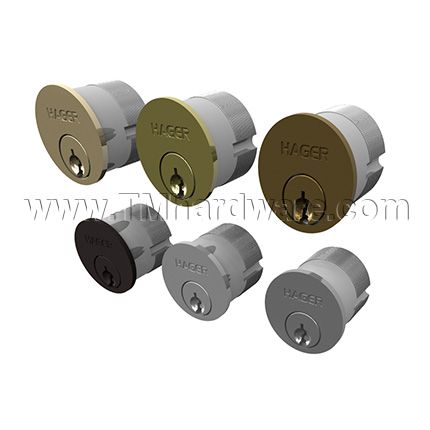

Available Finishes: Polished Brass; Satin Brass; Satin Bronze; Antique Bronze Lacquered; Polished Chrome; Brushed Chrome (Finishes comply with BHMA codes.)

Keys: Keyed different and supplied with two operating keys

Cylinders:

• Schlage C- 6 pin drilled, 5 pin keyed
• Hager Keyways - 7 pin, 140 pin spacing

Additional Keying Options: (available through our office)

• MK-Master key - Master Keying Form must be filled out
• CMK-Construction master key (Schlage C, E, & F)
• Keyed alike, 0 bitted, 1 bitted
• Keyed to specific or existing number
• Key markings other than key set
• Key markings 1AA, 2AA, etc.
• Extra cut keys
• Cylinder markings (visual or concealed)

Note: Keys are cut bow to tip

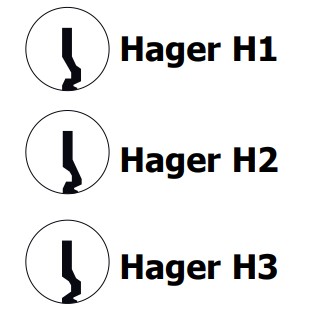

Additional Keyways: Available through our office (see figure below)

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs tab for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

This product has a lifetime guarantee against defects in workmanship and materials.
