Hager 9130 Sliding Door System, Bypass or Pocket Door Applications, I-Beam Track, 275 Lbs. Doors

Hager 9130 Sliding Door Series with I-Beam Track
Hager Companies

This item has been discontinued - For similar item see Hettich 1230 Sliding Door Track



See tabs below for additional information
    • SKU
      HG9130-60_135340
    Call for price!
    845-388-1300

    Click here to view Hager 9130 Series from Hager Full Line Catalog.

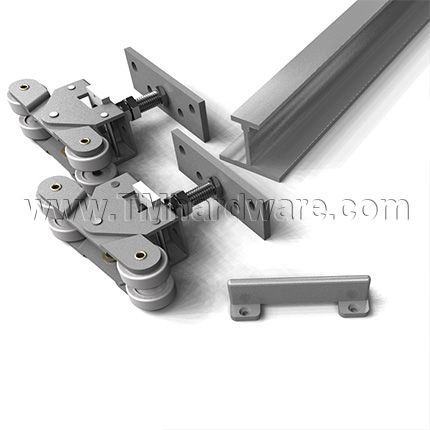

    Included Parts for 9130 Bypass/Pocket Sets: Components can be ordered separately, see links below. For Bypass Applications, 2 sets must be ordered.

    • (1 ea.) Aluminum Track (9101)
    • (2 ea.) 2 Wheel Hangers (9105)
    • (1 ea.) Bottom Door Guide (9115)
    • (20 ea.) #10 x 1 1/2 Phillips Pan Head Screws
    • (4 ea.) #6 x 7/8" Phillips Flat Head Screws
    • (8 ea.) #12 x 1 1/4" Phillips Pan Head Screws

    Track Lengths: Available in stock lengths up to 96". Tracks up to 192" lengths can be purchased through our office.

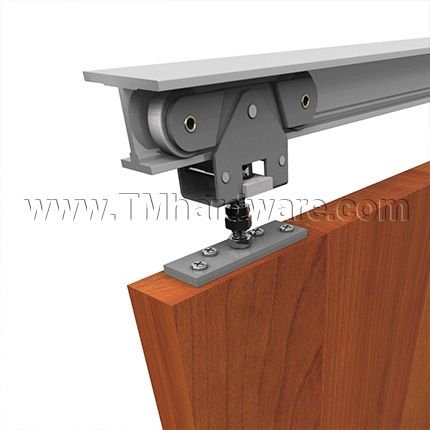

    Materials: Track is made of extruded aluminum jump-proof style with "I" beam track. Hanger body made from Zinc plated Steel and Steel Ball Bearing Wheels.

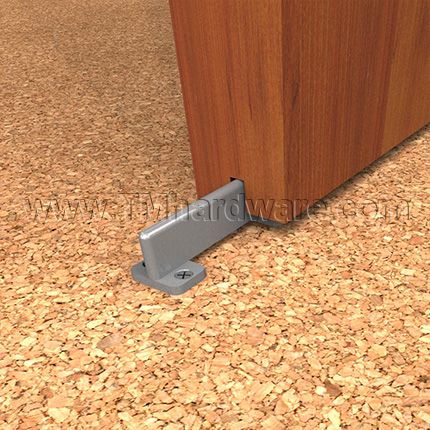

    Door Bottom Guide: Standard kit provided with Door Guide made from Die Cast Zinc Aluminum Alloy.

    Hangers: Hangers have 1" diameter wheels.

    Finger Pull: Can be used in conjunction with all Hager Sliding Door Finger Pulls: 2610, 2630 and 9865.

    Height Clearance:

    • Minimum Clearance - Door Height + 3 1/2"
    • Maximum Clearance - Door Height + 4 1/4"

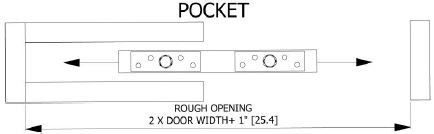

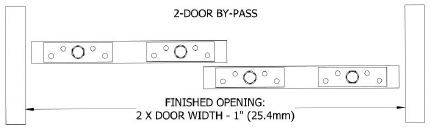

    Width Clearance: 2 Door Bypass - 2 times door width minus 1".

    Installation: Simple to install, All mounting hardware included.

    Additional Customization Options: These products can be ordered as full Bypass Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

      • SKU
        HG9130-60_135340
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      H9130
    • About This Product
      • Mounting Type
        Overhead Mount
      • Door Mount
        Surface Mount
      • Track Type
        I-Beam Track
      • System Type
        Bypass, Pocket Door Kit
      • Included Parts
        Aluminum Track – 9101 (1 ea.)
        2 Wheel Hangers – 9105 (2 ea.)
        Bottom Door Guide – 9115 (1 ea.)
        #10 x 1 ½” Phillips Pan Head Screws (20 ea.)
        #6 x 7/8” Phillips Flat Head Screws (4 ea.)
        #12 x 1 ¼” Phillips Pan Head Screws (8 ea.)
      • Material
        Aluminum
    • Dimensions
      • Door Panel Weight
        275 LB Doors
      • Door Thickness
        1" to 1 3/4" Thick
      • Track Length
        60" Length, 72" Length, 84" Length, 96" Length
    • Compliance Details
      • Compliance Details
        ANSI/BHMA A156.14, Grade 1 certified
      • ANSI Designation
        D8681, D8711
      • Warranty
        1 Year Limited Warranty
