Hettich TopLine Grant 1230 Sliding Hardware and Track, For Doors 1" Thick, 325 Lbs.

Hettich TopLine Grant 1230 Sliding Hardware and Track, For Doors 1" Thick, 325 Lbs.
Hettich

Hettich TopLine Grant Sliding Door Hardware and Track for single doors 1" thick minimum and up to 325 Lbs. Used in heavy duty commercial and residential grade sliding door applications which require the movement of heavy panels, space dividers or large doors.

PRICED PER SET

See tabs below for additional information
    • SKU
      HT1133279
    • Starting price: Price: $192.02 per set

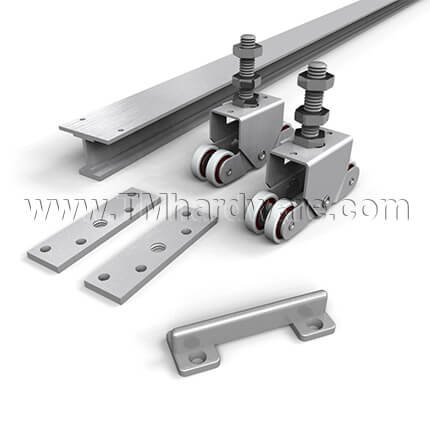

    Set Includes:

    Product Options: For longer track applications, order hardware set and track separately. For Bi-part applications, order additional hardware set. For By-pass applications, two full sets must be ordered.

    Applications: Heavy duty commercial and residential sliding door hardware for single door applications. Ideal for applications which require the movement of heavy panels, space dividers or large doors.

    Door Weight: For doors up to 325 Lbs. (147 Kg.)

    Door Thickness: For doors 1" (25.4 mm) thick minimum.

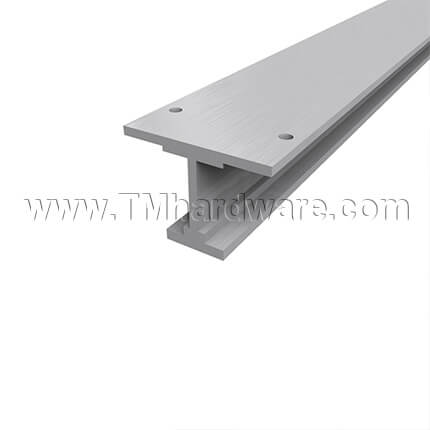

    Track: Heavy duty, aluminum I-beam track, jump proof design

    Wheels: High quality precision ball-bearing wheels for smooth performance.

    Track Mounting: Track is mounted to header.

    Carrier Mounting: Carriers are mounted to the top of the door. Four wheel carrier, center hung for efficient operation.

    Headroom: 3 1/4" (82.5 mm) minimum - 3 3/4" (95.2 mm) maximum.

    Certifications: Meets and/or exceeds ANSI/BHMA standards. Made in the USA.

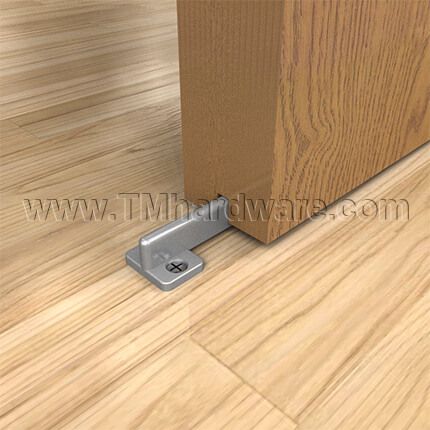

    Optional Components: Bumper stop (1213) and Continuous Floor Guide (2014) are available.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For Bypass door application, see our Hettich TopLine Grant 6034 Sliding Door Hardware and Track.

      • SKU
        HT1133279
    • QuickShip
      No
    • Manufacturer
      Hettich
    • MPN
      1133279; 1133280; 1133281; 1133282; 1133283; 1134181
    • Length
      60" Track, 72" Track, 84" Track, 96" Track, 120" Track, 144" Track
    • Dimensions
      • Door Panel Weight
        325 Lb Doors

    1201 Track Specs:

    Hettich 1201 Track Specs

    Set Specs:

    Click to print

    Hettich TopLine Grant 1210 Product Specs
