Hawa Junior 40 Z Sliding Door Hardware, Ceiling Mount Track, up to 88 Lbs

Hawa Junior 40 with Z Mounting Type (Surface Mounted) is designed for doors up to 88 Lbs.

Smooth, quiet operation
Outstanding durability
Rattle-Free bottom
Special two-way suspension
Vertically and laterally adjustable
Door Stop with adjustable retention spring

Made in Italy

See tabs below for additional information

Quantity

Add to compare

Click here to view the Hawa Junior 40 Z Catalog Pages.

Track: Single ceiling mount track can be purchased, select from options above.

To purchase track separately or in larger lengths: Hawa 40 Upper Track, Single

Maximum Door Weight: 88 Lbs. (40 kg)

Minimum Door Thickness: 7/8" (22mm)

Mounting: Hardware is surface mounted to the door

Application: For 1-leaf sliding doors

Operation: Smooth Quiet Operation, rattle free bottom

Quality: Outstanding durability

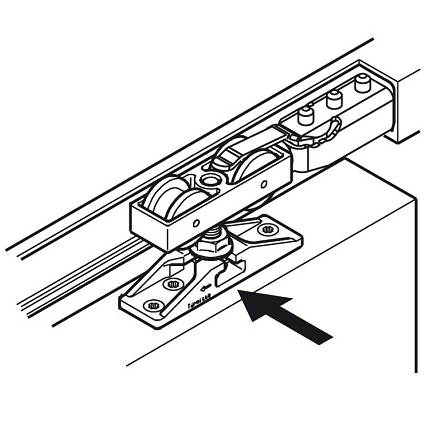

Suspension Plate: Special two-way suspension for easier access of door removal.

Features:

Vertically and laterally adjustable
Door Stop with adjustable retention spring

Accessories: Additional Accessories can be purchased through our office.

Guide rail
Cover Cap for Upper track
Soft and Self closing mechanism
Door seals for sliding doors

Priced Per Set

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click to view our Hawa Junior 80/Z Sliding Door Hardware, up to 176 Lbs., Surface Mounted, Top Hung System, Set

- SKU
  HF940.41.006
QuickShip
No
Manufacturer
Hafele
MPN
940.41.006
About This Product
- Door Type
  Single Door
- Series
  Hawa Junior 40
- Door Material
  Wood Doors
- Soft Close
  Optional
- Mounting Type
  Overhead Mount, Sidewall Mount
- Door Mount
  Surface Mount
- Track Type
  Box Track
- System Type
  Single Sliding, Bi-parting, Bypass
Dimensions
- Door Panel Weight
  88 LB Doors
- Door Thickness
  7/8" Thick Door
- Track Length
  No Track Required, 55" Track Length, 63" Track Length, 71" Track Length, 78 3/4" Track Length
