HES 1LB Option Faceplate Kit, for HES 1500 and 1600 Electric Strike Series

HES 1LB Option Faceplate Kit, for HES 1500 and 1600 Electric Strike Series
HES

This HES 1LB Option Faceplate Kit includes faceplates compatible for use with the HES 1500C, HES 1600CLB, and the HES 1600CS electric strike, of the HES 1500 and 1600 series. The kit includes the 1J, 1K, 1KD, and 1KM Option faceplates and works with cylindrical and mortise locksets up to a 3/4" latchbolt. The mounting holes on the faceplates, enable the electric strike to be fastened to the door frame. Available in a choice of finish options; select from the dropdown below.

See full product details and specs in tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      HS1LB-630
    • Market price:$56.00
      • save 35%
    • Starting price: Price: $36.40 per item


    Faceplates fasten, embellish, and protect doors and electric strikes. It is the part that gets mounted onto the side of the door, surrounding the latchbolt. This HES 1LB Option Faceplate Kit includes faceplates that work with the HES 1500C, HES 1600CLB, and the HES 1600CS electric strike, of the HES 1500 and 1600 series.

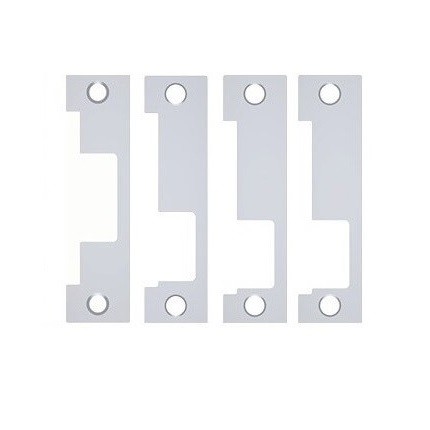

    Parts Included:

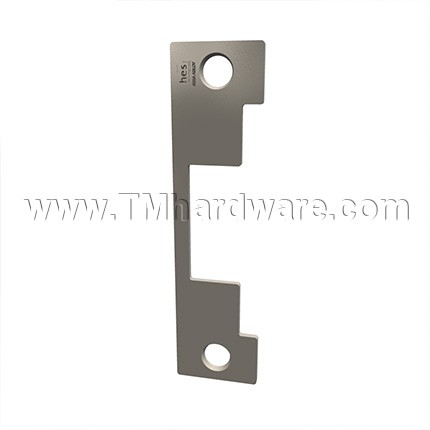

    • 1 HES 1J Option faceplate
    • 1 HES 1K Option faceplate

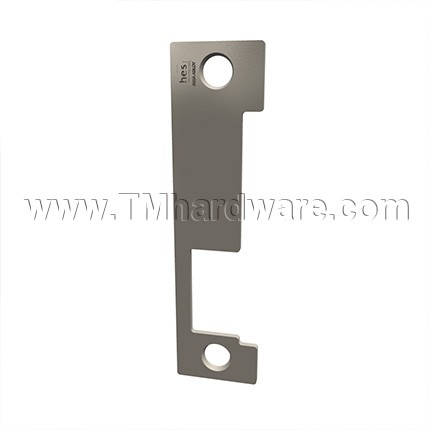

    • 1 HES 1KD Option faceplate

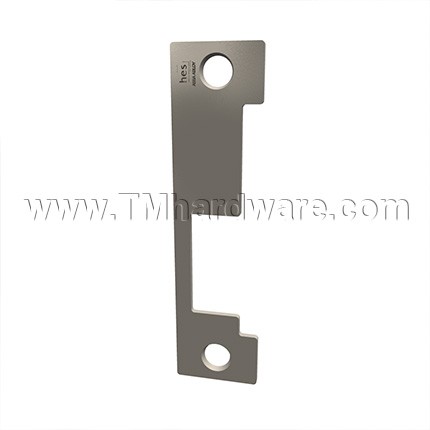

    • 1 HES 1KM Option faceplate
    • Mounting screws

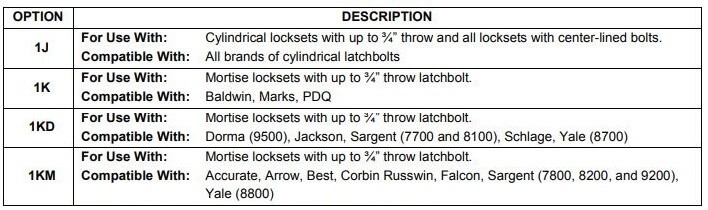

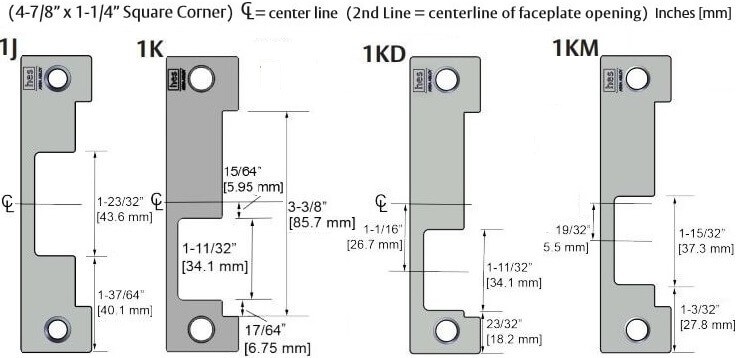

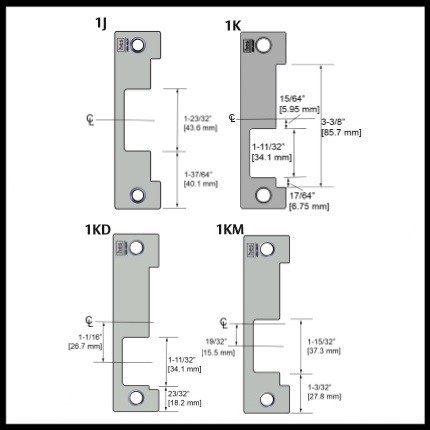

    For faceplate details and measurements, view the Product Specs tab below.

    Available Finish: Available in a choice of finish options; select from the dropdown above.

    Material: Heavy duty stainless steel

    Width: 1-1/4" (31.8 mm)

    Height: 4-7/8" (123.4 mm)

    Frame Application: For hollow metal, concrete-filled metal, and aluminum doors.

    For Use With: Cylindrical and mortise locksets up to a 3/4" latchbolt.

    Operation: After releasing the latchbolt, the keeper returns to the locked position.

    Installation: For details on how to install the HES 1J, 1K, 1KD, or 1KM Option Faceplate with the 1500C, 1600CLB, or 1600CS electric strike, see our Installation Instructions.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our HES 1DB-2 Option Faceplate Kit, for HES 1600 Electric Strike Series.

      • SKU
        HS1LB-630
    • QuickShip
      No
    • Manufacturer
      HES
    • MPN
      1LB
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin, Black Suede Powder Coat
