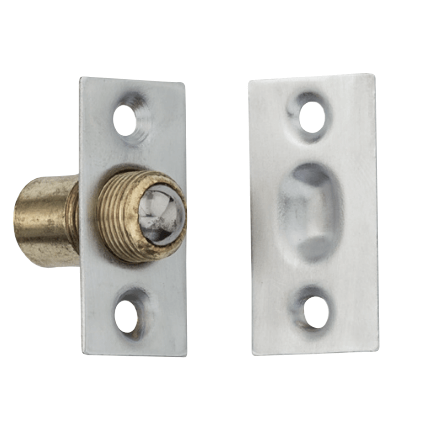

Ives 345 Ball Catch, Adjustable
Ives 345 Ball Catch, Adjustable is recommended for lower frequency opening applications. Ball Catch is made from Wrought Brass and is ideal for cabinets and small interior doors.
PRICED PER PIECE
Ives 345 Ball Catch, Adjustable is recommended for lower frequency opening applications.
Design:
- Free rolling ball insures smooth, positive and trouble-free action.
- Adjustable threaded barrel compensates for various door clearances.
- Adjustable spring tension.
- Units packed with wood screws
Dimensions:
- Face plate: 3/4" wide x 1-1/2" high
- Bore: 1" deep x 9/16" diameter
- Strike: 25/32" wide x 1-1/2" high, lip to center- 13/32"
Material: Made from Wrought Brass
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click to View Our Ives 347 Ball Catch Dual Adjustable, Square Cornered
-
QuickShipNo
-
ManufacturerIves
-
MPN345
- Finishes
-
FinishPolished Brass (US3), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Satin Brass, Blackened (US5)
-
- Compliance Details
-
ANSI DesignationA156.9, B23013
-
Warranty1 Year Limited Warranty
-
