Ives 3SP1, 3 Knuckle, Spring Full Mortise, Steel Hinge

Ives 3SP1, 3 Knuckle, Spring Full Mortise, Steel Hinge
Ives

This Ives 3 Knuckle, Spring Full Mortise Hinge is for use with doors where self-closing is required. For doors with a maximum weight of 120 lbs. and maximum width of 36". Made from 1040 steel or 304 series stainless steel. Many sizes and finish options available; select from the options below.

See full product details and specs in tabs below

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS3SP1-4x4-600
    • Market price:$5.36
      • save 20%
    • Starting price: Price: $4.28 per item


    The Ives 3 Knuckle, Spring Full Mortise Hinge is for use with doors where self-closing is required. For maximum door weight of 120 lbs. and maximum door width of 36".

    Size Options:

    Hinge Option: Rounded Corners - Select from options above.

    Additional Hinge Options: To order, please contact us or call our office at (845) 388-1300.

    • Security Fasteners: Pin-in-Socket. Protects the door from being removed by locking the leaves of the hinges together.

    Please note, detailed images are for illustrative purposes only. Images on screen may appear slightly different in real application. Actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

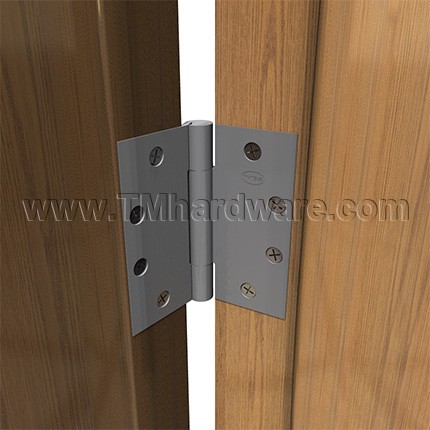

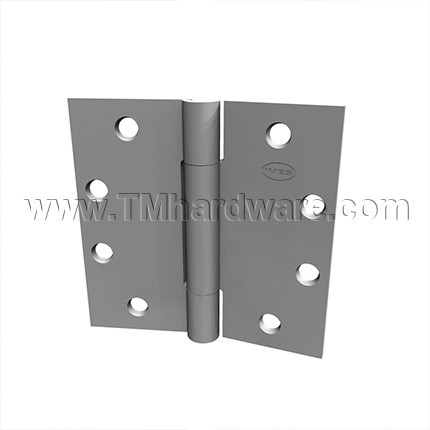

    Click to view our Ives 3CB1WT, 3 Knuckle, Concealed Bearing, Wide Throw, Full Mortise Hinge.

      • SKU
        VS3SP1-4x4-600
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      3SP1
    • Product Design
      • Hinge Category
        Spring Full Mortised Hinge
      • Base Material
        Steel, Stainless Steel
      • Usage Level
        Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Single Acting Spring
      • Knuckles
        3 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner, 5/8" Radius Corner, 1/4" Radius Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4" x 4", 4-1/2" x 4", 4-1/2" x 4-1/2"
      • Hinge Thickness

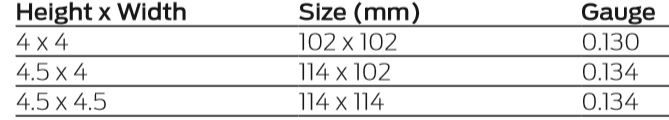

        See Dimensions Chart
    • Installation
      • Door Type
        Metal Door, Half metal/Half wood
      • Installation Screws
        Supplied With:
        12-24 x 1/2 UFPHMS
        12 x 1 1/4 FPHWS
        Pin for setting spring tension.
        Adjusting Wrench.
    • Additional Options - Purchase Through Our Office
      • Security Fasteners
        Yes
    • Finishes
      • Finish

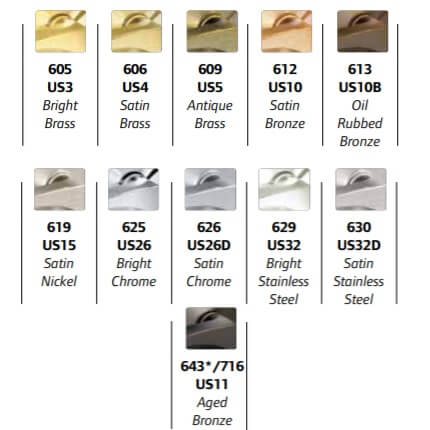

        Prime Coat (USP), Flat Black (US19), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Antique Bronze (US10A), Satin Bronze, Blackened (US11), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Dark Bronze (SP313), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        BHMA Certified, UL Listed, UL Classified
      • ANSI Designation
        A156.1, A156.7
      • Warranty
        1 Year Limited Warranty
    • Certified to ANSI/BHMA A156.4 for performance standards.
    • Meets ANSI/BHMA 156.7 for template hinge dimensions.
    • UL listed for use with fire rated doors.
