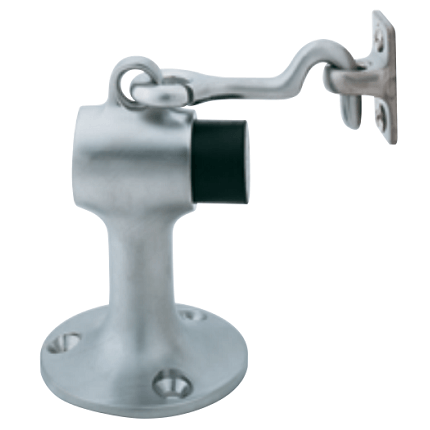

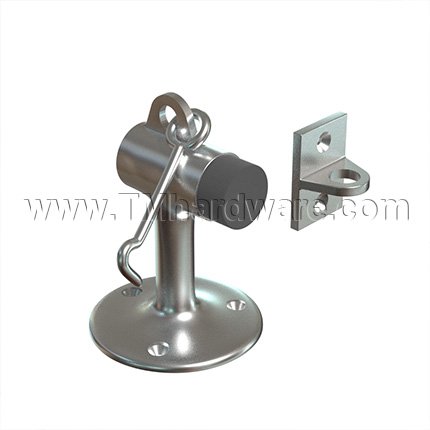

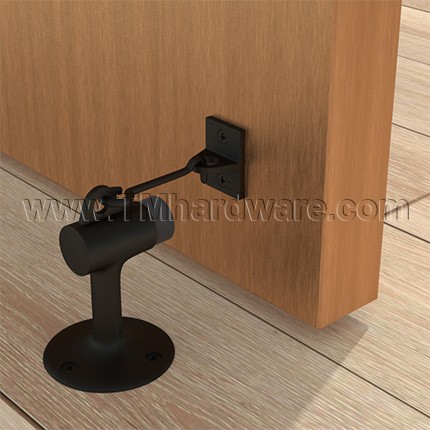

Ives FS450 Floor Stop and Manual Door Holder - Drywall / Wood, 3-3/4" Height
Ives FS450 Floor Stop and Manual Door Holder - Drywall / Wood is ideal for interior or exterior use. Unit functions as a stop but serves as a hold-open device when hook is manually engaged in strike. Unit requires manual disengagement to release hold-open. A large array of fine finishes available.
PRICED PER PIECE
Ives FS450 Floor Stop and Manual Door Holder - Drywall / Wall is ideal for interior or exterior use.
Design:
- Accommodates door undercut up to 2-1/2".
- Replaceable black non-marring rubber tip.
- Packed with fasteners for heavy duty masonry applications.

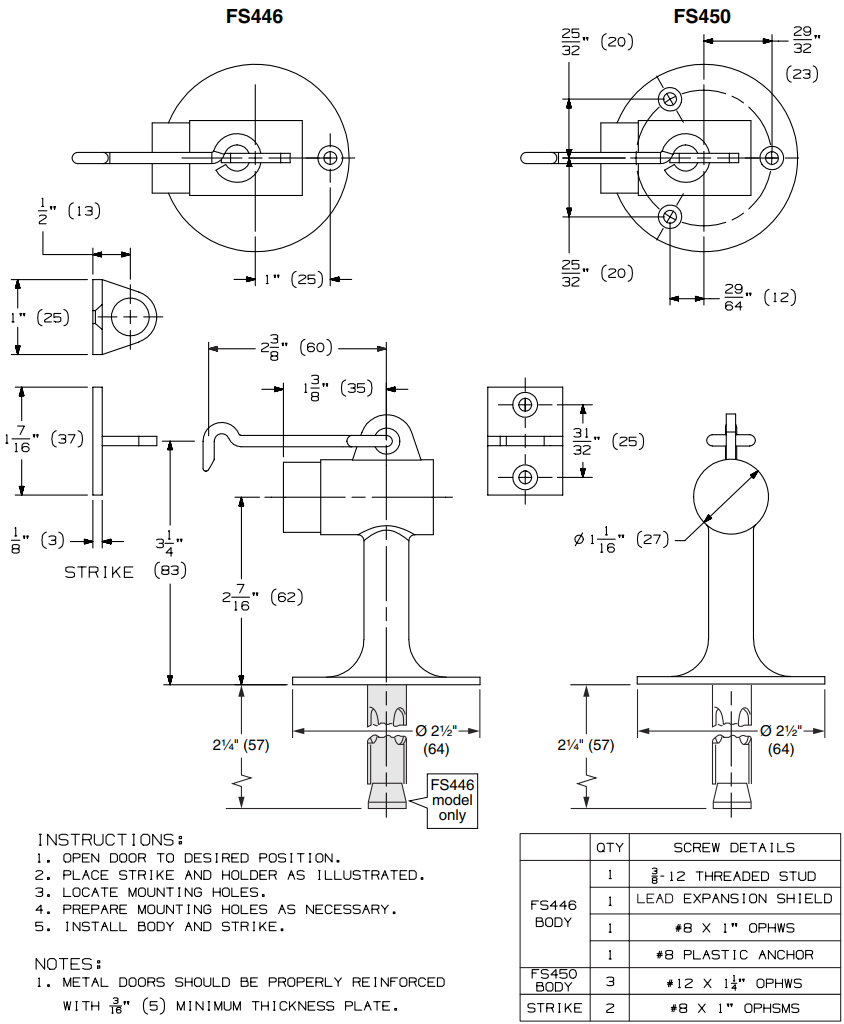

Dimensions:
- Overall height: 3-3/4"
- Height from floor to stop center line: 2-5/8"
- Stop diameter: 1-1/16"Â
- Base diameter: 2-1/12"Â
Material Substrate: Made from Cast Brass and Aluminum Â
Available Accessory Items: Replaceable black non-marring rubber bumperÂ
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.Â
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.Â
Click to View Our Ives FS495 Wall Stop & Automatic Holder
-
QuickShipNo
-
ManufacturerIves
-
MPNFS450
- Dimensions
-
Base Diameter2-1/12"
-
Additional DimensionsOverall height: 3-3/4"
Height from floor to stop center line: 2-5/8"
Stop diameter: 1-1/16"
-
- Description
-
MaterialCast Brass, Aluminum
-
- Finishes
-

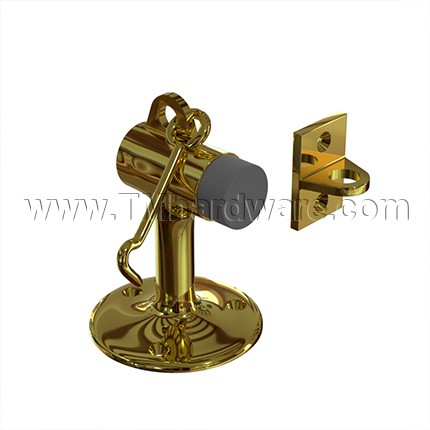

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Flat Black (US19), Satin Aluminum
-
- Compliance Details
-
ANSI Designation156.16, L11361, L31361
-
Warranty1 Year Limited Warranty
-
