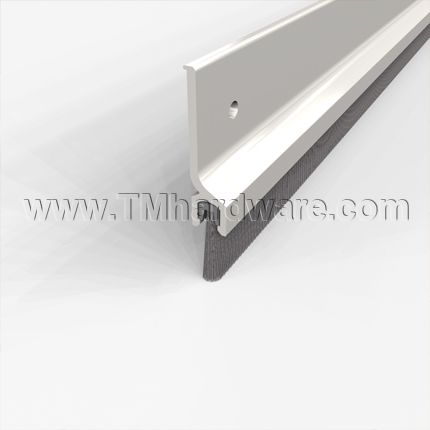

Pemko #309P Door Sweep and Perimeter Gasket, .875" Aluminum with .375" Pile Brush
This aluminum door gasket and door bottom sweep has a pile insert which will seal gaps around your door to prevent infiltration of air, smoke, fire, drafts and insects. Available in a selection of aluminum finishes and is custom cut to size.
A pile brush is a soft brush, similar to a baby brush bristles. For a more rigid brush, see our Pemko #309N with Nylon Brush.Â
PRICED PER FOOT
This aluminum door seal can be applied as a door bottom sweep or a perimeter door gasket. Its flexible pile insert compresses easily to create a seal that will prevent infiltration of smoke, fire, fumes, air, drafts and insect through the gap around doors. High quality bristles create a strong seal while ensuring low closing force.

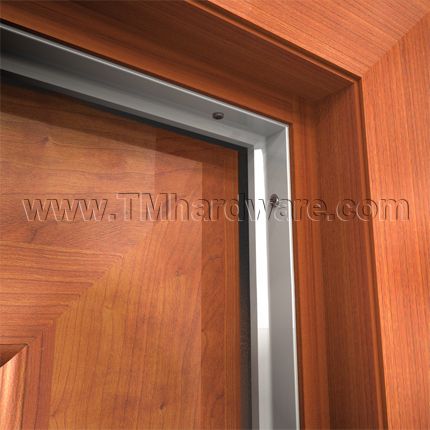

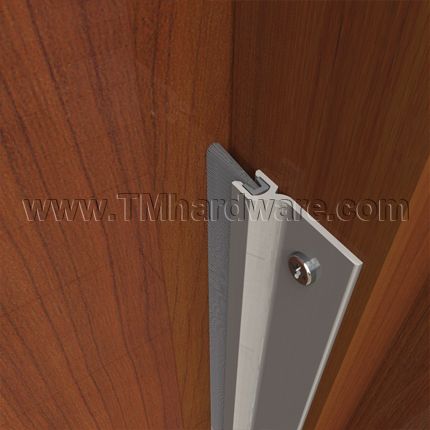

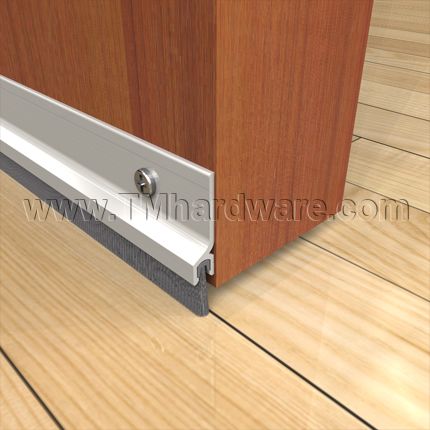

As a door bottom sweep, it can fill gaps of .375". When used as a door gasket application, it is designed to seal up to 1/16", however it can seal up to the depth of its seal. The casing is punched with elongates slots for easy adjustment once it is installed.
A pile brush is a soft brush, similar to a baby brush bristles. For a more rigid brush, see our Pemko #309N with Nylon Brush.

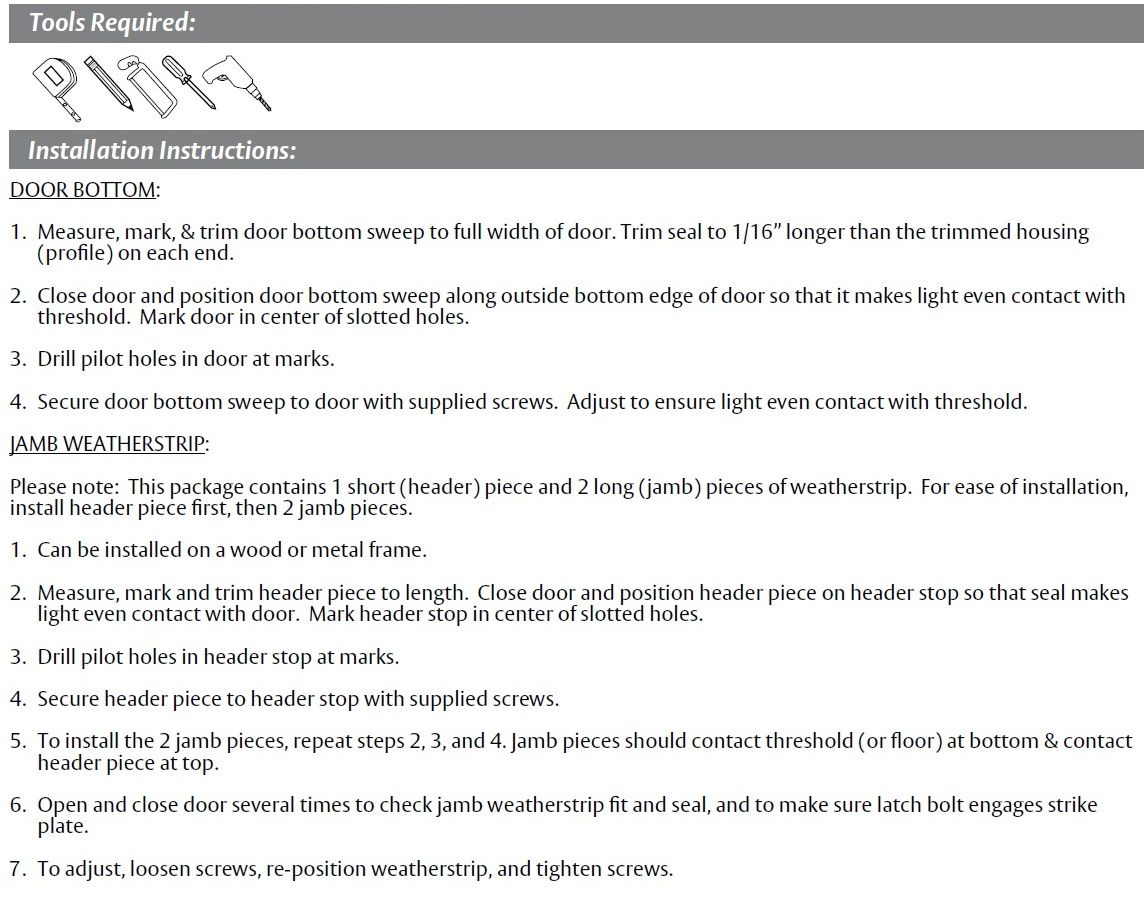

Installation instructions and screws provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
 Click to view our Full Warranty Policy.
Click here to see more Pemko Door Sweeps.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN309
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Door TypeWooden Door, Metal Door
-
Seal TypeSoft Brush Seal
-
MountingSurface Mounted
-

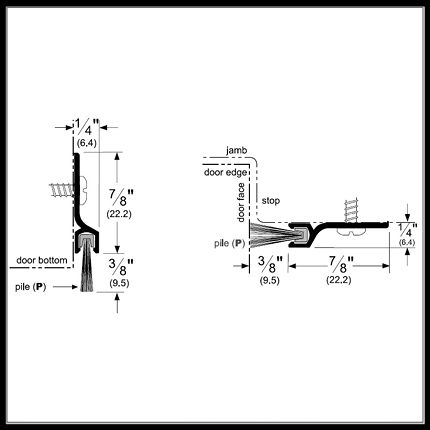

- Dimensions
-
Seal Height3/8" Height
-
Total Height1-2/8" Height
-
Additional DimensionsDoor seal is 1/4" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-

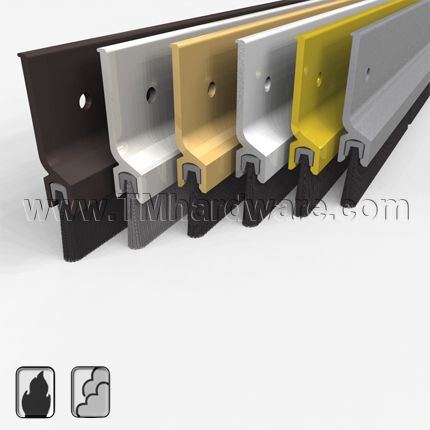

- Finishes
-
FinishMill Finish Aluminum (US27), Clear Anodized Aluminum (US28), Oil Rubbed Bronze, Equiv. (10BE), White Suede Powder Coat, Black Suede Powder Coat
-
- Compliance Details
-
Compliance DetailsUL Classified, Fire Rated, Smoke Rated
-
Warranty5 Year Limited Warranty
-
Click to View our Ratings Explained
- Aluminum Mill Finish - US27 / 719
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
- Bright Dip Gold Anodized Aluminum - US3 / 707
- Gold Anodized Aluminum - US4 / 688
- Satin Nickel Anodized Aluminum - US15 / 619
- Painted White Aluminum - 714
