NGP 189 Meeting Stile Set, .5" x .875" Aluminum Casing with Magnetic Seals, .25" Gap

This item has been discontinued - For similar item see our NGP 149 Meeting Stile Set, .625" x 1.125" Aluminum Casing with Magnetic Seals, .25" Gap

See tabs below for additional information

Finish
Size
Mounting

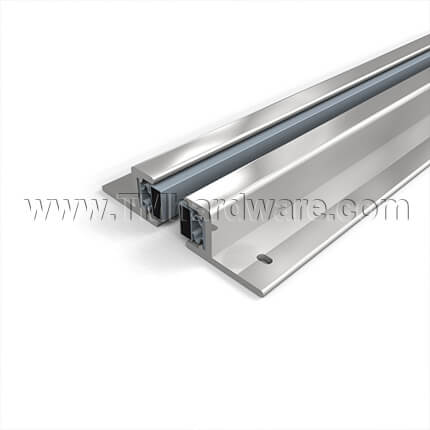

NGP 189 Magnetic Meeting Stile / Astragal Set is applied to the face of a double door to seal gaps up to .25". It is fitted with a magnetic seal encased in gray vinyl. Casing is made of aluminum and sized .5" x .875". Its applied to the face of a double active double doors to seal drafts and light.

Door Compatibility: Designed for use on double active, wooden doors. Not recommended for use on metal doors.

Seal: Is made of thermoplastic polymer - Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer. Magnet is encased in gray vinyl and seal is moisture resistant.

Mounting Options:

Screws Only: Screw holes are slotted for easy adjustment once installed
Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

For a larger retainer see our NGP 149 Magnetic Meeting Stile Set, .625" x 1.125" Casing

- SKU
  NG189MA-SET
QuickShip
No
Manufacturer
National Guard Products
MPN
189, 2815
Mounting
Screws, Screws + Adhesive
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Thermoplastic polymer
- Door Type
  Double Active Doors
- Temperature Range
  0°F to 140°F
Dimensions
- Seal Height
  1/8"-1/4"
- Total Height
  7/8"
- Width
  1/2"
Installation
- Installation Screws
  #6 x 3/4" Stainless Steel SMS supplied
Finishes
- Finish

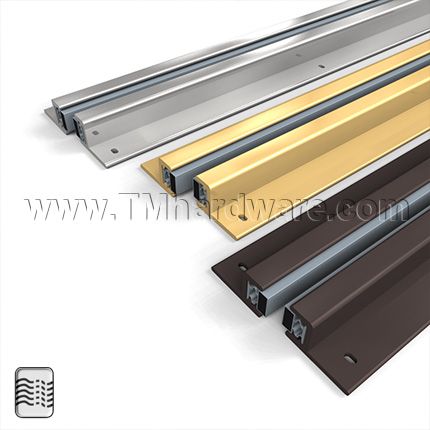

  Clear Anodized Aluminum (US28), Dark Bronze Finish
Compliance Details
- Compliance Details
  BHMA Certified, Air Infiltration Rated
- Warranty
  3 Year Limited Warranty

Click to Print Product Specs

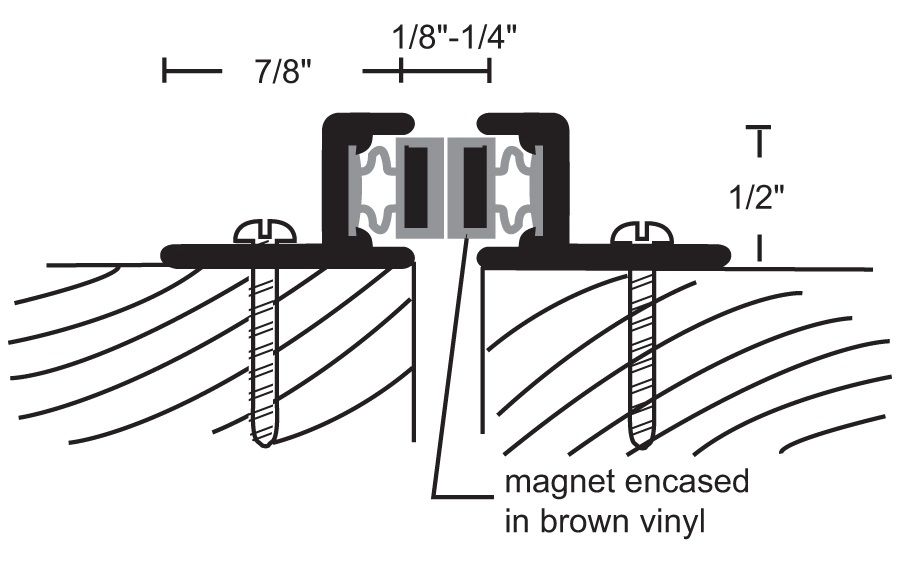

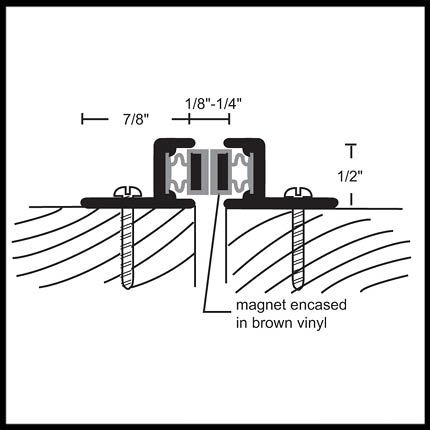

Product Specs of Magnetic Meeting Stile from NGP #189

Click to Print Intallation Guide

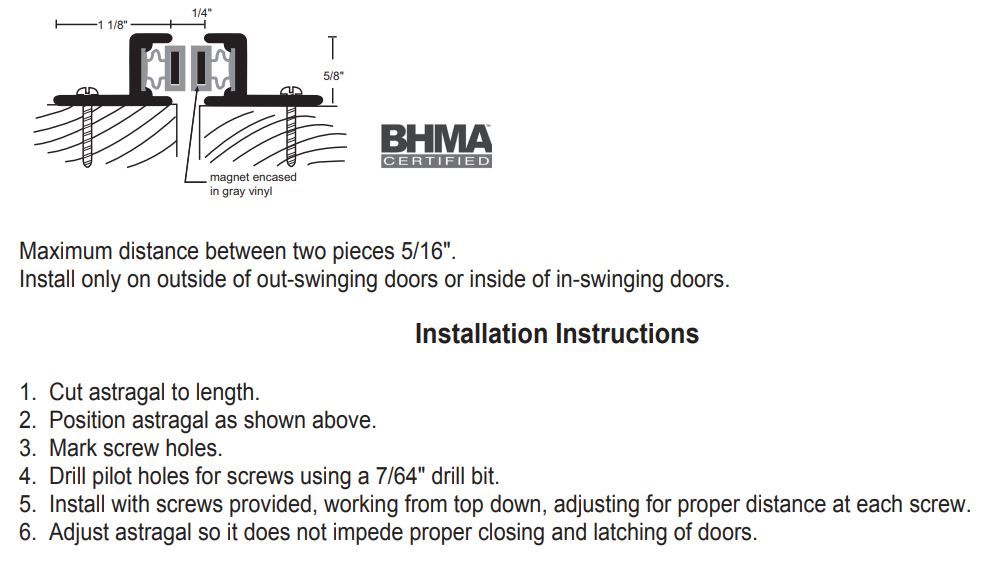

Installation Guide of Magnetic Meeting Stile from NGP #149

Compliance Details of Magnetic Meeting Stile from NGP #149

AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
