NGP 149 Meeting Stile Set, .625" x 1.125" Aluminum Casing with Magnetic Seals, .25" Gap

NGP 149 Meeting Stile Set, .625" x 1.125" Aluminum Casing with Magnetic Seals, .25" Gap
National Guard Products

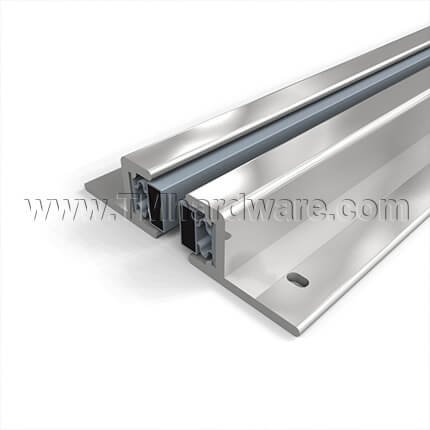

NGP 149 Magnetic Meeting Stile / Astragal Set is applied to the face of a double door to seal gaps up to .25". It is fitted with a magnetic seal encased in gray vinyl. Casing is made of aluminum and sized .625" x 1.125". Available in various anodized finishes, two mounting options and is custom cut to size.

SOLD IN SETS, PRICED PER FOOT - see tabs below for details and product specs.

See tabs below for additional information
    • SKU
      NG149MA-SET
    • Market price:$60.60
      • save 15%
    • Starting price: Price: $51.52 per set

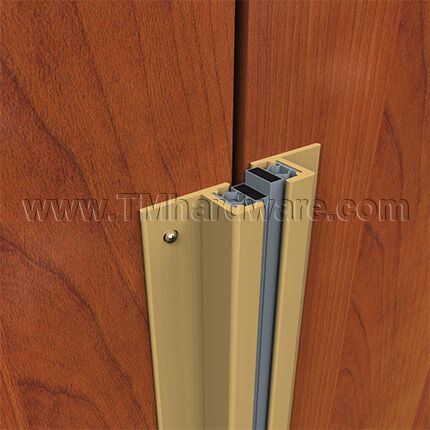

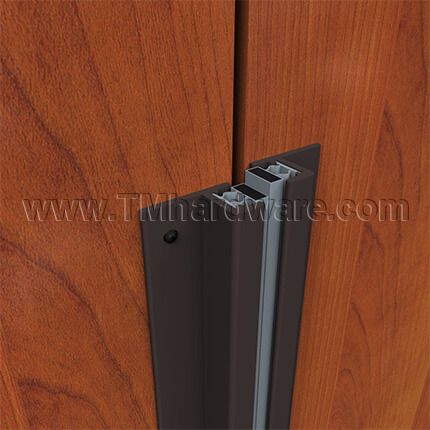

    This meeting stile is applied to the face of a double active double doors to seal drafts and light. NGP 149 Magnetic Meeting Stile / Astragal Set is applied to the face of a double door to seal gaps up to .25". It is fitted with a magnetic seal encased in gray vinyl.

    Door Compatibility: Designed for use on double active, wooden doors. Not recommended for use on metal doors.

    Seal: Is made of thermoplastic polymer - Polyvinyl Chloride (PVC) formulated with an environmentally friendly bio-based plasticizer. Magnet is encased in gray vinyl and seal is moisture resistant.

    Mounting Options:

    • Screws Only: Screw holes are slotted for easy adjustment once installed
    • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    Click here to view all our Magnetic Meeting Stiles

      • SKU
        NG149MA-SET
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      149, 2815
    • Mounting
      Screws, Screws + Adhesive
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Thermoplastic polymer
      • Door Type
        Double Active Doors
      • Temperature Range
        0°F to 140°F

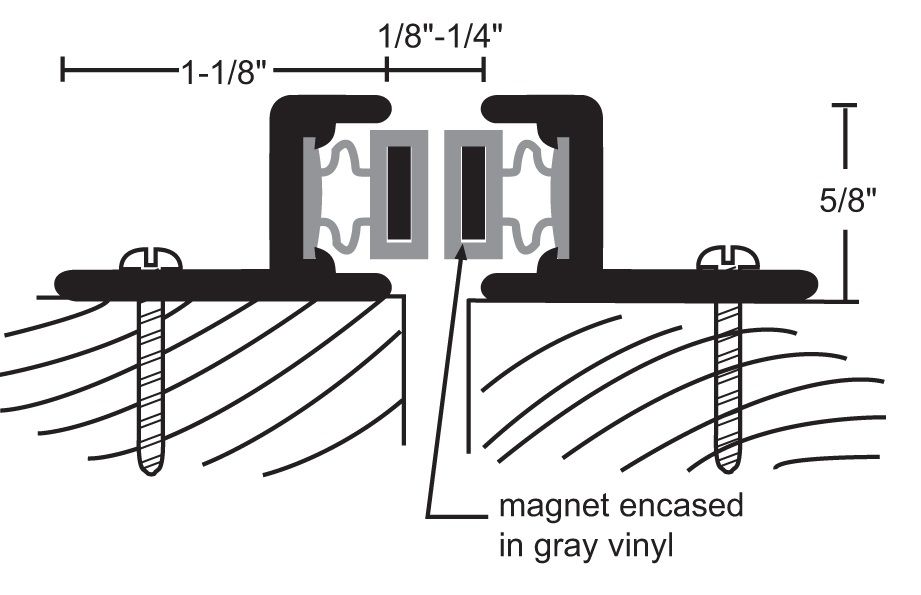

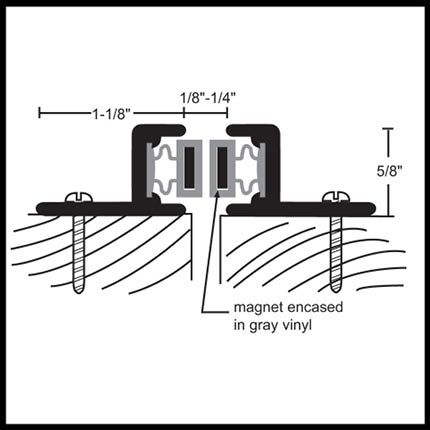

    • Dimensions
      • Seal Height
        1/8"-1/4"
      • Total Height
        1-1/18"
      • Width
        5/8"
    • Installation
      • Installation Screws
        #6 x 3/4" Stainless Steel SMS supplied
    • Finishes
      • Finish

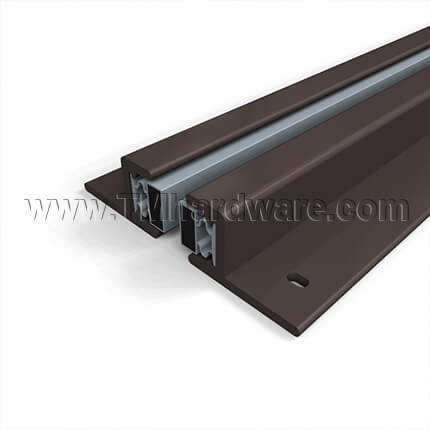

        Clear Anodized Aluminum (US28), Dark Bronze Finish, Bronze Finish
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, BHMA Certified
      • Warranty
        3 Year Limited Warranty

    Compliance Details of Magnetic Meeting Stile from NGP #149

    • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
    • ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
