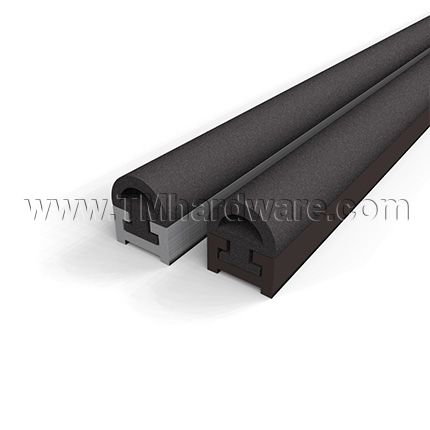

NGP 136N Door Bottom, Mortised Aluminum Track with .25" NGP-TPV Bulb Seal

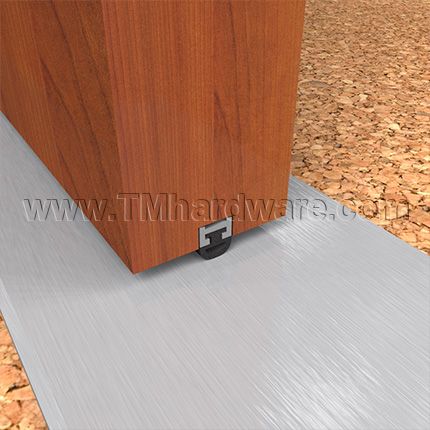

NGP 136N Door Bottom Sweep is designed to be Mortised or Underside Mounted to wooden doors. It is comprised of an aluminum track which is fitted with a .25" solid NGP-TPV Bulb seal, which prevents infiltration of water, drafts, dust and light. Available in two finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Length

Quantity

Add to compare

Seals: Contains a .25" Black NGP-TPV Seal. It has very good abrasion resistance, tensile strength and memory.

Recommended Mortise Channel: .4375" wide x desired depth

Installation: Installation guide provided. Drilled for easy installation and supplied with #2 SMS.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

This product can also be applied as a meeting stile see our NGP 136N Meeting Stile, Mortised Aluminum Casing with .25" NGP-TPV Bule Seal

- SKU
  NG-136N
QuickShip
No
Manufacturer
National Guard Products
MPN
136N
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -80°F thru 275°F
- Door Type
  Wooden Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Underside Mount, Fully Mortised

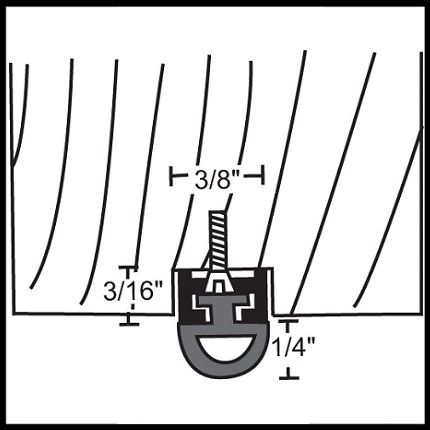

Dimensions
- Seal Height
  1/4" Height
- Total Height
  7/16" Height
- Additional Dimensions
  Door seal is 3/8" thick
- Length
  Custom Cut to Size
Installation
- Installation Screws
  #2 SMS provided
Finishes
- Finish

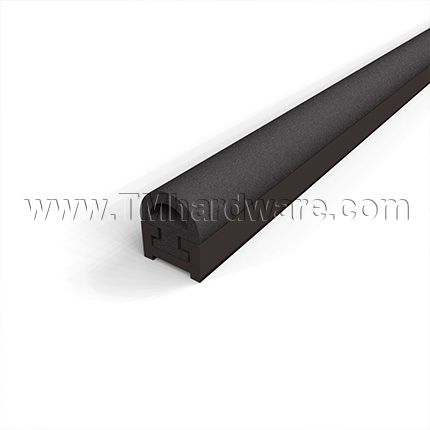

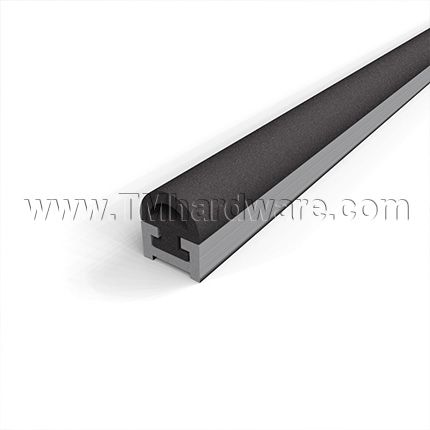

  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  Air Infiltration Rated, BHMA Certified
- ANSI Designation
  R3B416
- Warranty
  3 Year Limited Warranty

Click to Print

Click to Print Installation Guide

Mill Aluminum complies with ANSI/BHMA codes US27 / 719
