NGP 141N Door Gasket, 1.0625" Aluminum Casing with Spring Adjustable .3125" Neoprene Seal

NGP 141N Door Gasket is fitted with a spring adjustable .3125" neoprene seal, which adjusts automatically to the door movement. Casing measures 1.0625" in height. Available in two anodized finishes and length is custom cut to size.

See full product details and specs in the tabs below.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      NG141NA
    • Market price:$24.80
      • save 15%
    • Starting price: Price: $21.08 per foot


    NGP 141N Door Gasket Key Features:

    Casing Height: 1-1/16" (1.0625")

    Seal Height: 5/16" (.3125")

    Total Width: 9/16" (.5625")

    Total Height: 1-3/8" (1.375")

    Retainer Material: Aluminum alloy 6063, T5 temper.

    Seal Material: Black Neoprene. Seal has excellent abrasion resistance, tensile strenght, memory, and resistance to ozone, sunlight and aging.

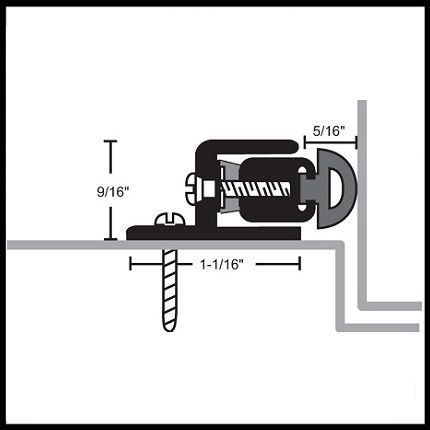

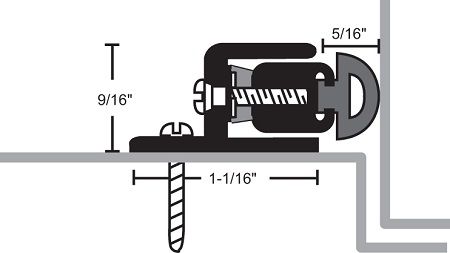

    Spring Adjustable: An adjustable door gasketing is designed to give a consistent seal at all times. When clearance increases due to natural shifting or improper installation, the spring loaded seal will adjust automatically. It can also be manually adjusted with a few turns of a screwdriver. Seal has an adjustable range of .3125” (5/16”) past the illustrated position in Product Specs.

    Compliance Details: UL Listed; ANSI/BHMA Certified; Air Infiltration Rated; Smoke and Draft Control certified; Positive Pressure Rated.

    Temperature Range: -20°F to 200°F

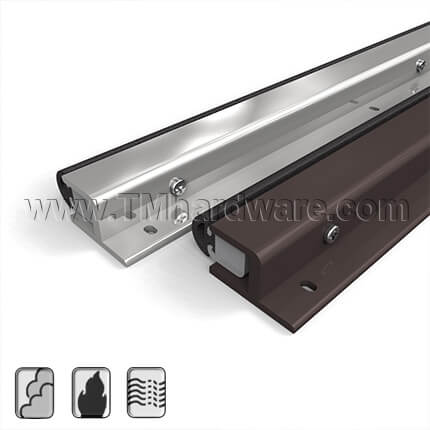

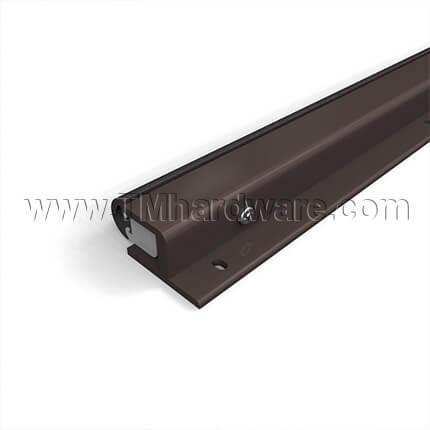

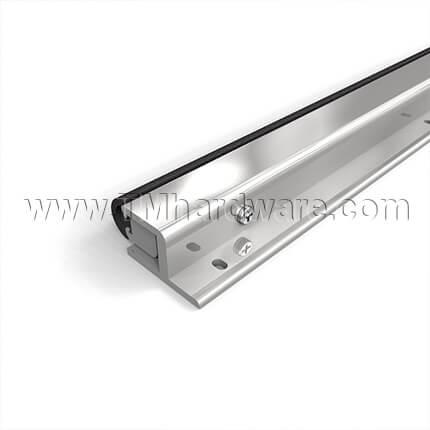

    Finishes: Anodized Aluminum, Dark Bronze Anodized

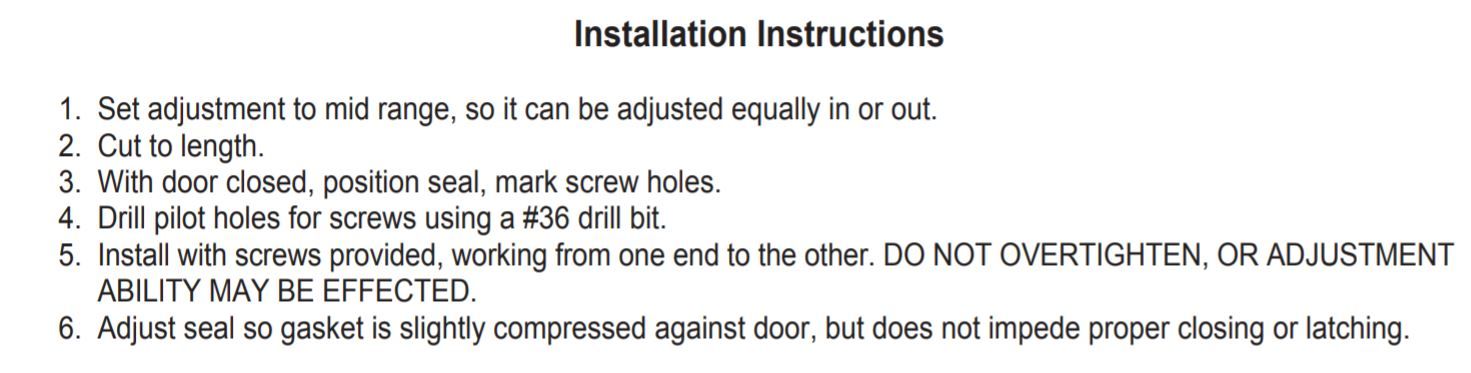

    InstallationInstallation Guide and #6 x 3/4" or #6 x 1-1/2" stainless steel sheet metal screws furnished. Adjustment screws on 10" centers allow adjustment without re-positioning mounting location.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.


    This product has a 3 year guarantee against defects in material and workmanship.

    Click here to view our Full Warranty Policy.

    For additional door gaskets, see our NGP 141S Door Gasket, 1.0625" Aluminum Casing with Spring Adjustable .3125" Silicone Seal

      • SKU
        NG141NA
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      141N
    • Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104"
    • Mounting
      Screws, Screws + Adhesive
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

    Anodized Aluminum complies with ANSI/BHMA US28 / 628
