NGP 201 Door Sweep, 1.0625" Aluminum Casing with .5" Neoprene Seal

NGP 201 Door Sweep, 1.0625" Aluminum Casing with .5" Neoprene Seal

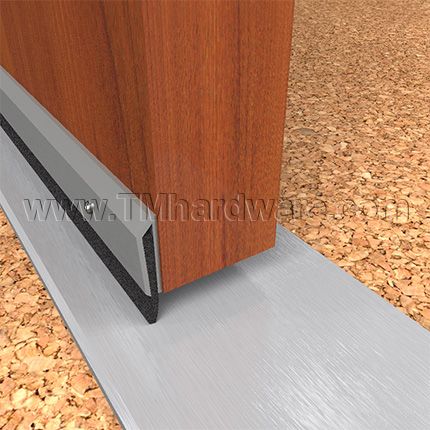

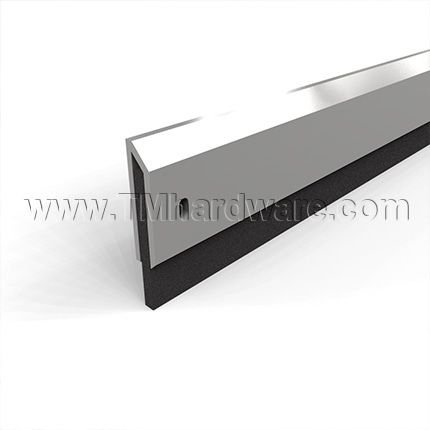

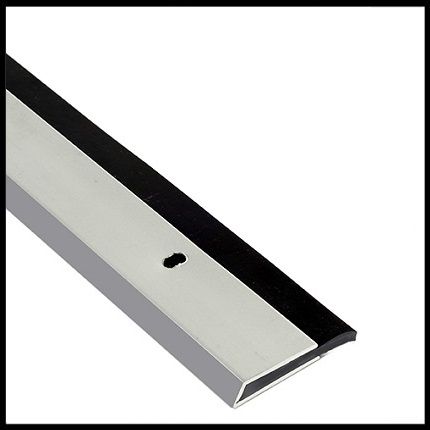

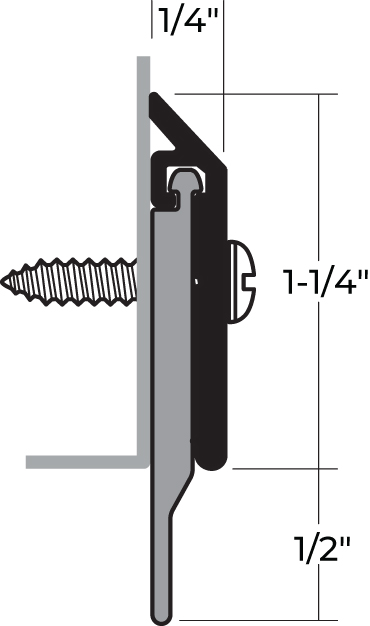

Product specs of NGP 201N Door Bottom Actual Image of NGP 201N Door Bottom NGP 201N Door Sweep in Gold Anodized Finish NGP 201N Door Sweep in Anodized Aluminum Finish surface applied to bottom ofo door
0.0

NGP 201N door sweep, with a 1.0625" sleek aluminum casing, is fitted with a .5" neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Casing comes with choice of finishes. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $6.00
Finish
Length (Inches)
Qty
Save to wishlist
Made in USA
SKU N201NA
Shipping See Shipping Tab Below
Description

NGP 201N Door Sweep Key Features:

Casing Height: 1-1/16" (1.0625" )

Seal Height: 1/2" (.5")

Total Height: 1-9/16" (1.5625")

Retainer MaterialAluminum alloy 6063, T5 temper

Seal Material: Black Neoprene. Seal has very good abrasion resistance, tensile strength, and memory.

Temperature Range: -20°F to 200°F

Finishes: Anodized Aluminum, Dark Bronze Aluminum, Gold Aluminum

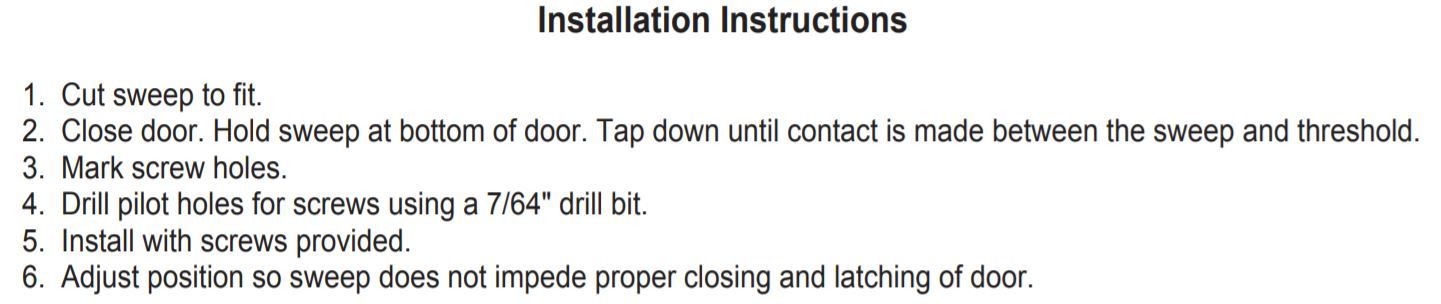

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

Compliance Details: Fire, Smoke and Air Infiltration Rated, BHMA and UL Certified, see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

See also our NGP 202N Door Bottom, 1.0625" Aluminum Casing with .625" Neoprene Seal

Product Specs
Compliance Details

The following finishes comply with ANSI/BHMA Codes

  • Anodized Aluminum US28 / 628

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
